Chime Sounds With Drivers Door Open and Key Removed From Ignition

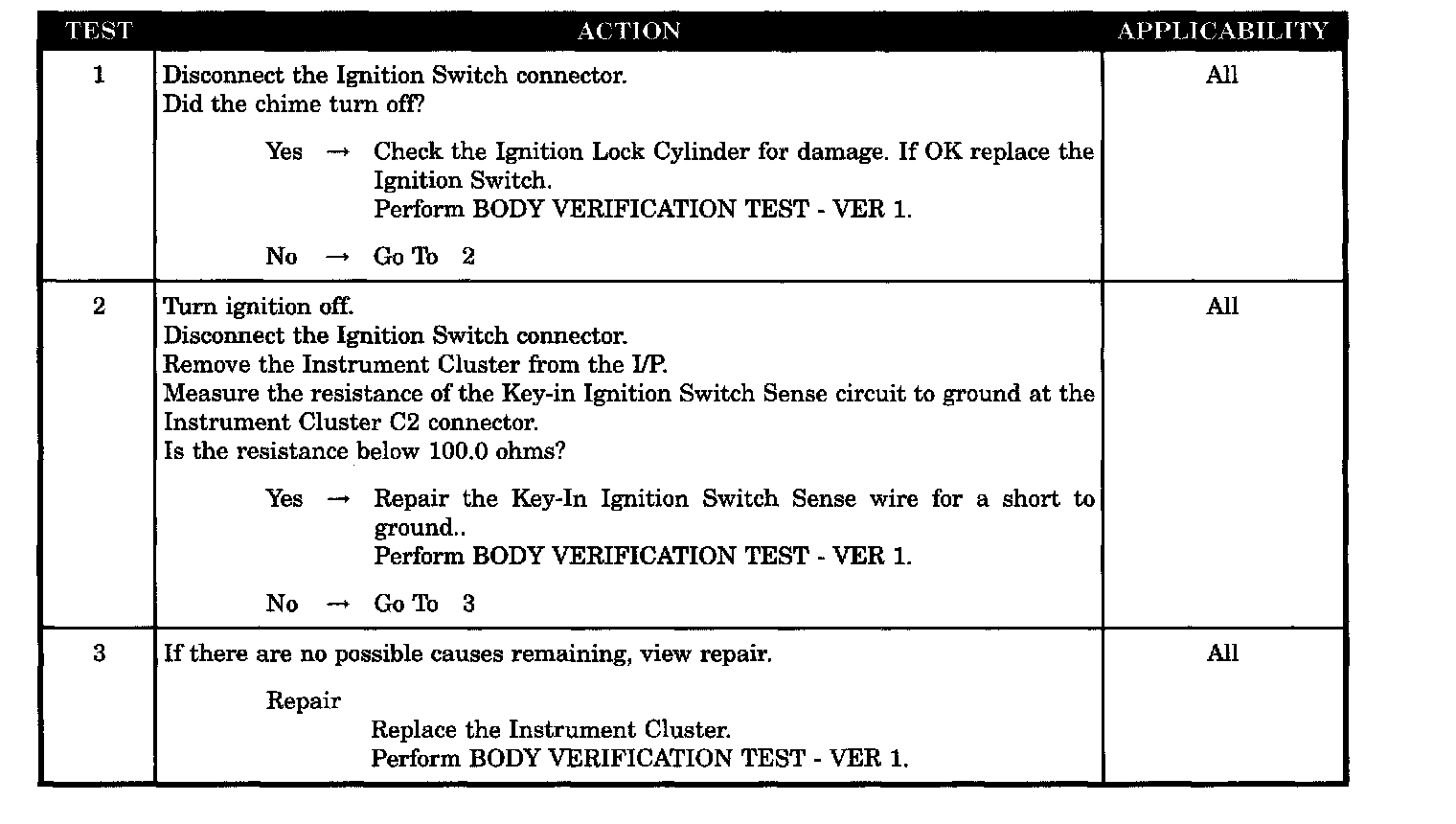

Test 1 - 3:






SYMPTOM
CHIME SOUNDS WITH DRIVER'S DOOR OPEN, KEY REMOVED

POSSIBLE CAUSES
- Key-in ignition switch shorted
- Key-in ignition SW sense short to ground
- Instrument cluster - key-in ignition shorted
