High Beam Indicator Inoperative

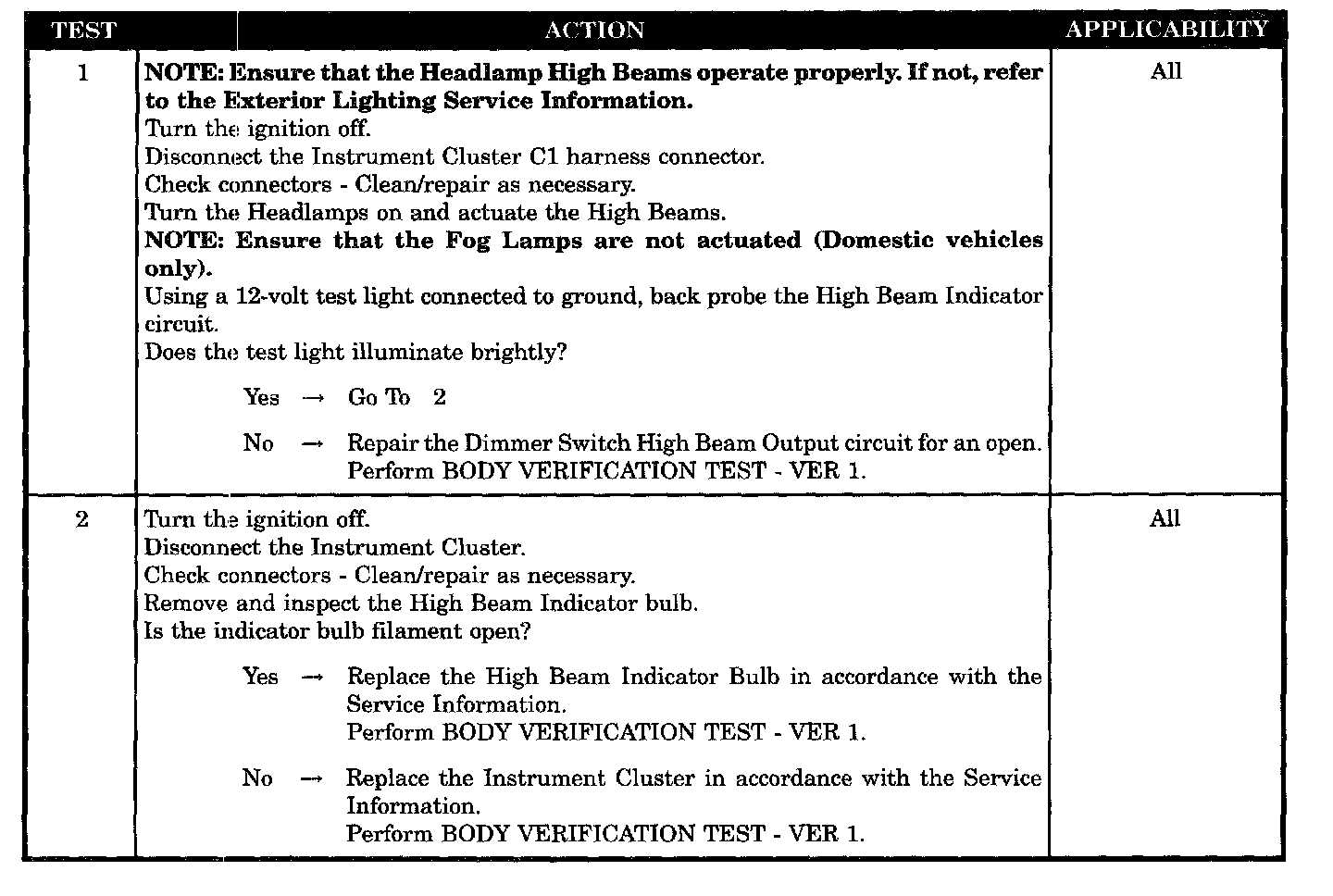

Test 1 - 2:






SYMPTOM
HIGH BEAM INDICATOR INOPERATIVE

POSSIBLE CAUSES
- High beam indicator circuit open
- Indicator bulb
- Instrument cluster
