Illuminated Entry Inoperative

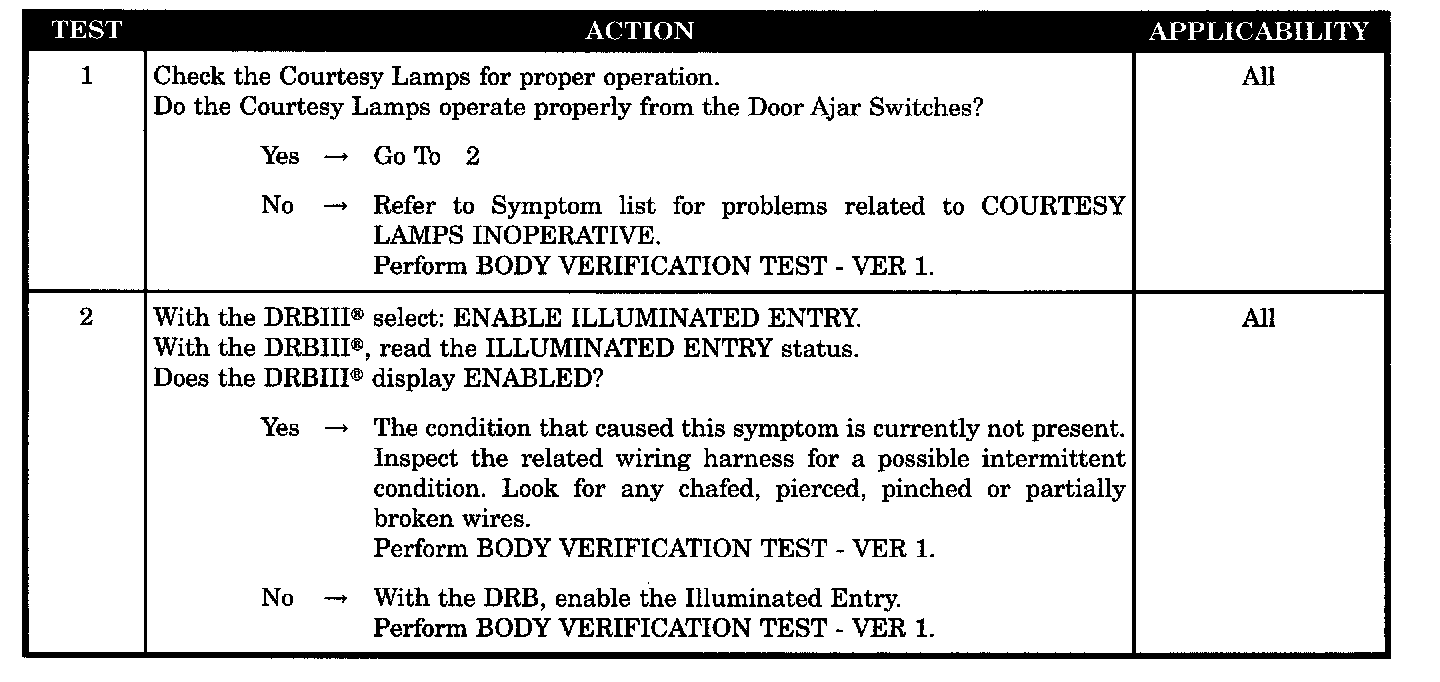

Test 1 - 2:






SYMPTOM
ILLUMINATED ENTRY INOPERATIVE

POSSIBLE CAUSES
- Courtesy lamps operational
- Intermittent condition
- Illuminated entry not enabled
