One Gauge Inoperative

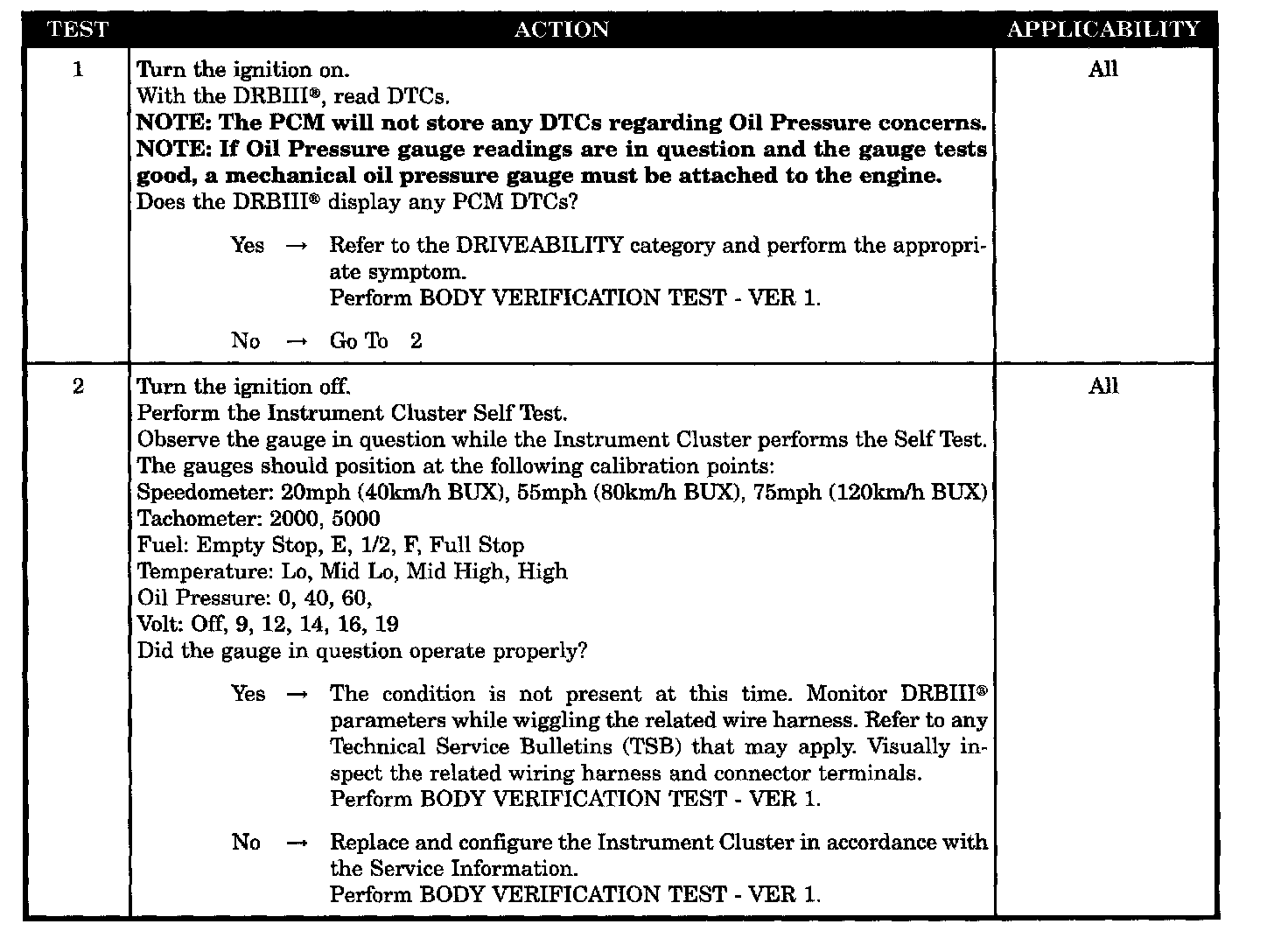

Test 1 - 2:






SYMPTOM
ONE GAUGE INOPERATIVE

POSSIBLE CAUSES
- Intermittent condition
- Powertrain control module DTC present
- Instrument cluster
