Controller Antilock Brake: Installation

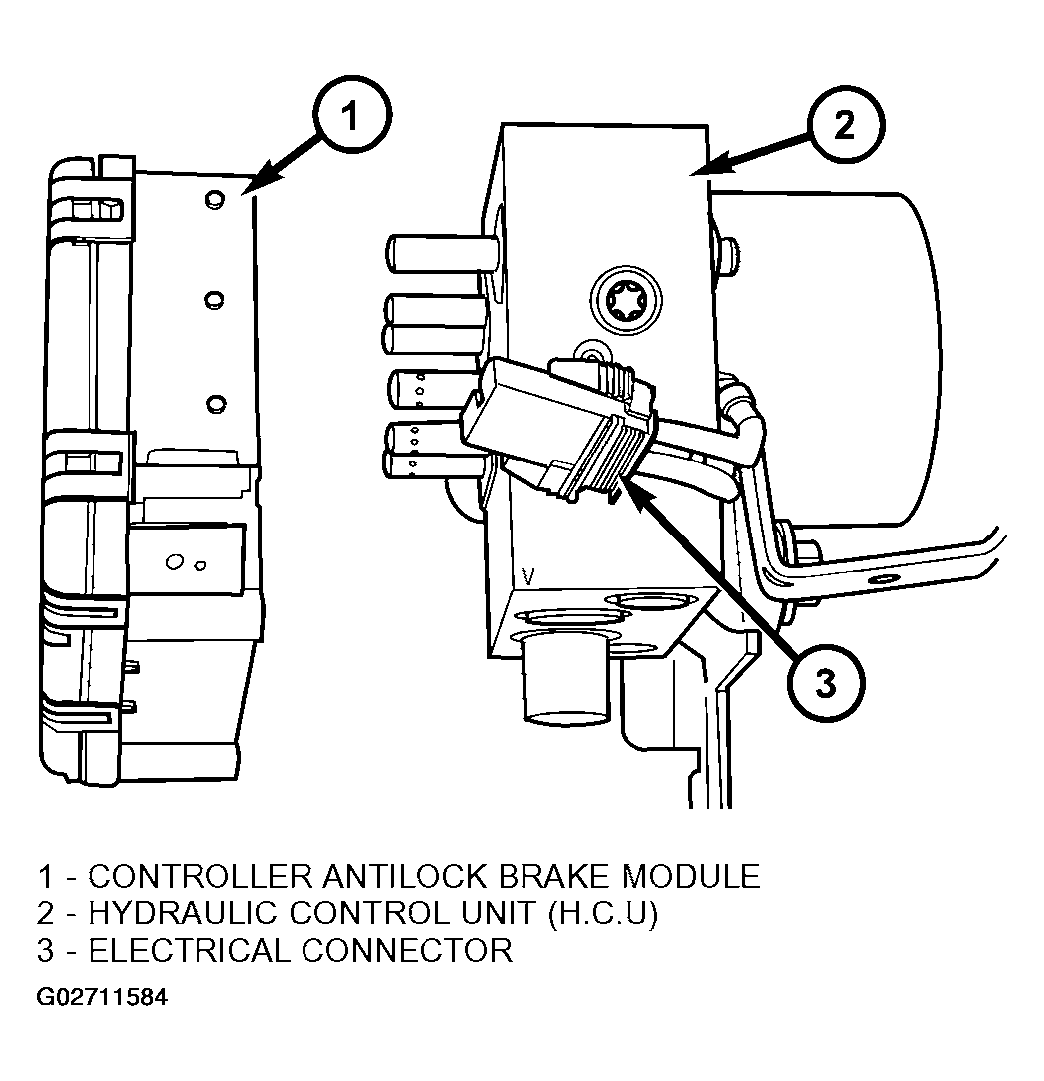

  1. Install CAB to the HCU (Figure).
  2. Install mounting bolts. Tighten to 2 N.m (16 in. lbs.).
  3. Install the pump electrical connector to the CAB (Figure).
  4. Install the wiring harness connector to the CAB and push down on the release to secure the connector.
  5. Install negative battery cable to the battery.
