Controller Anti-Lock Brake: Removal

WARNING: This page is about a different car, the 2004 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the negative battery cable from the battery.
  2. Pull up on the CAB harness connector release and remove connector.

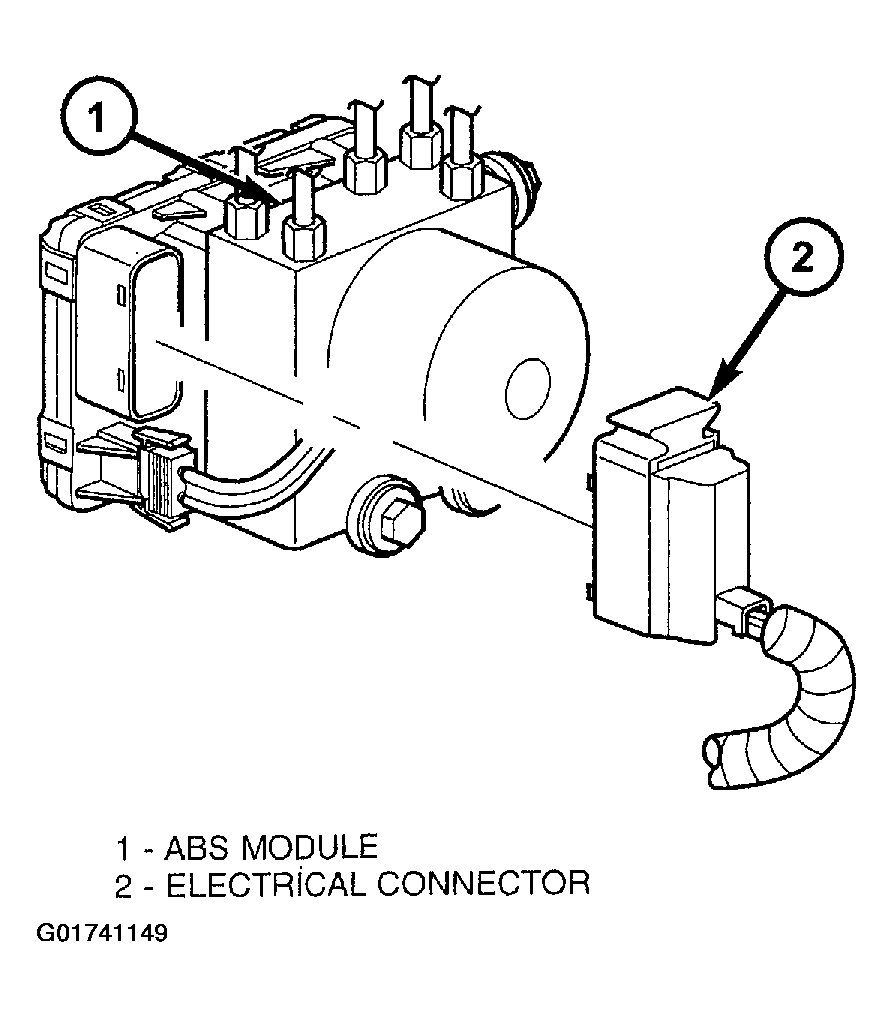

    Fig 1: Identifying Controller ABS Harness Connector Release
    G01741149Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove the pump connector from the CAB.
  4. Remove the CAB mounting bolts.
  5. Remove the CAB from the HCU.

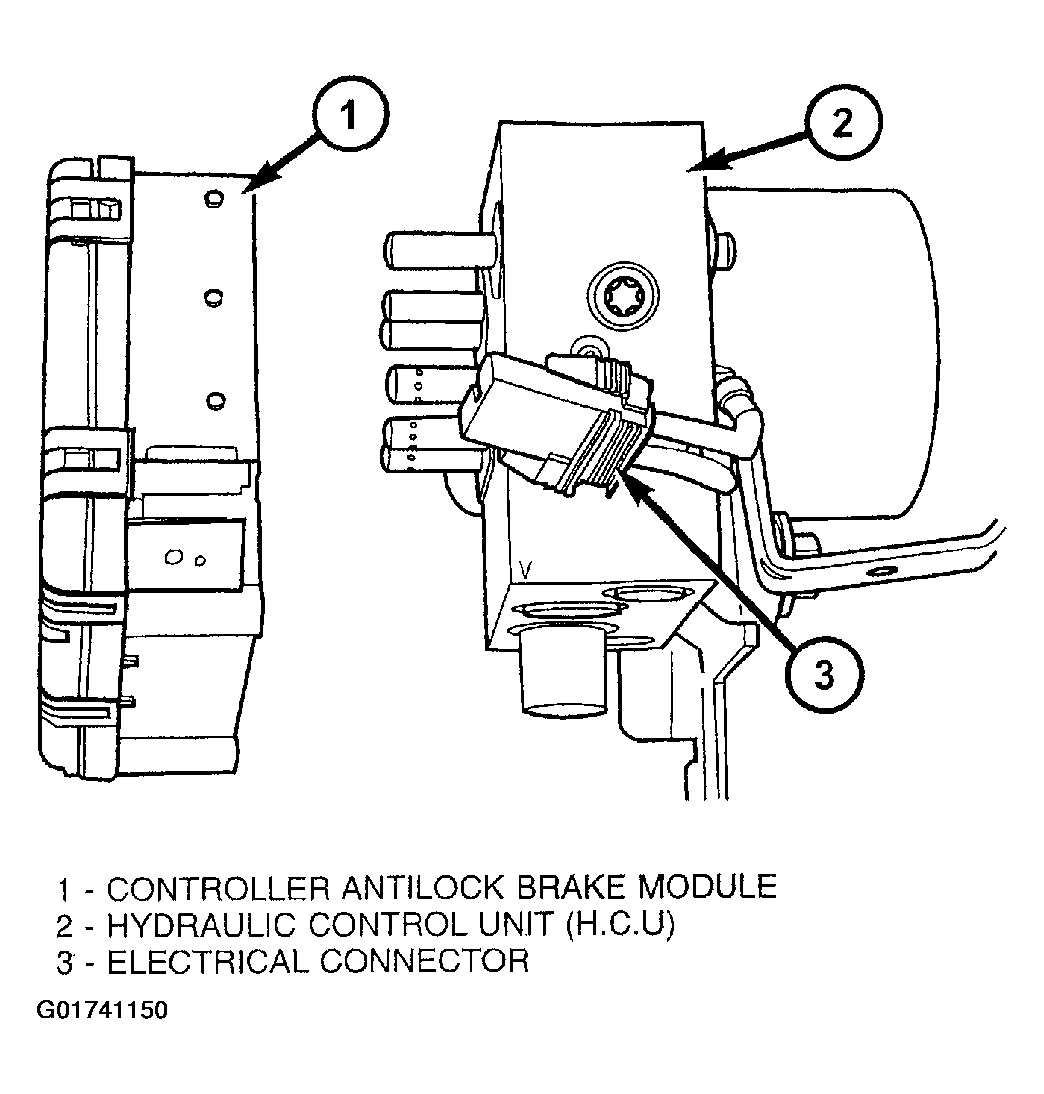

    Fig 2: Identifying Controller ABS & Hydraulic Control Unit
    G01741150Courtesy of DAIMLERCHRYSLER CORP.
