Starter Relay

  1. Remove starter relay from PDC. See STARTER RELAY .
  2. A relay in de-energized position should have continuity between terminals 87A and 30, and no continuity between terminals 87 and 30. If OK, go to Step 3. If not OK, replace faulty relay.
  3. Resistance between terminals 85 and 86 (electromagnet) should be 75 +/- 5 ohms. If OK, go to Step 4. If not OK, replace faulty relay.
  4. Connect a battery to terminals 85 and 86. There should now be continuity between terminals 30 and 87, and no continuity between terminals 87A and 30. If OK, perform Relay Circuit Test that follows. If not OK, replace faulty relay.

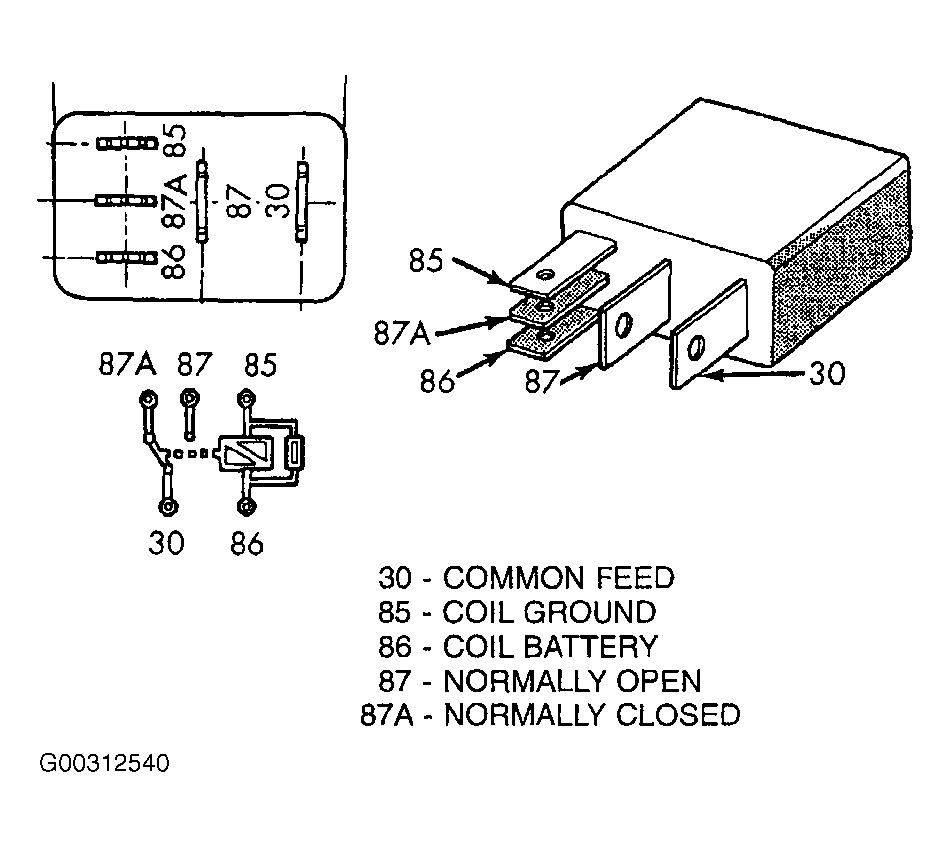

Fig 1: Starter Relay
G00312540Courtesy of CHRYSLER CORP.
