Shift Lever Error Codes

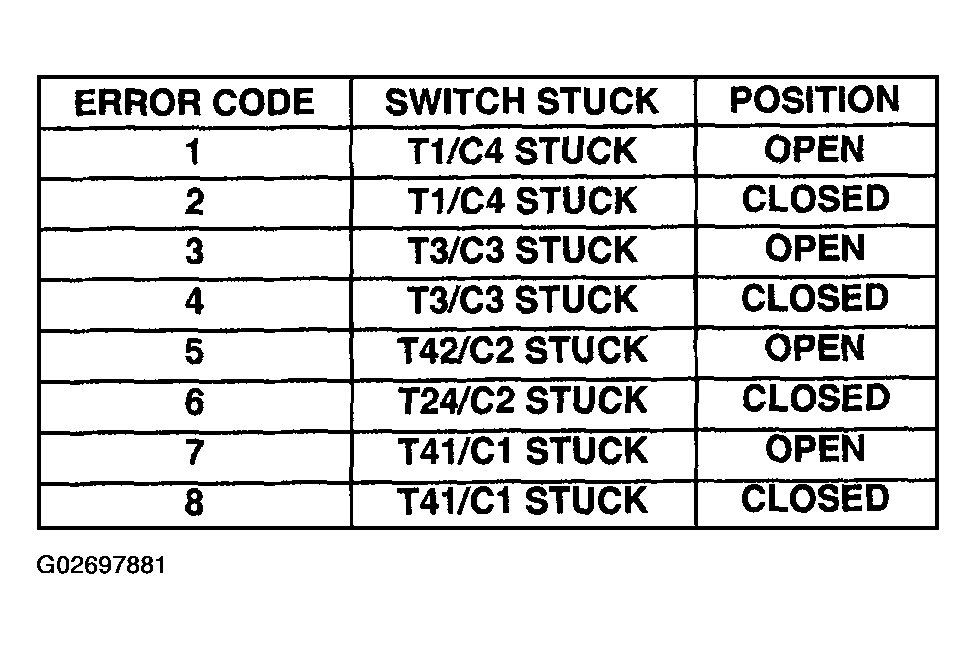

Fig 1: Shift Lever Error Codes Reported By The DRBIII®
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
