Driver Airbag Module & CLOCKSPRING

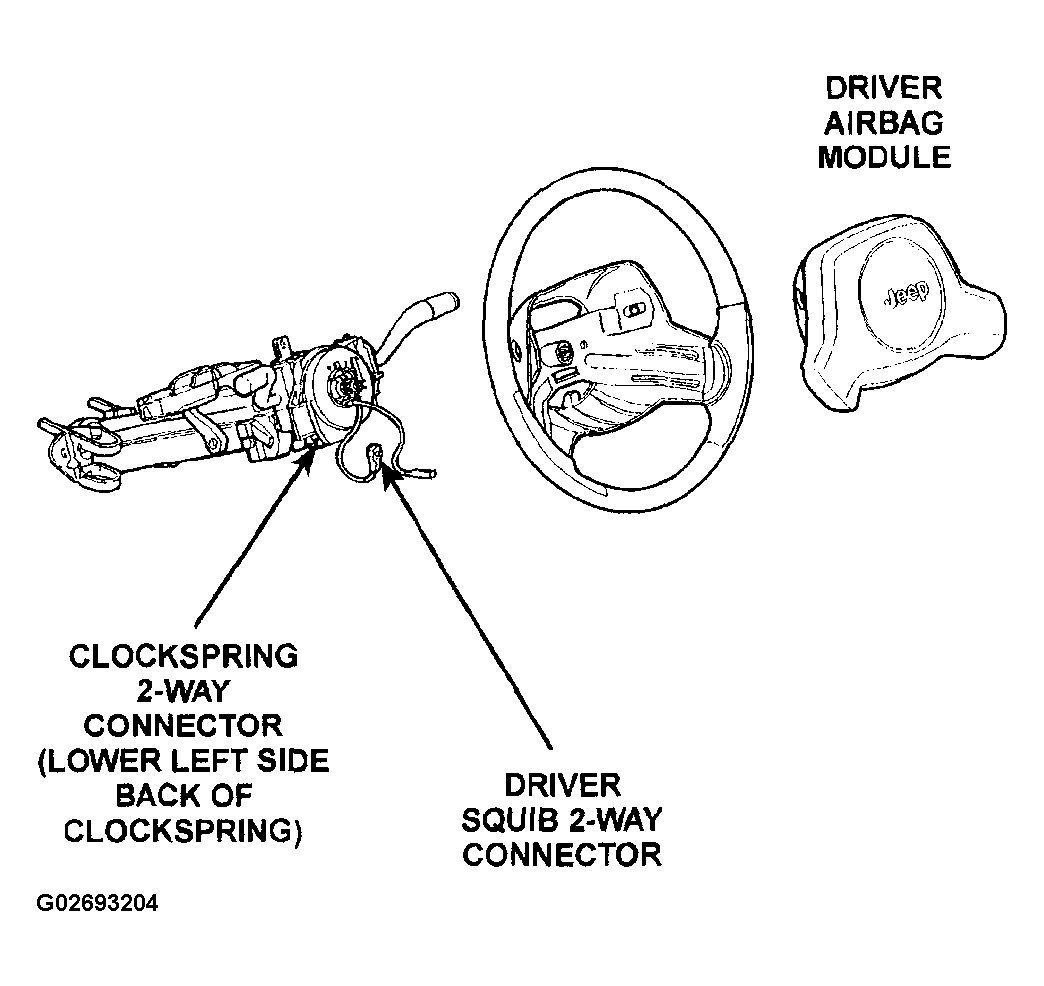

Fig 1: Identifying Driver Airbag Module And Clockspring
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
