Driver Door Courtesy Lamp Inoperative

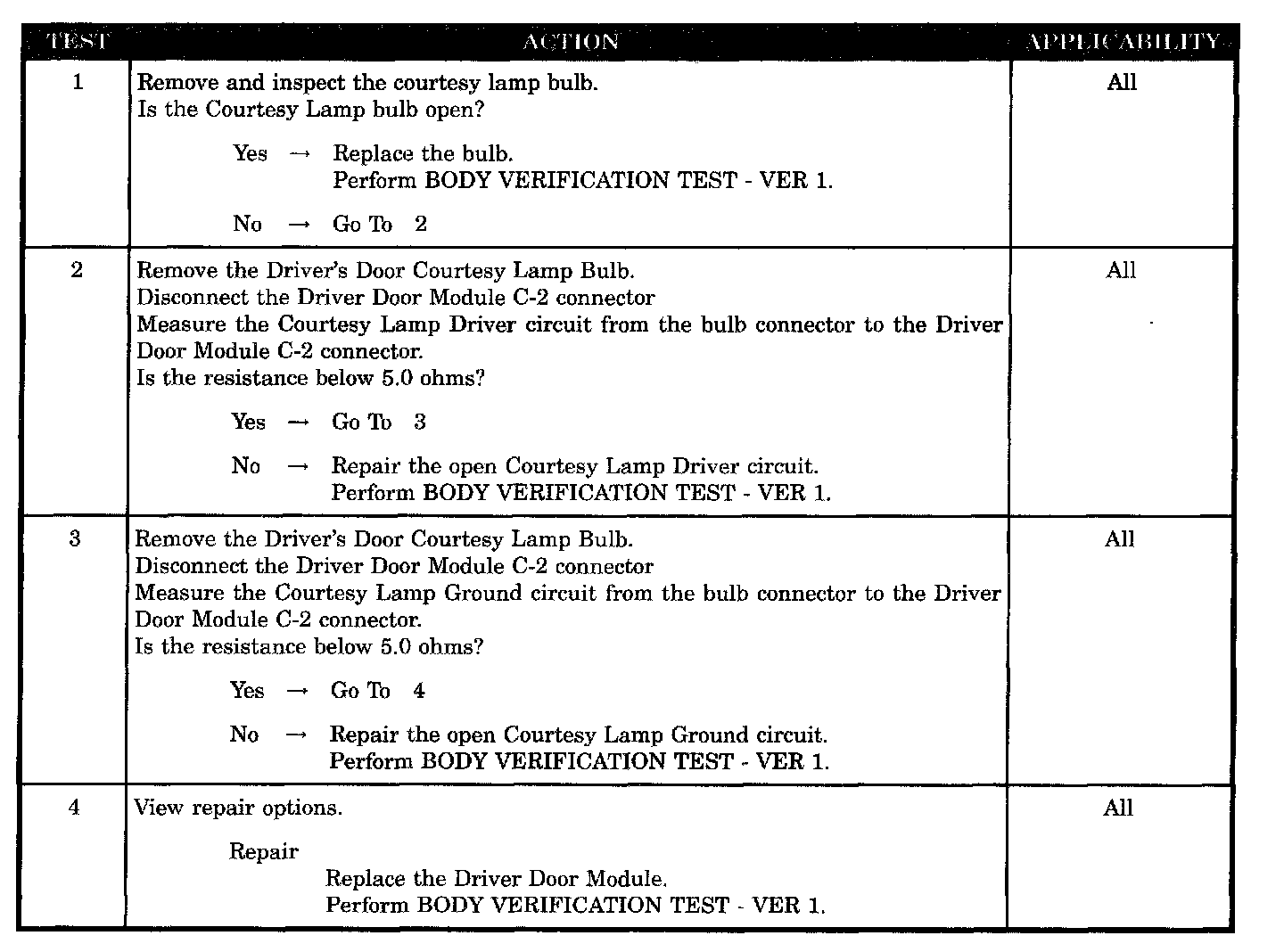

Test 1 - 4:






SYMPTOM
DRIVER DOOR COURTESY LAMP INOPERATIVE

POSSIBLE CAUSES
- Bulb
- Open courtesy lamp driver circuit
- Open courtesy lamp ground circuit
- Driver door module courtesy lamp
