Glove Box Lamp Inoperative

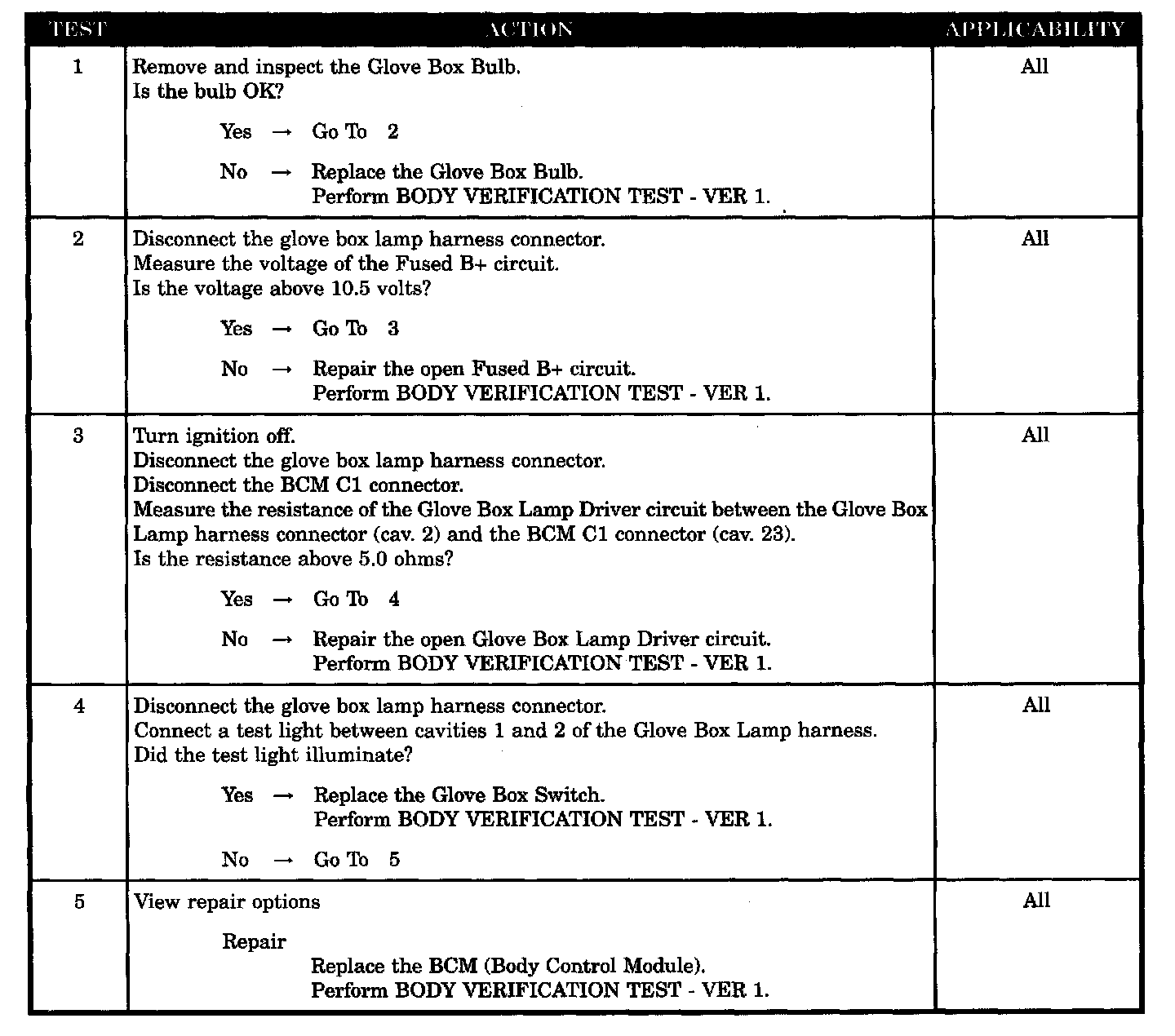

Test 1 - 5:






SYMPTOM
GLOVE BOX LAMP INOPERATIVE

POSSIBLE CAUSES
- Glove box bulb
- Open fused B+ circuit
- Glove box switch
- Open glove box lamp driver circuit
- BCM
