Driver Seat Recliner Movement Inoperative

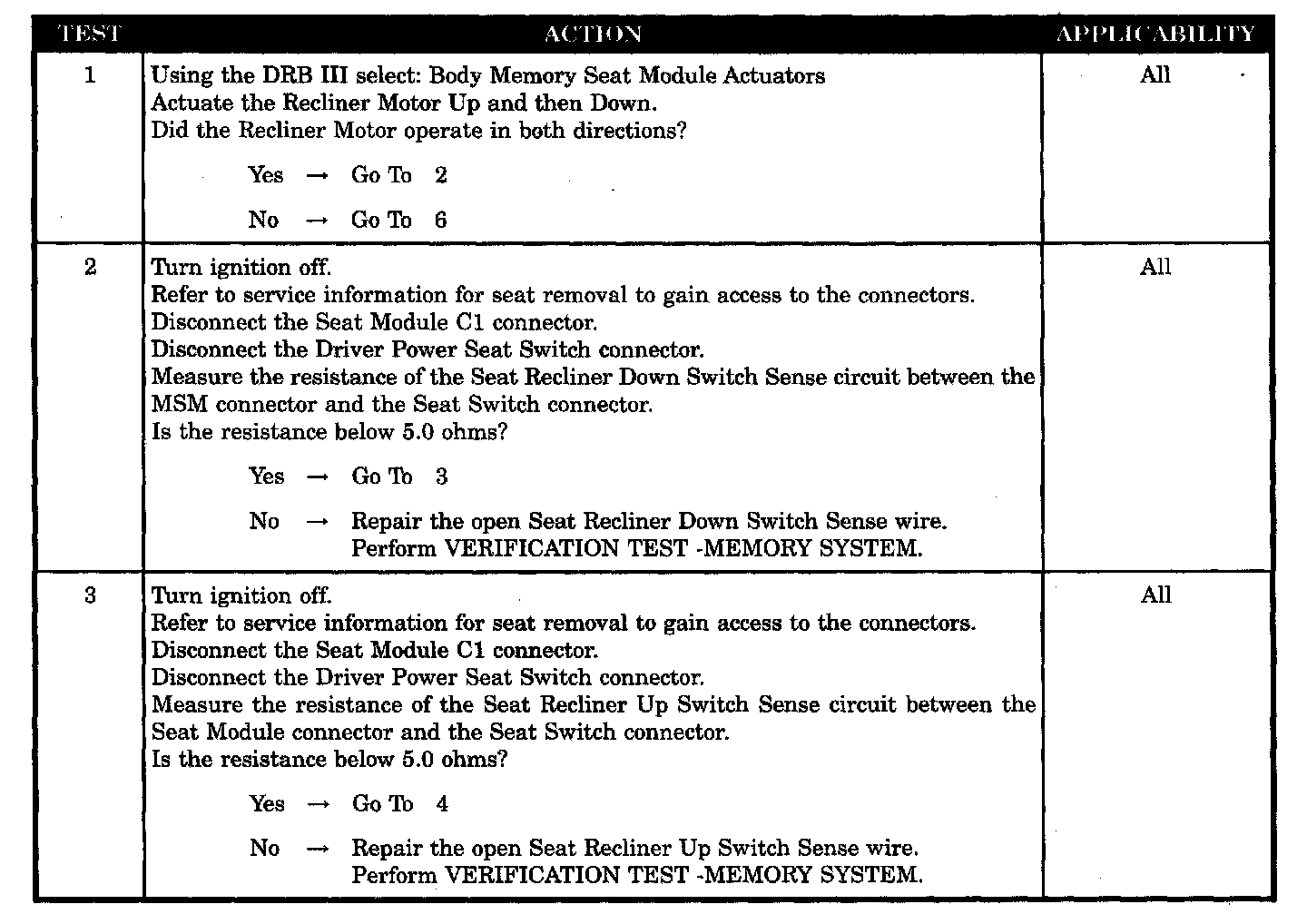

Test 1 - 3:

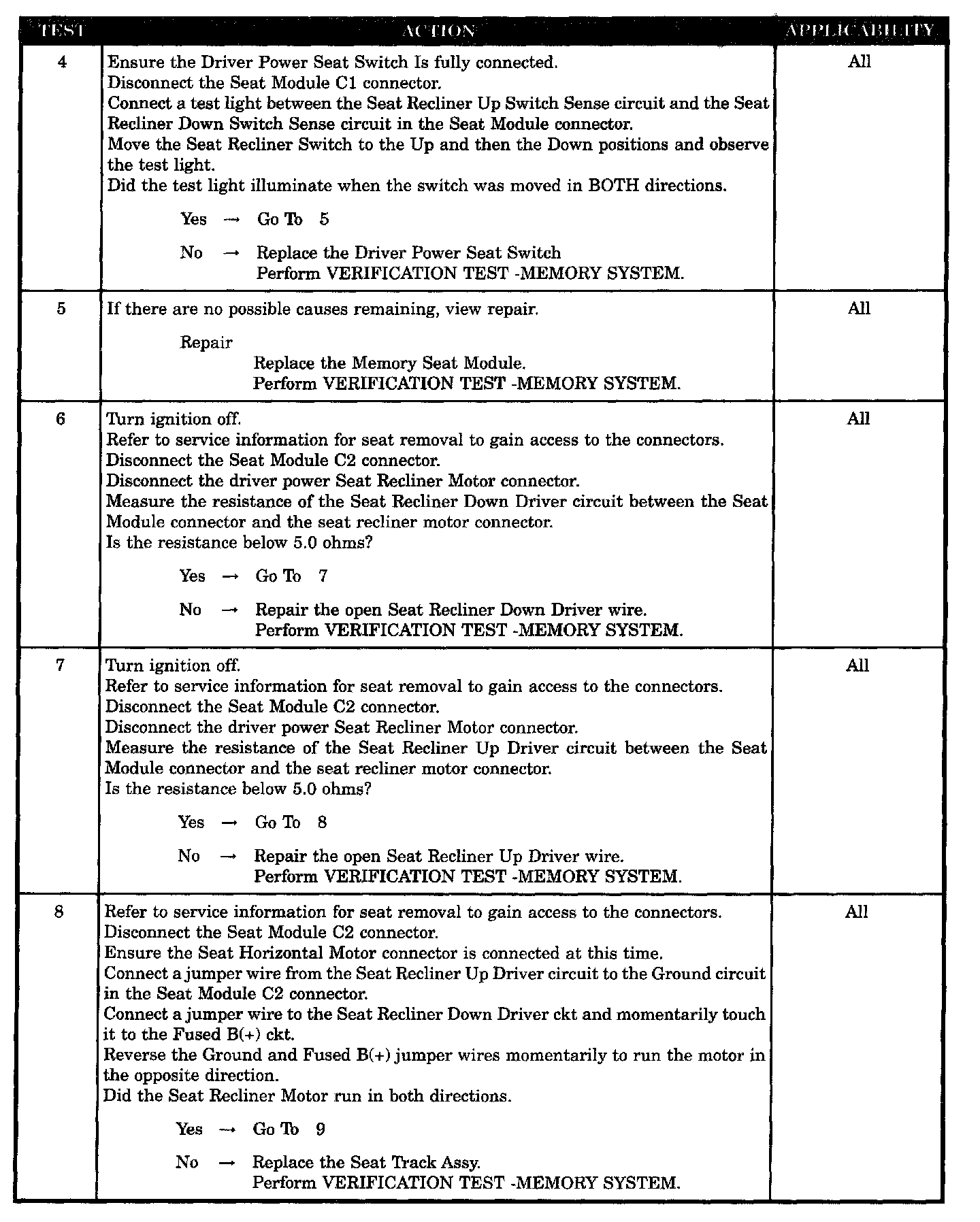

Test 4 - 8:




Test 9:






SYMPTOM
DRIVER SEAT RECLINER MOVEMENT INOPERATIVE

POSSIBLE CAUSES
- Seat recliner down driver wire open
- Seat recliner down switch sense wire open
- Seat recliner up driver wire open
- Seat recliner up switch sense wire open
- Driver power seat switch
- Driver recliner motor inoperative
- MSM Recliner motor output open
- MSM Recliner switch input open
