Speedometer Not Operating Properly

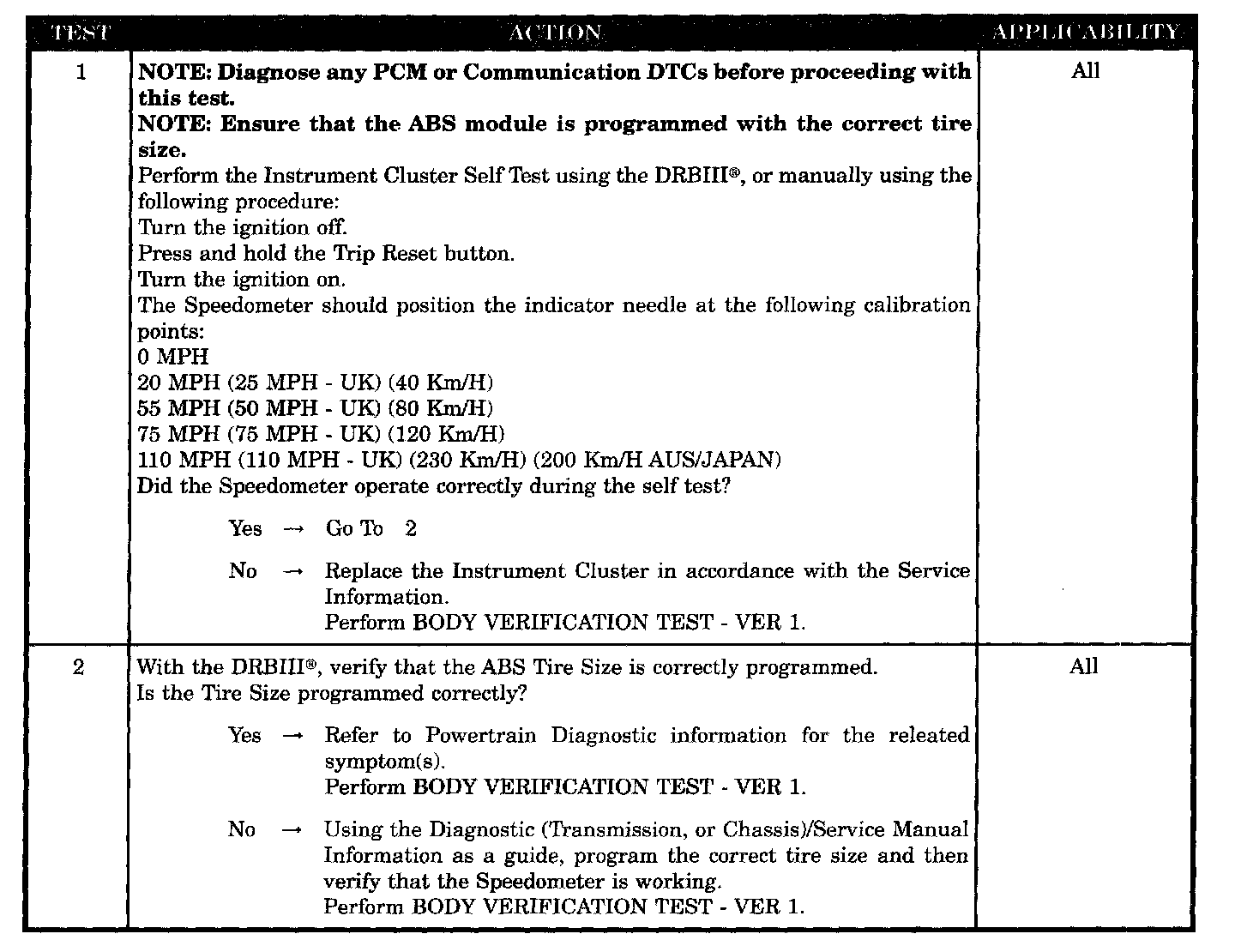

Test 1 - 2:






SYMPTOM
SPEEDOMETER NOT OPERATING PROPERLY

POSSIBLE CAUSES
- ABS tire programming
- Speedometer input - problem
- Instrument cluster
