A/C Switch Signal Not Operating Properly (MTC & AZC)

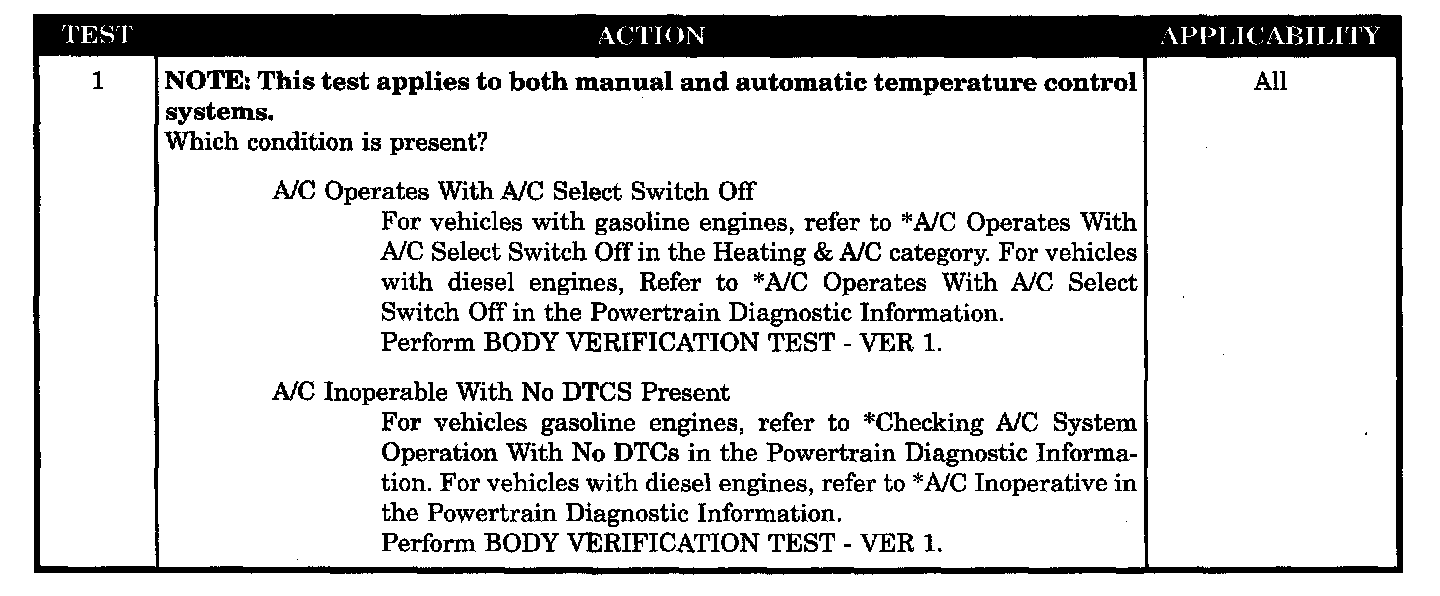

Test 1:
SYMPTOM
A/C SWITCH SIGNAL NOT OPERATING PROPERLY (MTC & AZC)
POSSIBLE CAUSES
-
A/C operates with A/C select switch off
-
A/C inoperable with no DTCs present
