Liftgate Lock Fails to Lock/Unlock

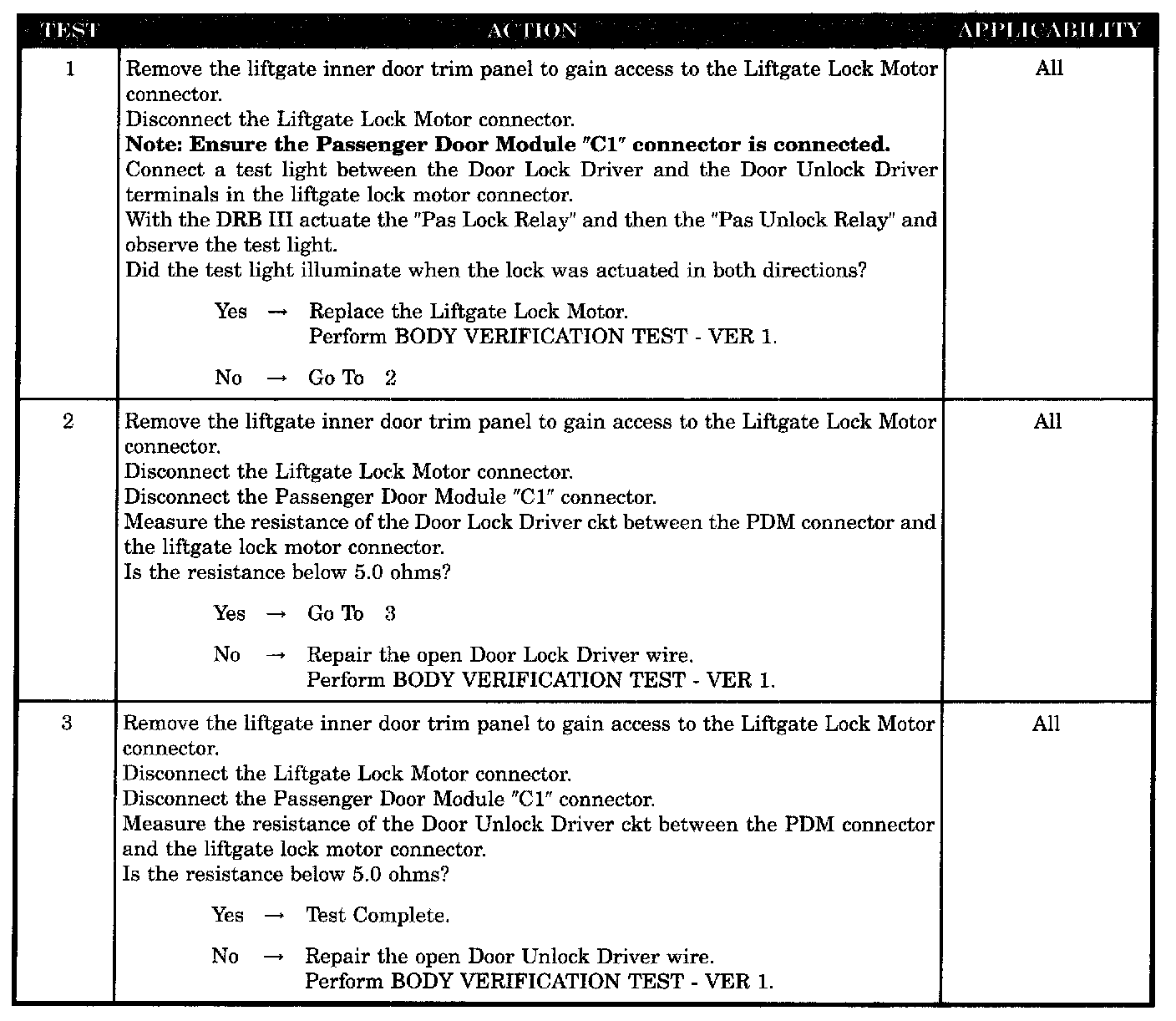

Test 1 - 3:






SYMPTOM
LIFTGATE LOCK FAILS TO LOCK/UNLOCK

POSSIBLE CAUSES
- Open liftgate lock motor
- Open door lock driver wire
- Open door unlock driver wire
