Folding Power Mirror Inoperative

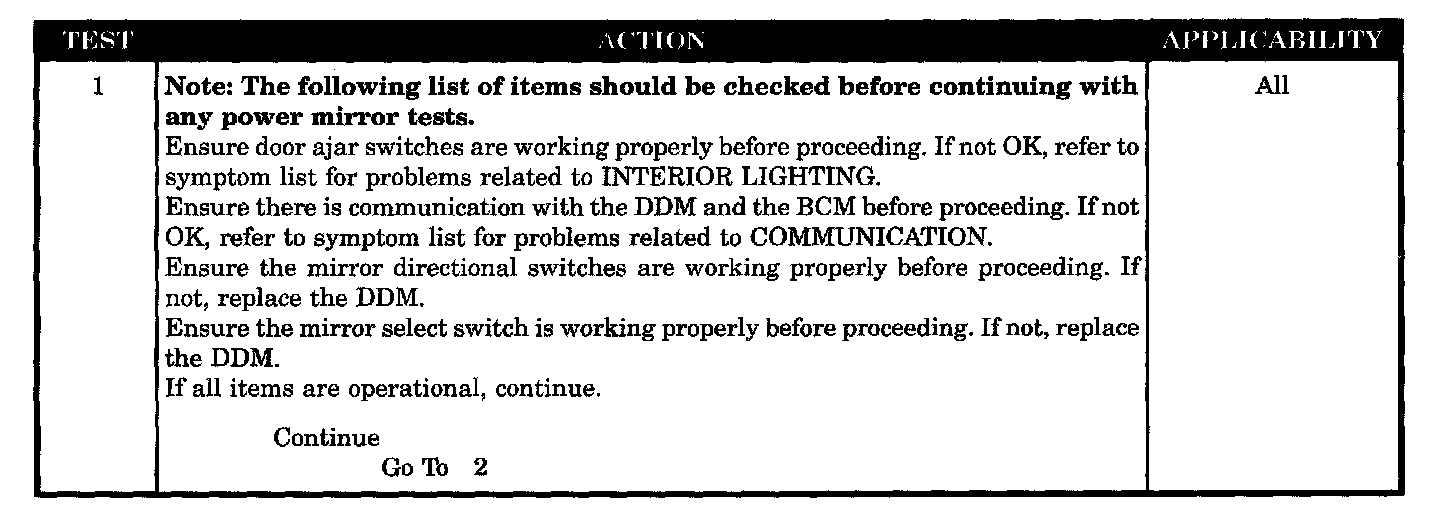

Test 1:

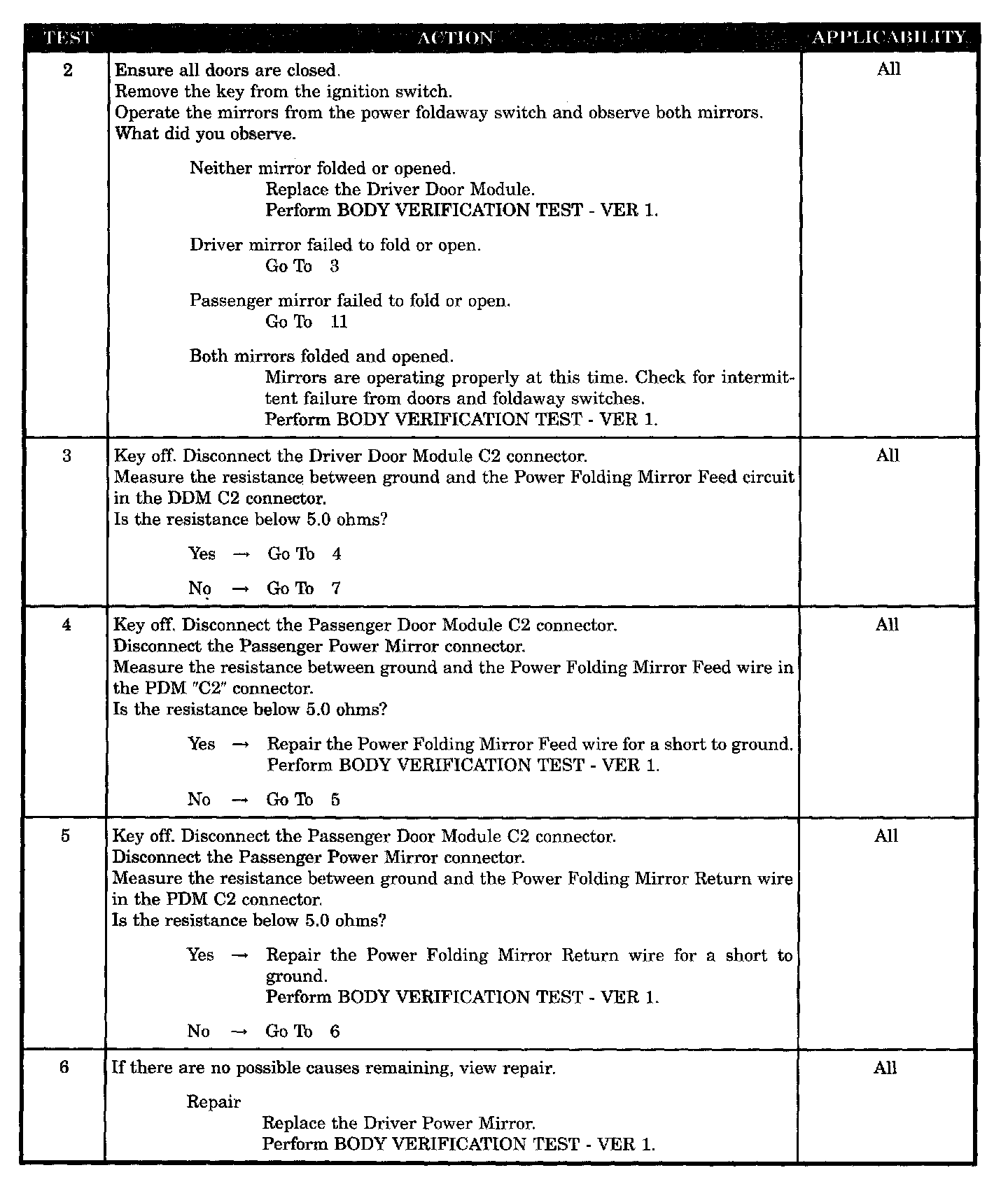

Test 2 - 6:

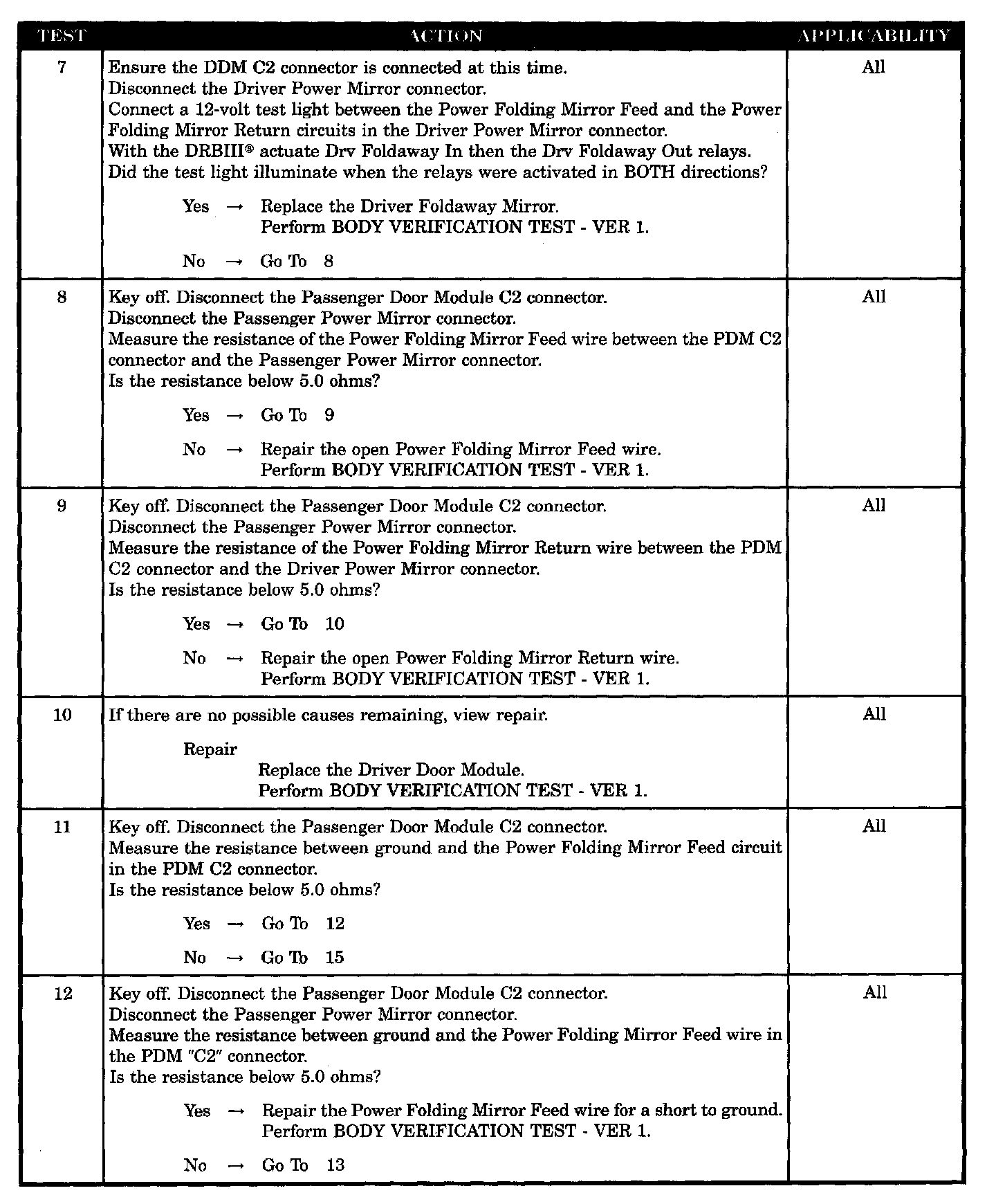

Test 7 - 12:

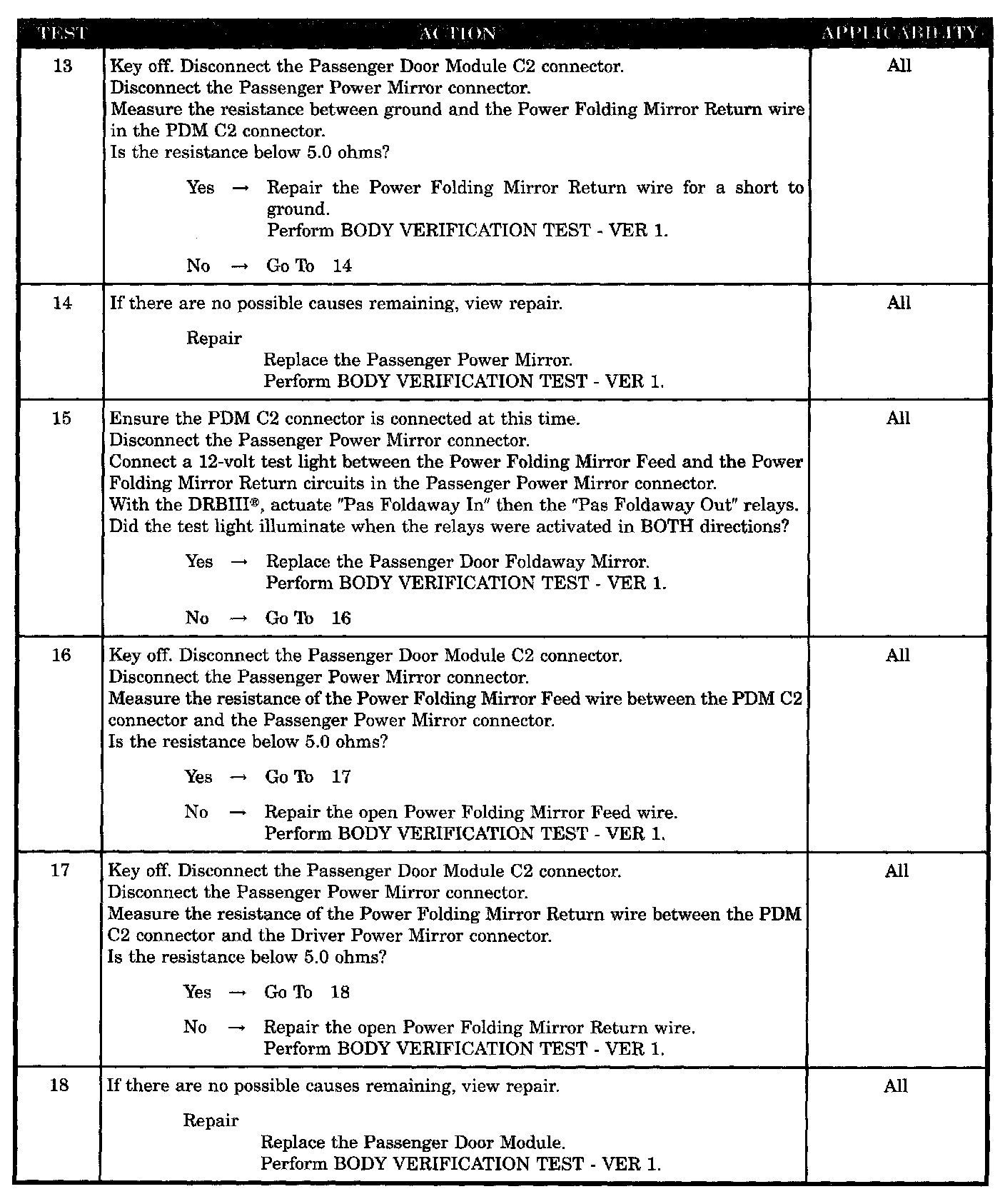

Test 13 - 18:






SYMPTOM
FOLDING POWER MIRROR INOPERATIVE

POSSIBLE CAUSES
- Folding mirror test
- Driver power mirror - folding mirror open
- Passenger foldaway mirror open
- Power folding mirror feed wire open
- Power folding mirror feed wire shorted to ground
- Power folding mirror return wire open
- Power folding mirror return wire shorted to ground
- Driver door module - folding mirror open
- Passenger door module - foldaway mirror open
- Both folding mirrors inoperative
- Driver power mirror - short to ground
- Passenger power mirror - short to ground
