Low Fuel Indicator Inoperative

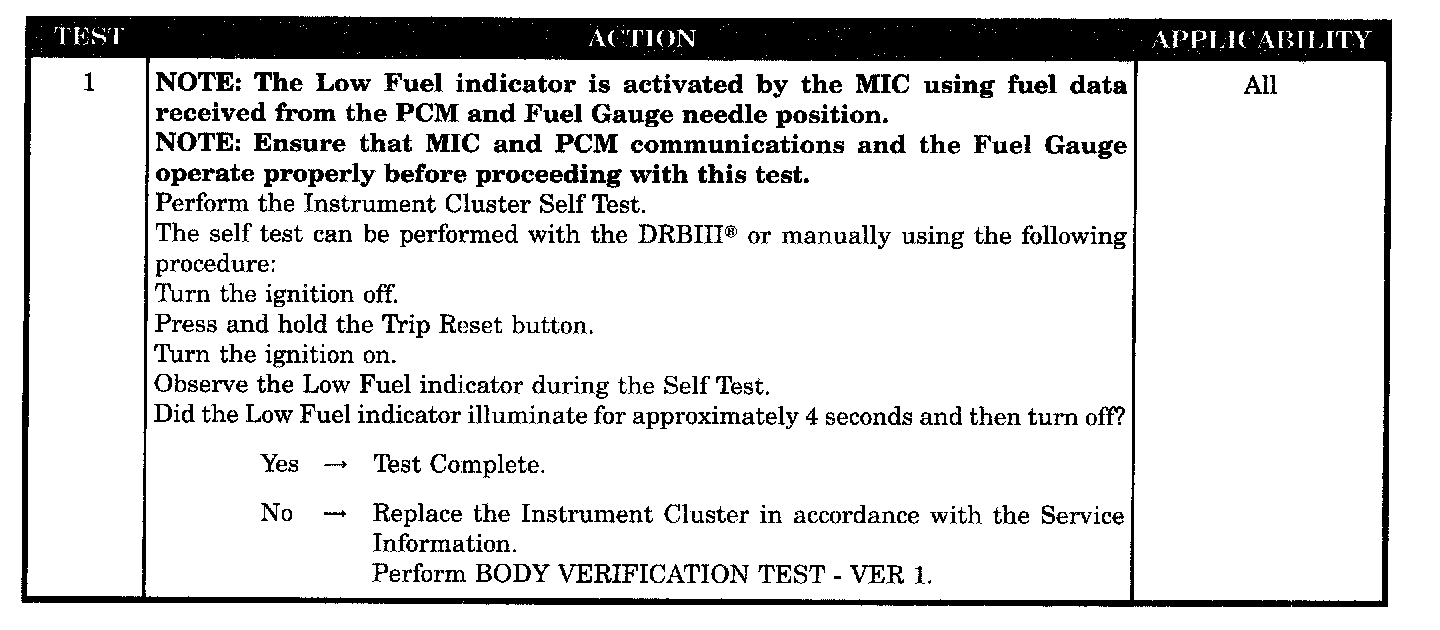

Test 1:
SYMPTOM
LOW FUEL INDICATOR INOPERATIVE
POSSIBLE CAUSES
-
Instrument cluster
