Connector Locations

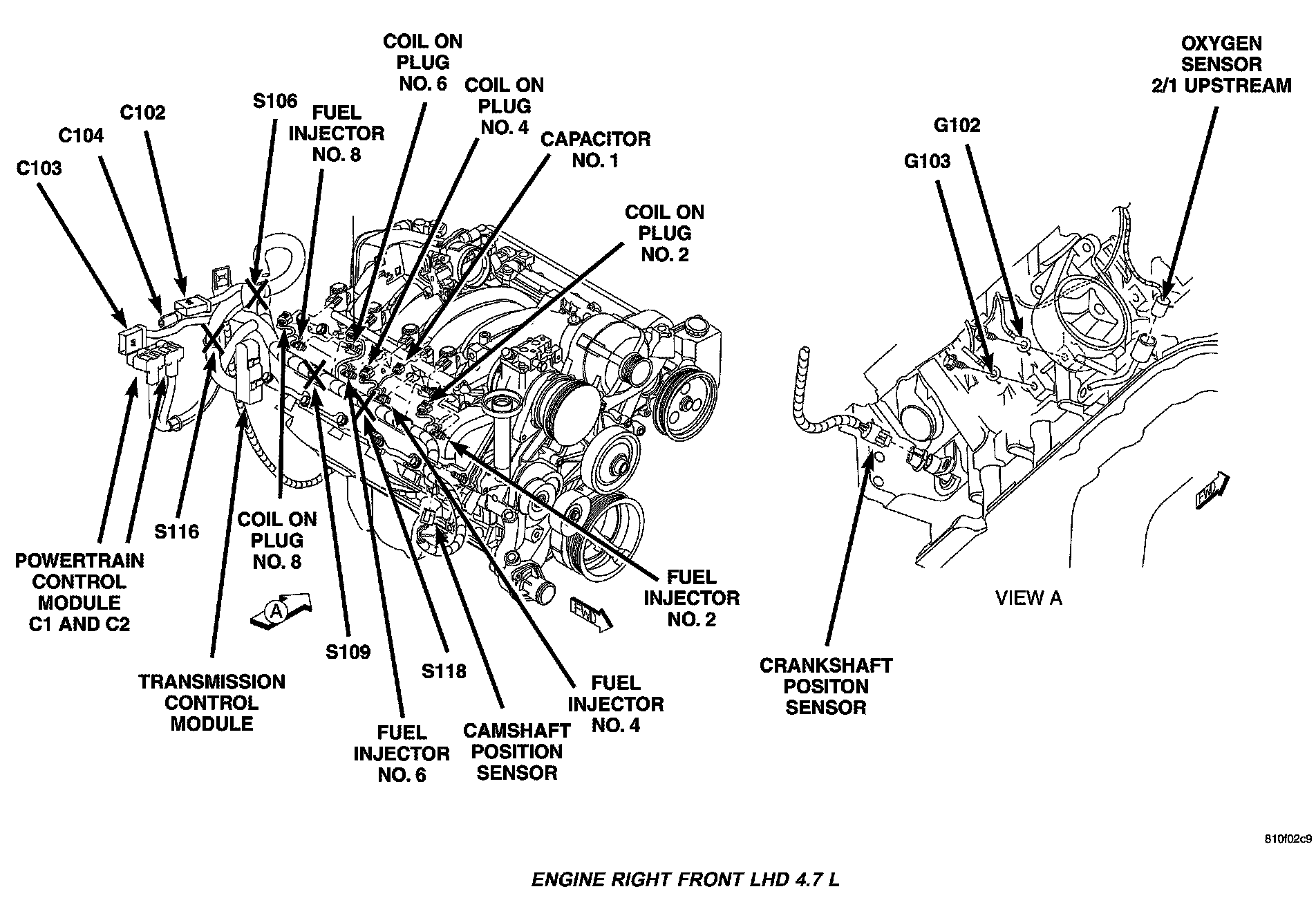

Engine Right Front LHD (4.7L):

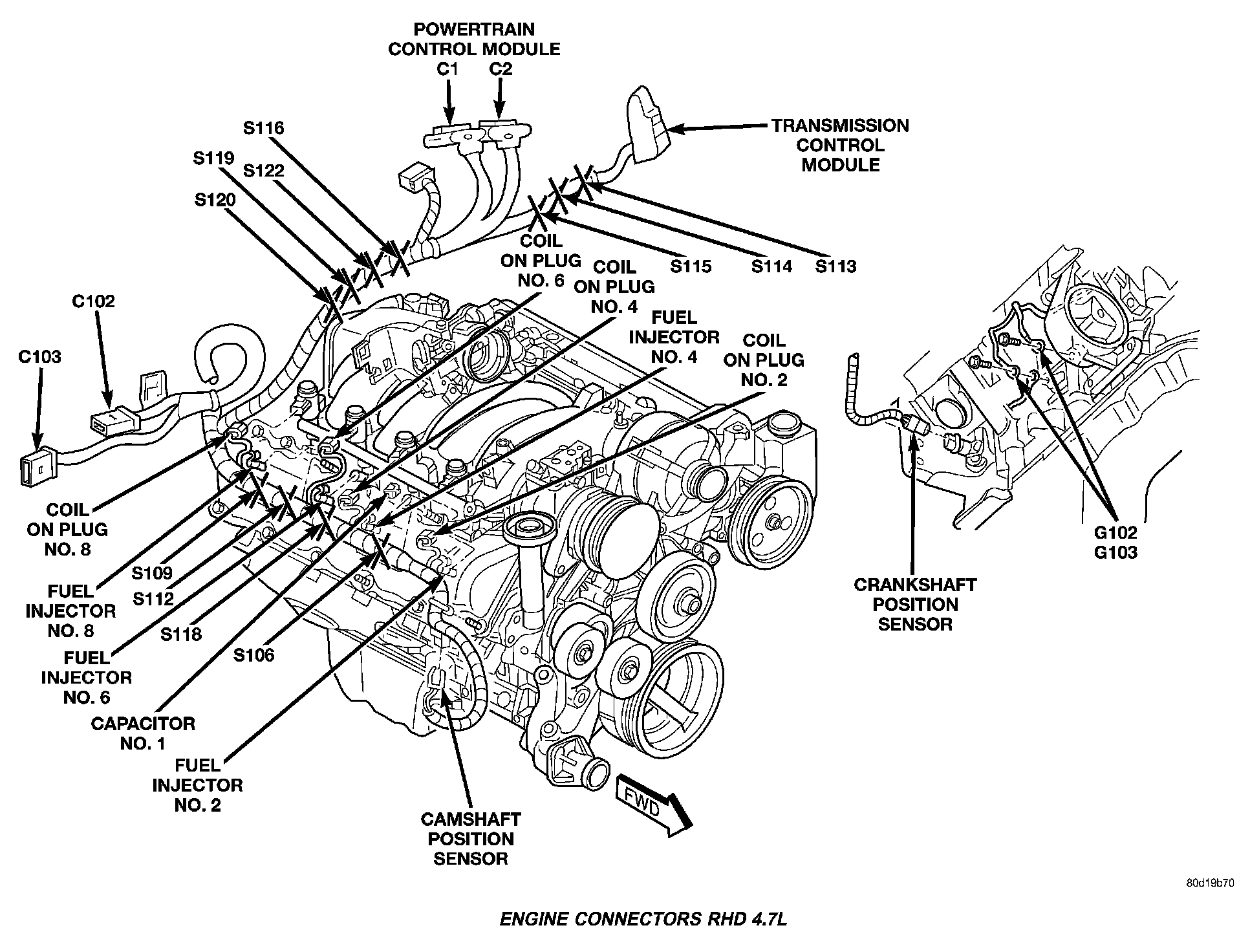

Engine Connectors RHD (4.7L):



Rear Engine Compartment LHD:
