Body Control Module & Junction Block

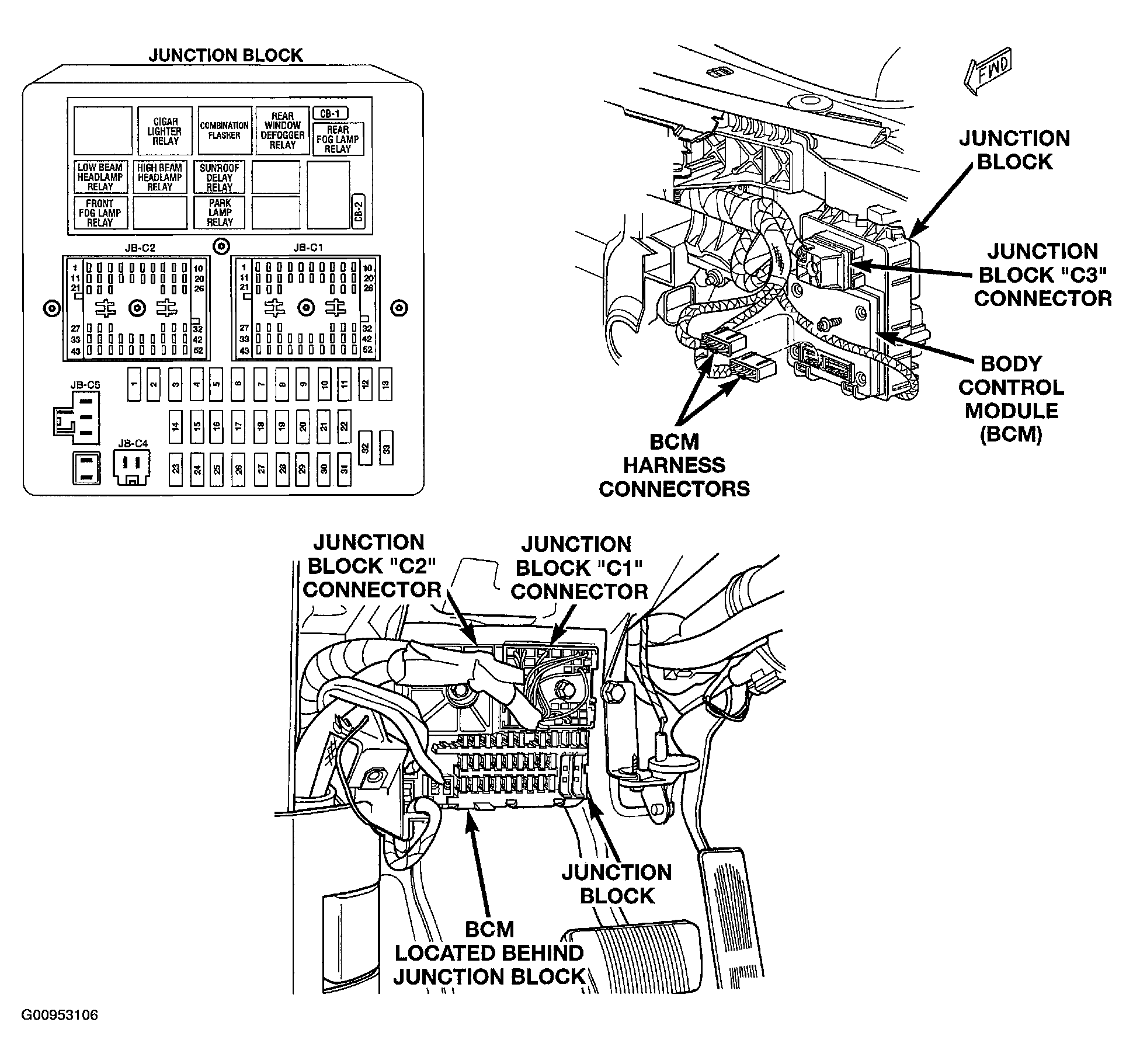

Fig 1: Identifying Body Control Module & Junction Block Component Locations
G00953106Courtesy of DAIMLERCHRYSLER CORP.
