Home
>>
Jeep
>>
2004
>>
Grand Cherokee Overland, AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Body Diagnostic Procedures
>>
Component Locations
>>
Wiper System
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Wiper System

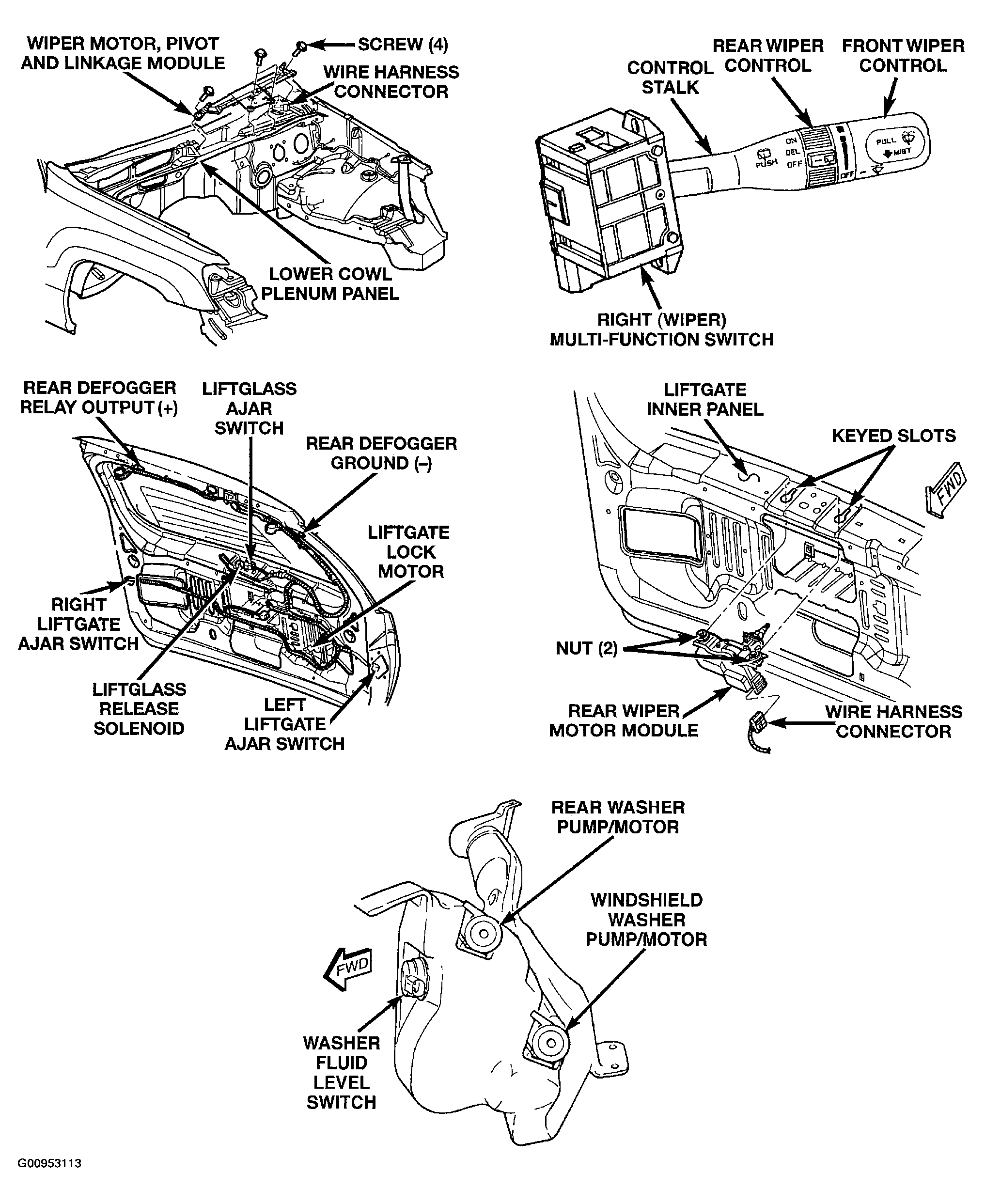

Fig 1: Identifying Wiper System Component Locations
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
