Sunroof Control Module - 8 Way

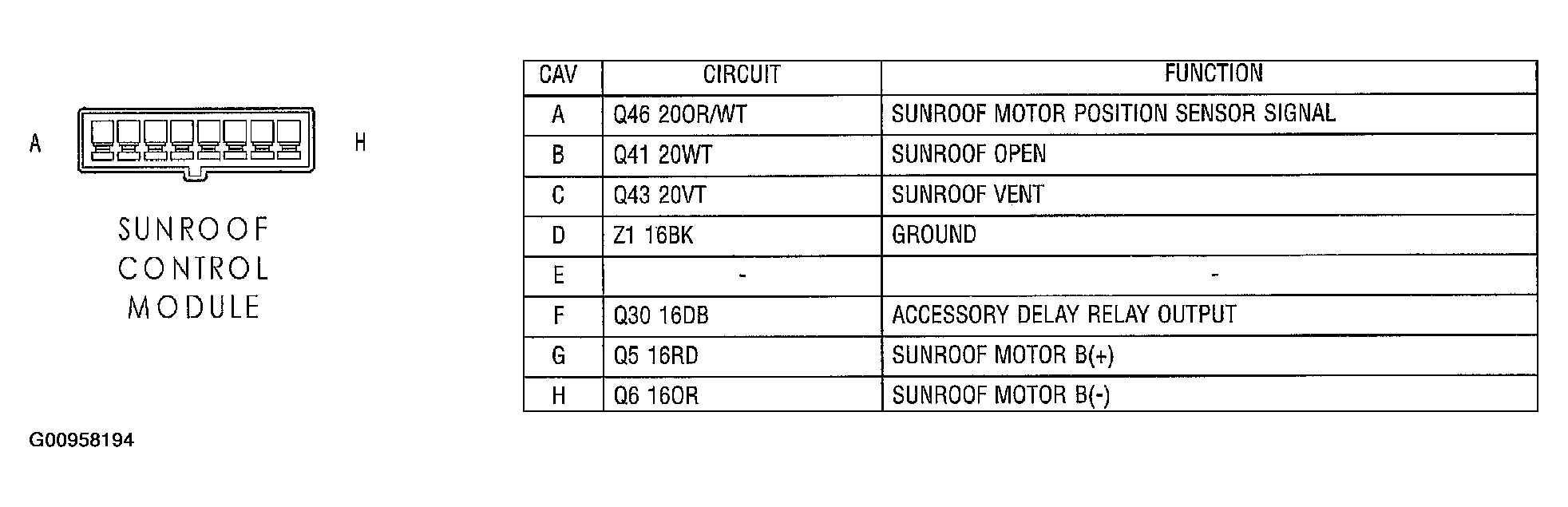

Fig 1: Identifying Sunroof Control Module - 8 Way Connector Pinouts
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
