Verification Tests: Abs

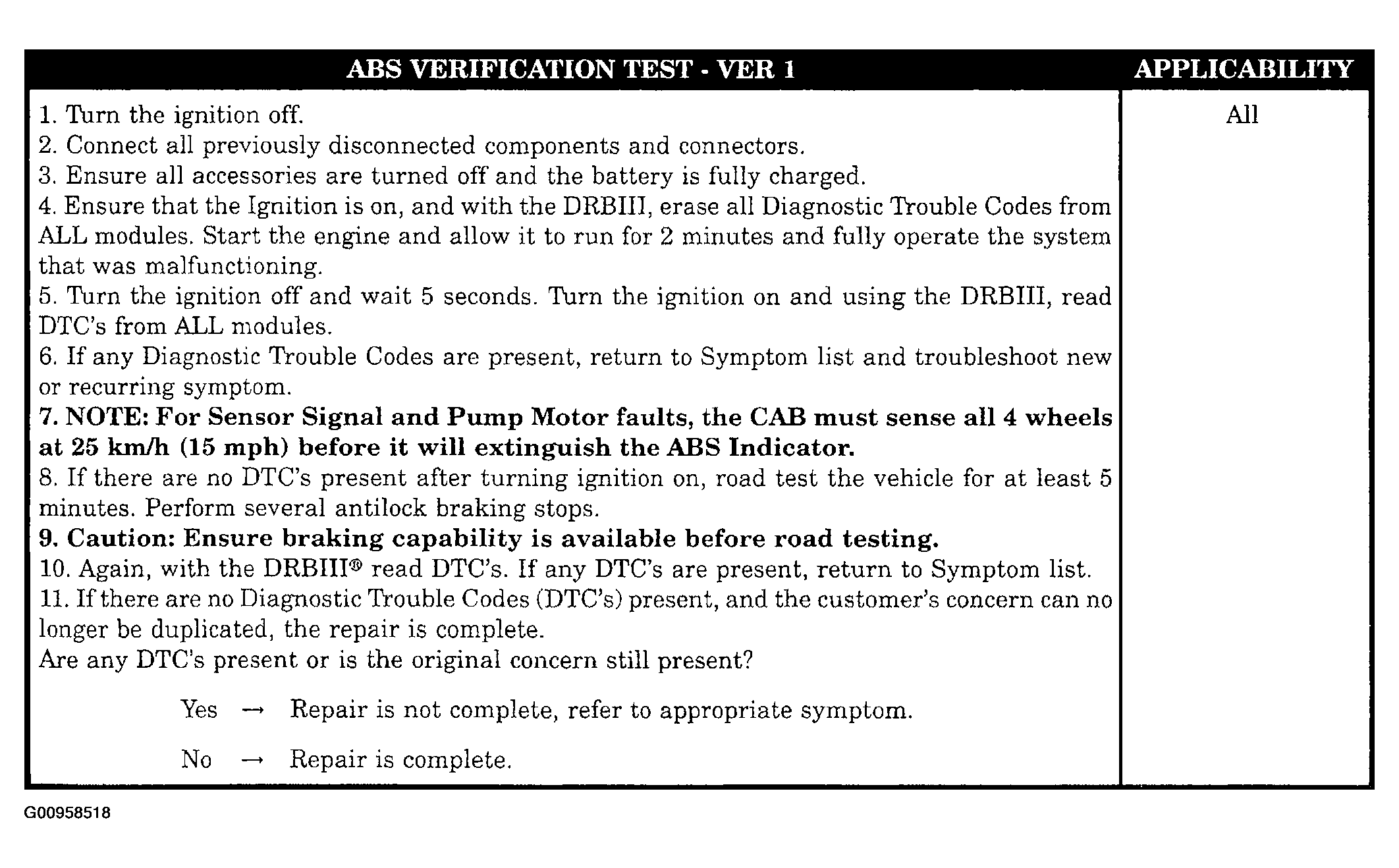

Fig 1: ABS Verification Test - VER-1
G00958518Courtesy of DAIMLERCHRYSLER CORP.
