Powertrain Control Module C2 (Gas) Connector End View

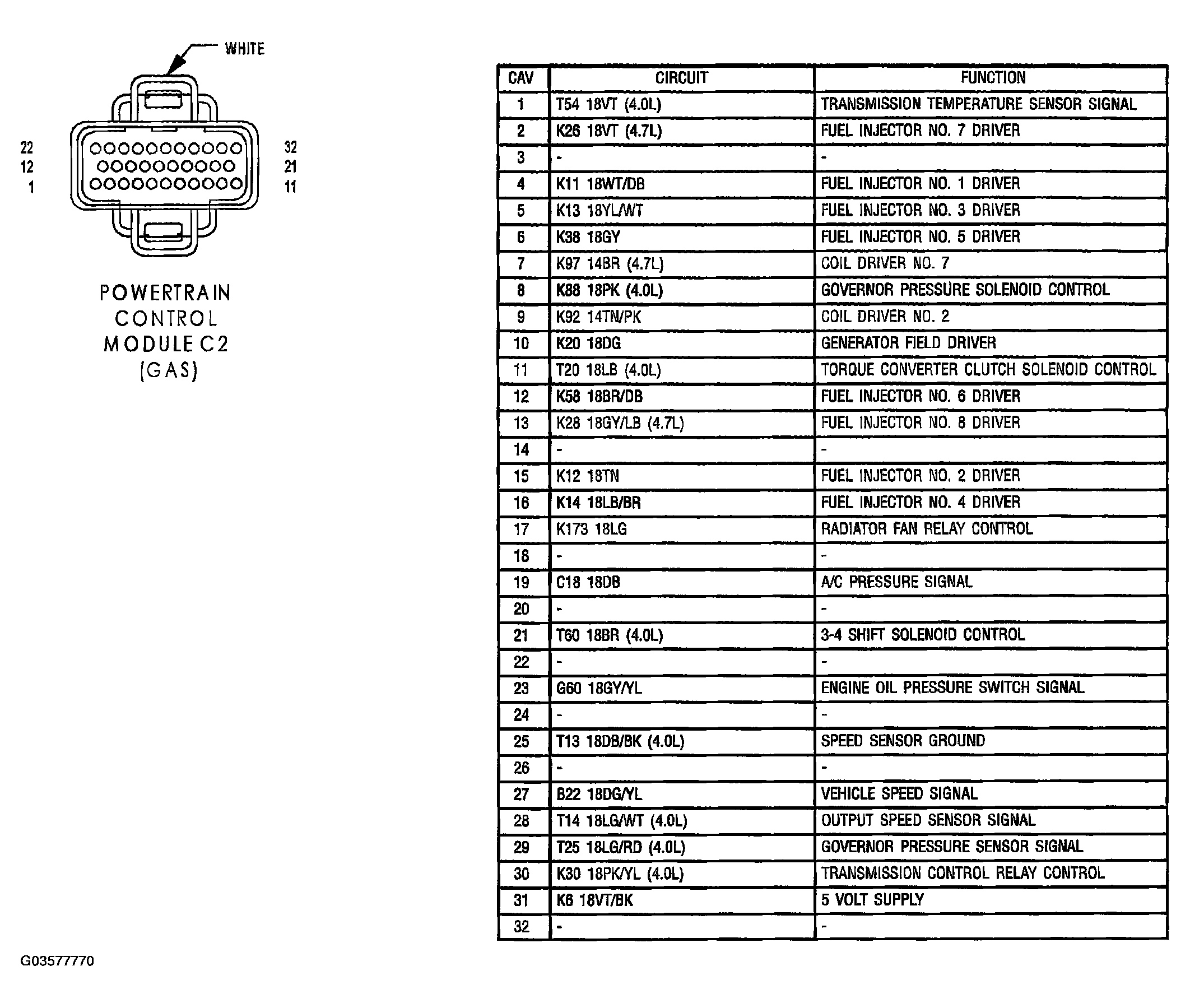

Fig 1: Powertrain Control Module (Gas) Connector End View (C2)
G03577770Courtesy of DAIMLERCHRYSLER CORP.
