Ignition Coil: Description

The 4.7L V-8 engine uses 8 dedicated, and individually fired coil (Fig 1 ) for each spark plug. Each coil is mounted directly to the top of each spark plug (Fig 2 ).

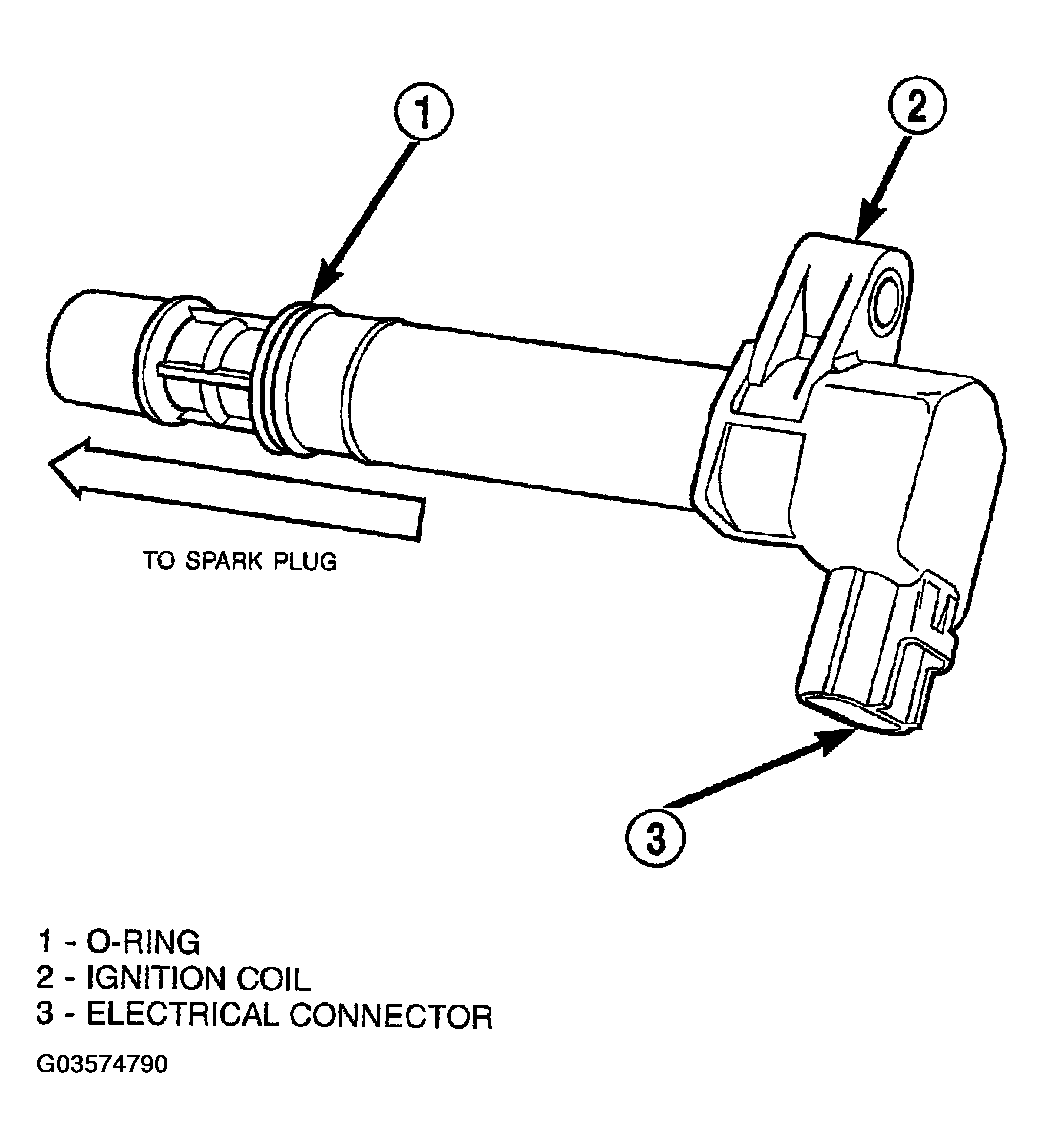

Fig 1: Ignition Coil - 4.7L Engine

Courtesy of DAIMLERCHRYSLER CORP.

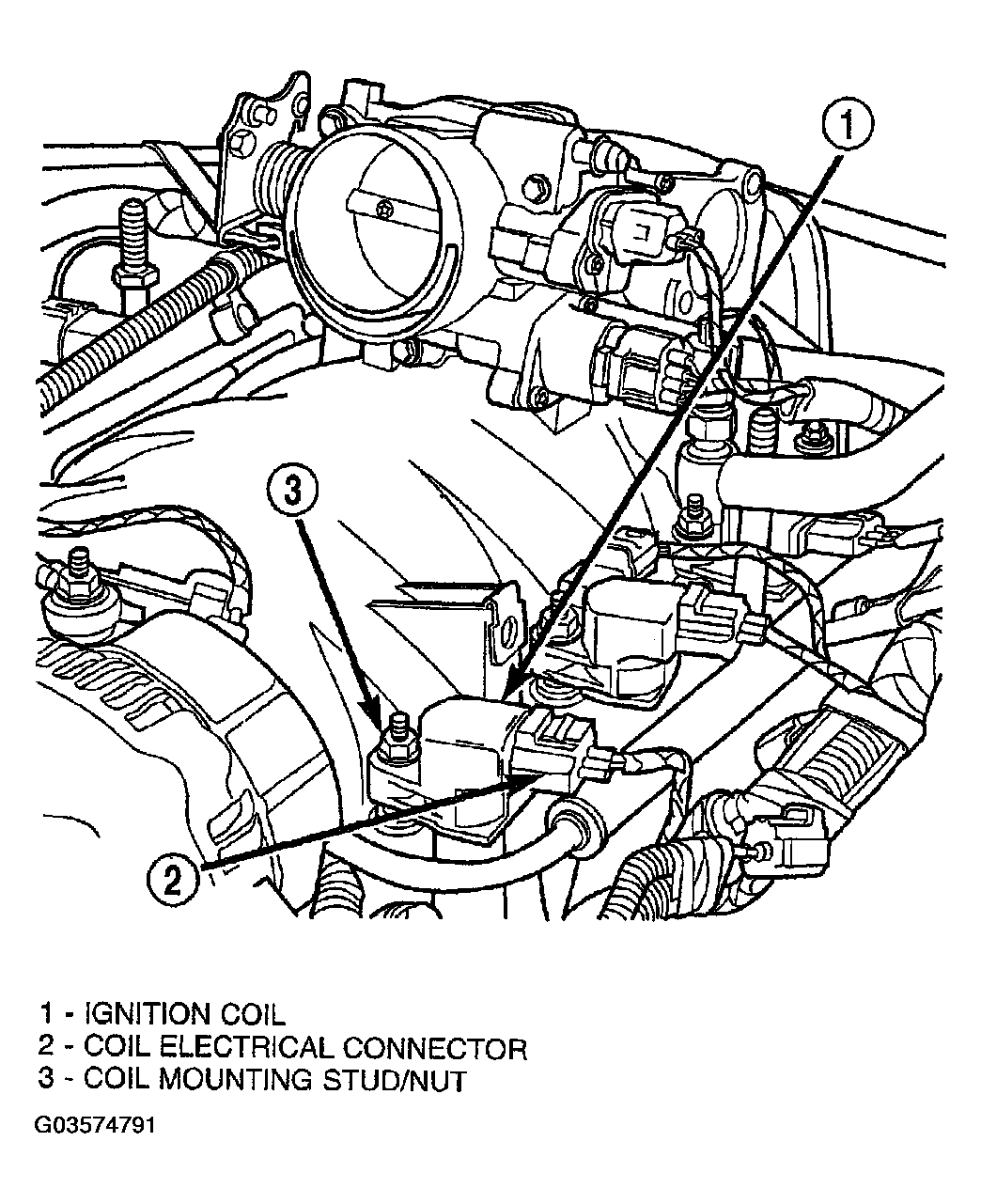

Fig 2: Ignition Coil Location - 4.7L Engine

Courtesy of DAIMLERCHRYSLER CORP.
