Engine Firing Order - 4.0L 6-Cylinder Engine
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Engine Firing Order - 4.0L 6-Cylinder Engine

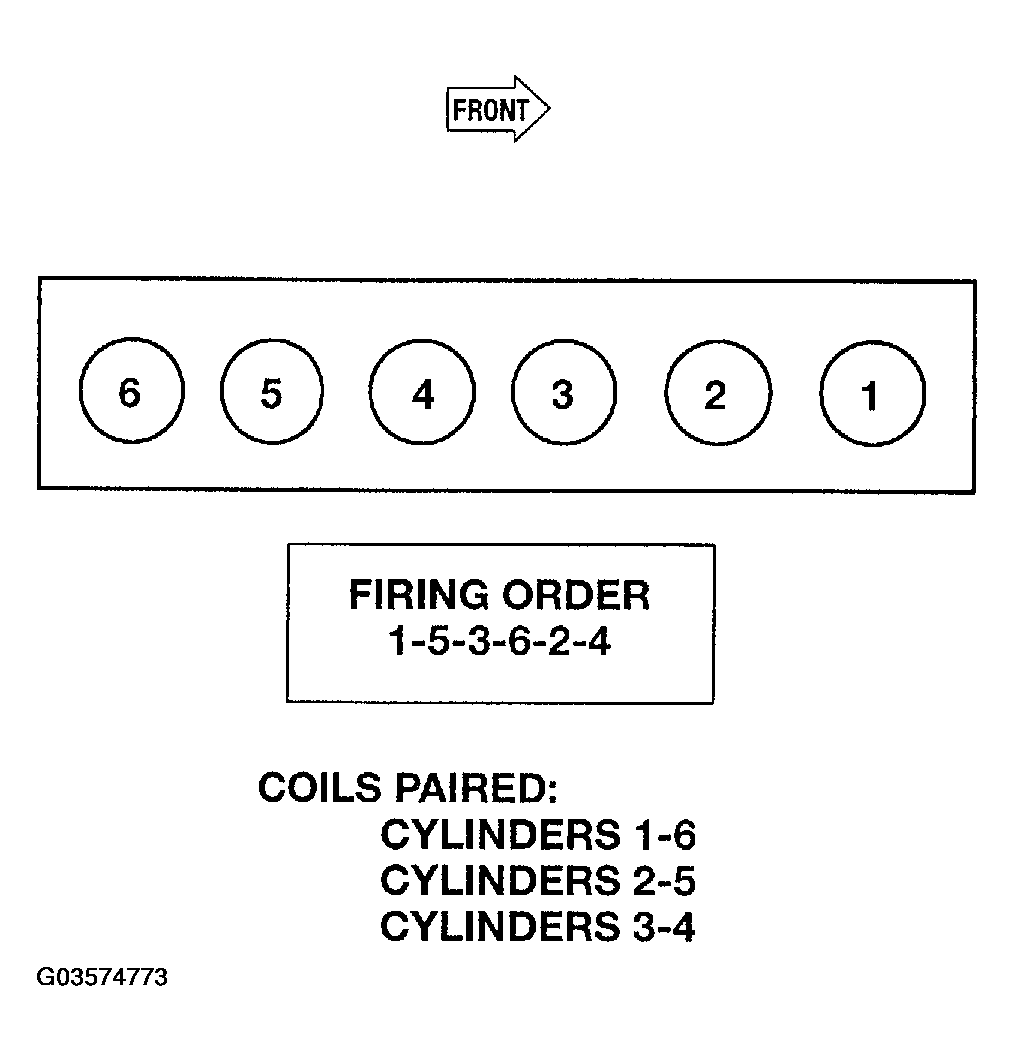

Fig 1: Firing Order - 4.0L
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
