Fuel Pump Module: Description

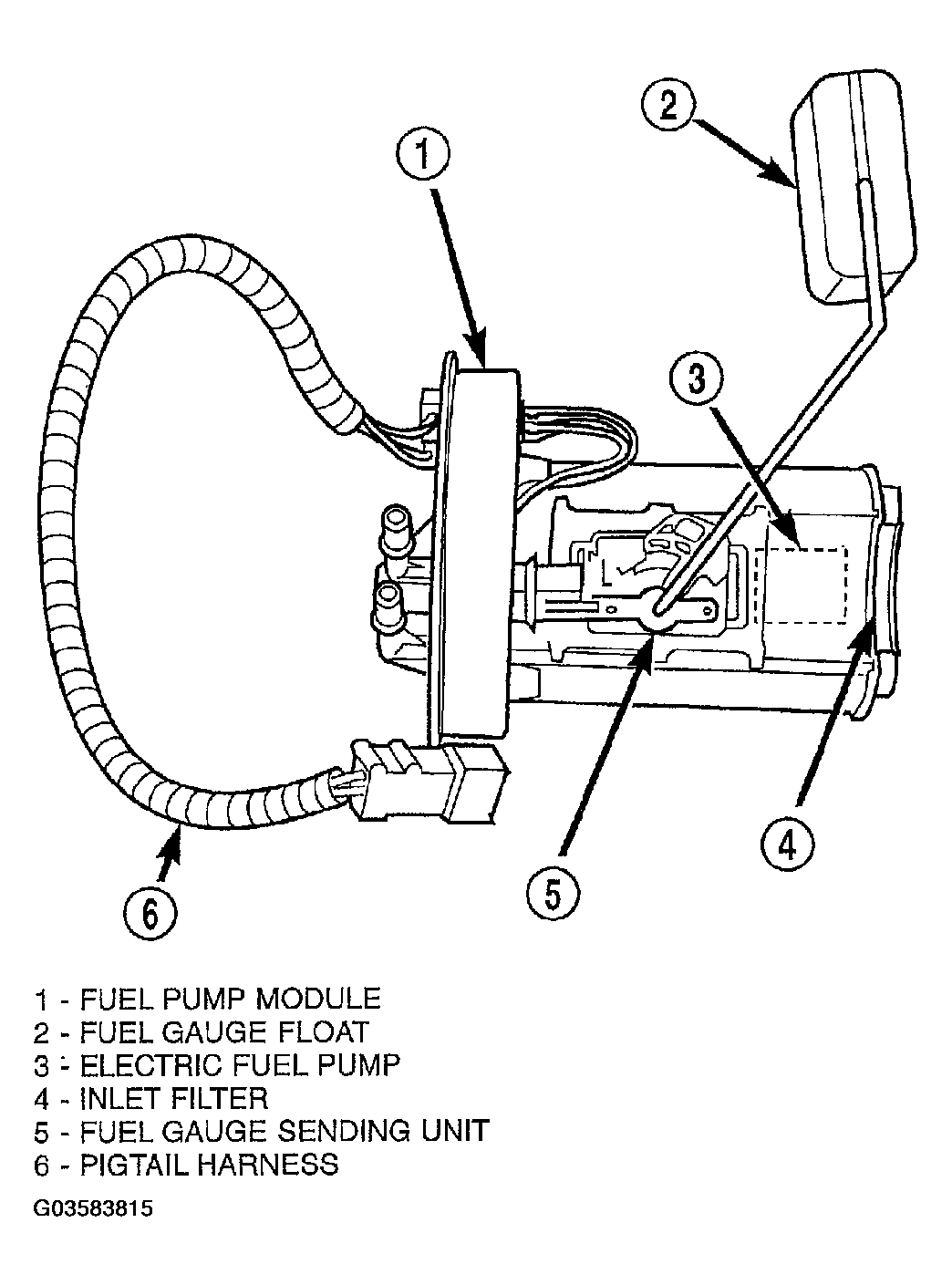

The fuel pump module is installed in the top of the fuel tank (Fig 1 ). The fuel pump module (Fig 2 ) contains the following components:
- A separate fuel pick-up filter (strainer)
- An electric fuel pump
- A threaded lock nut to retain module to tank
- A gasket between tank flange and module
- Fuel gauge sending unit (fuel level sensor)
- Fuel supply tube (line) connection
- Fuel return tube (line) connection
The fuel gauge sending unit and pick-up filter may be serviced separately. If the electrical fuel pump requires service, the entire fuel pump module must be replaced.
