Driver Door Module C2 Connector End View

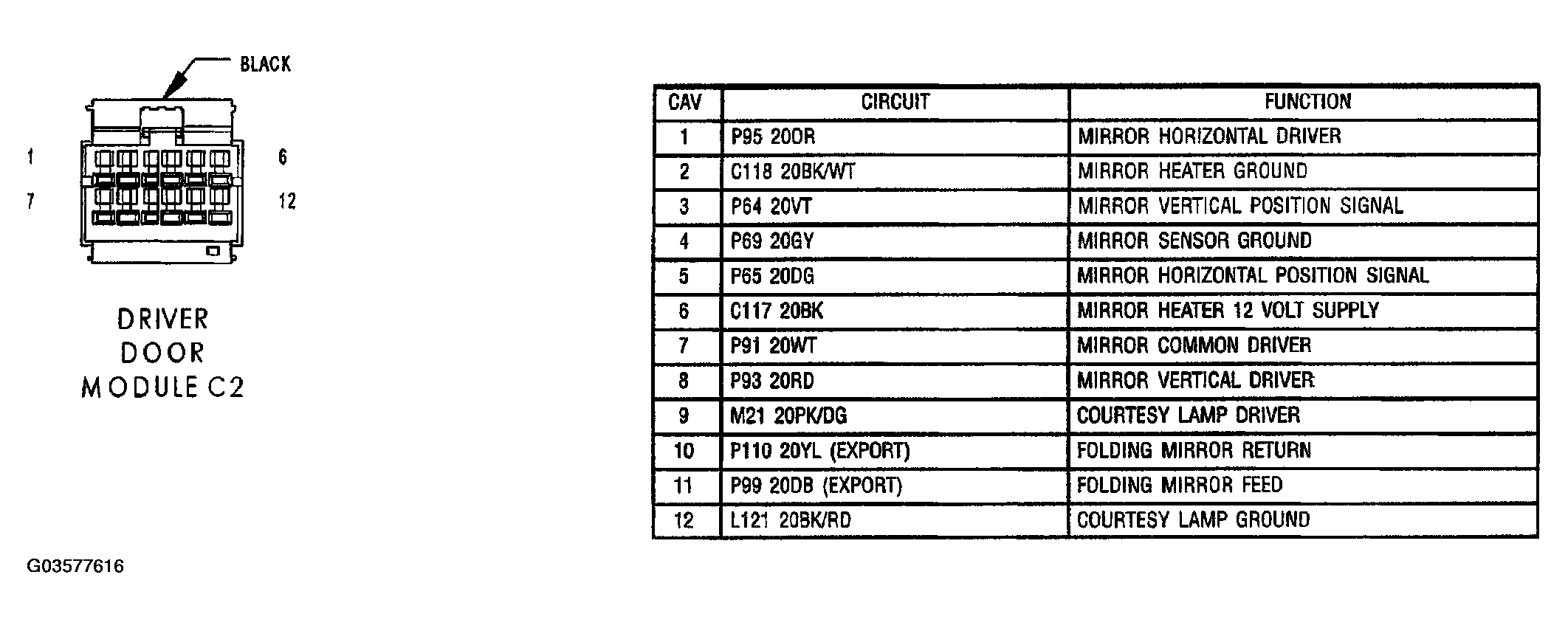

Fig 1: Driver Door Module Connector End View (C2)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
