Engine Control Module C1 (Diesel) Connector End View

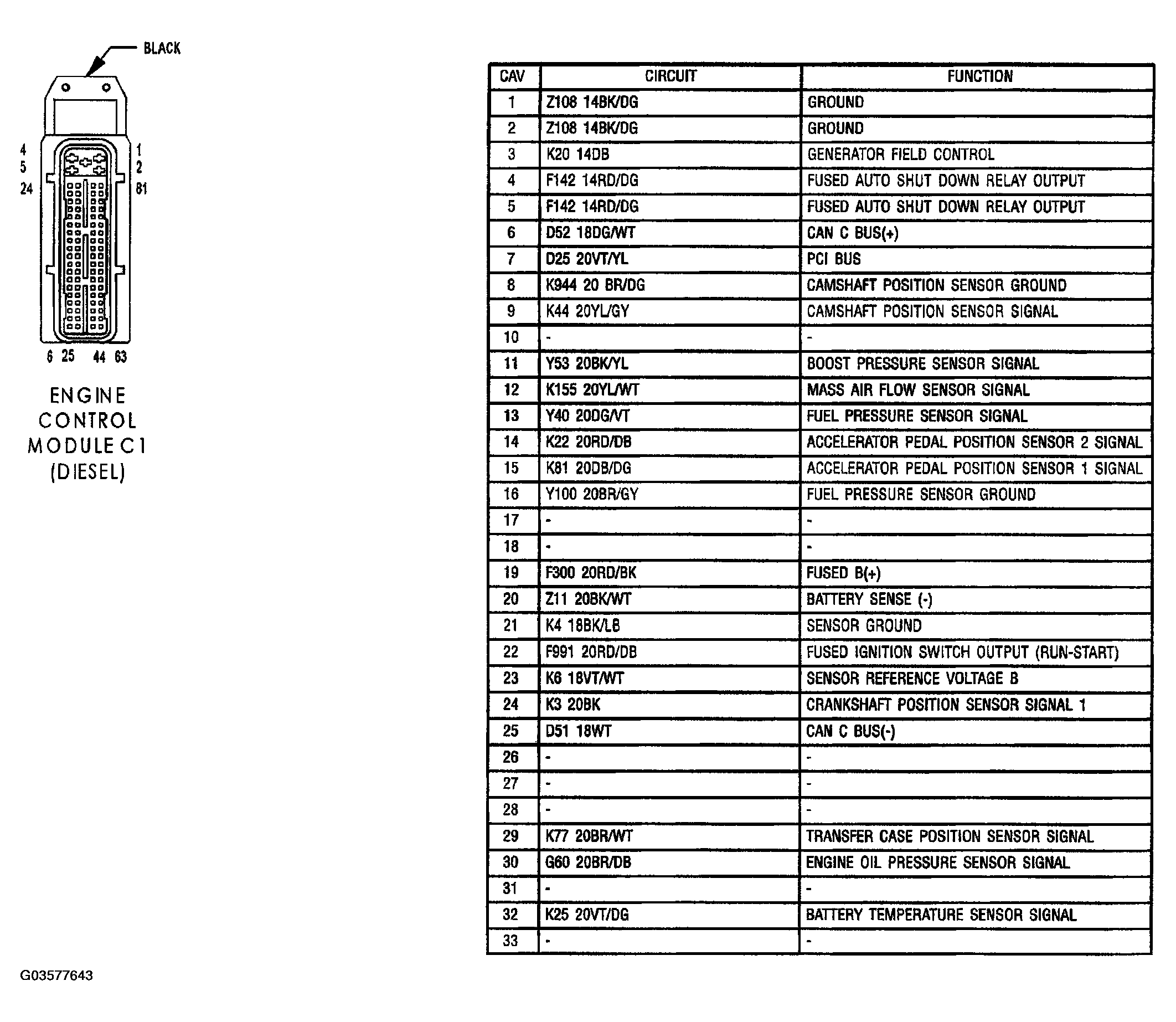

Fig 1: Engine Control Module (Diesel) Connector End View (C1) (1 Of 2 )

Courtesy of DAIMLERCHRYSLER CORP.

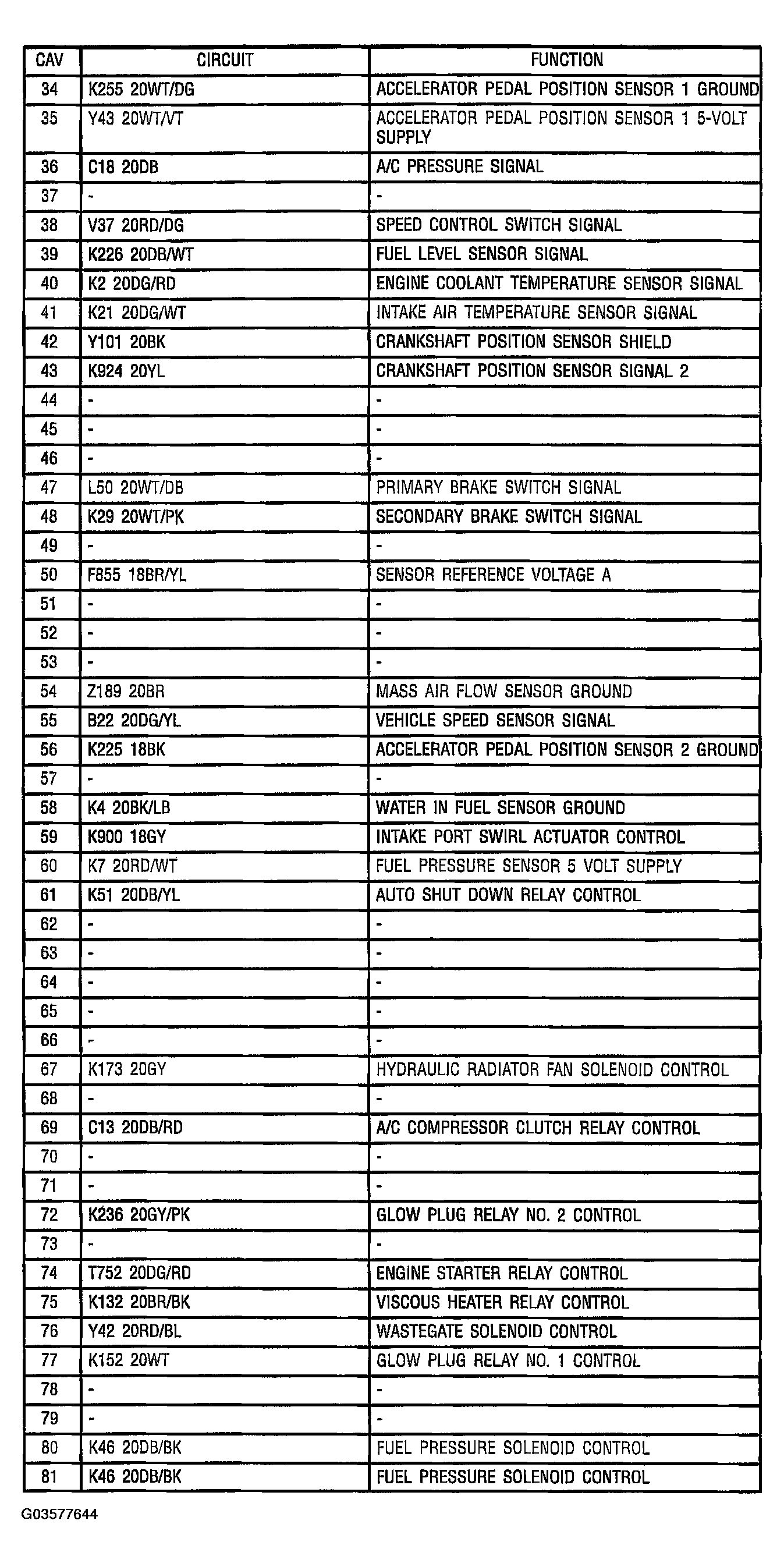

Fig 1: Engine Control Module (Diesel) Connector End View (C1) (2 Of 2 )

Courtesy of DAIMLERCHRYSLER CORP.
