Right Multi-Function Switch Connector End View

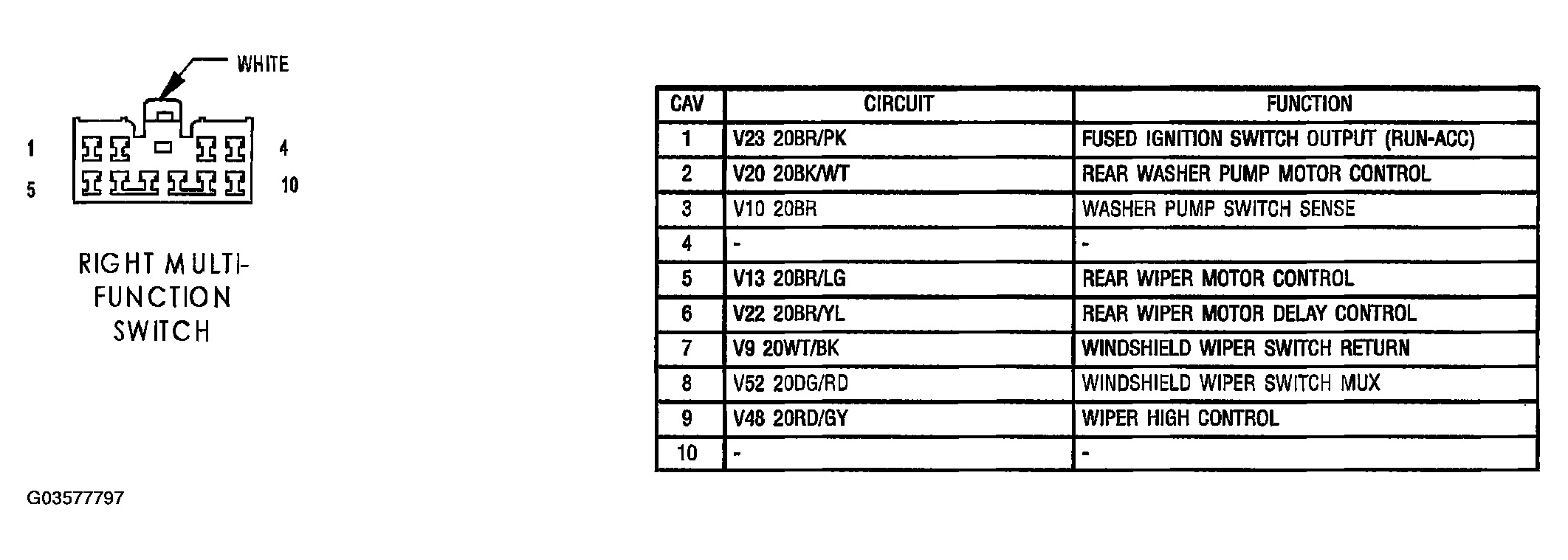

Fig 1: Right Multifunction Switch Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
