Body Control Module

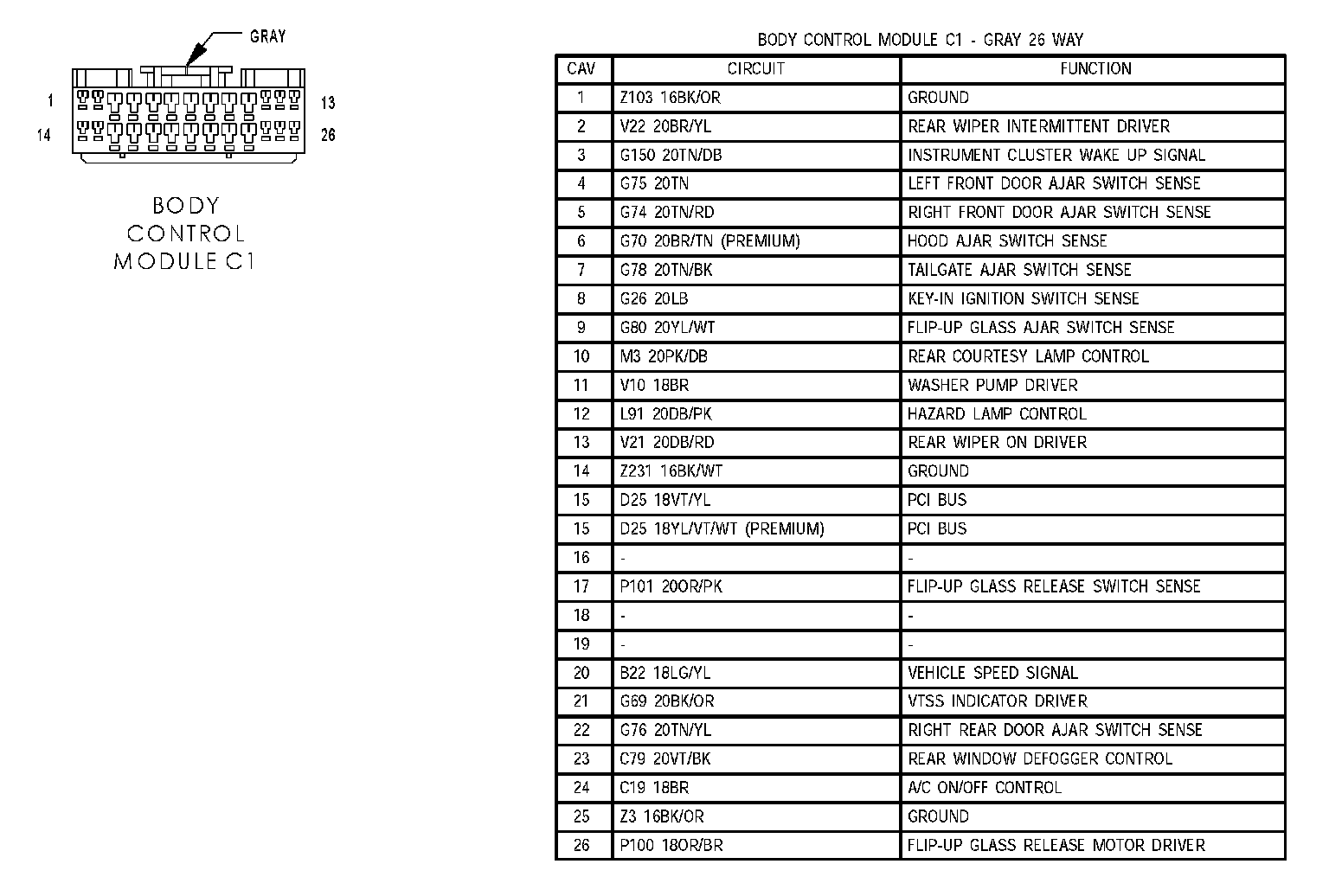

Body Control Module C1:

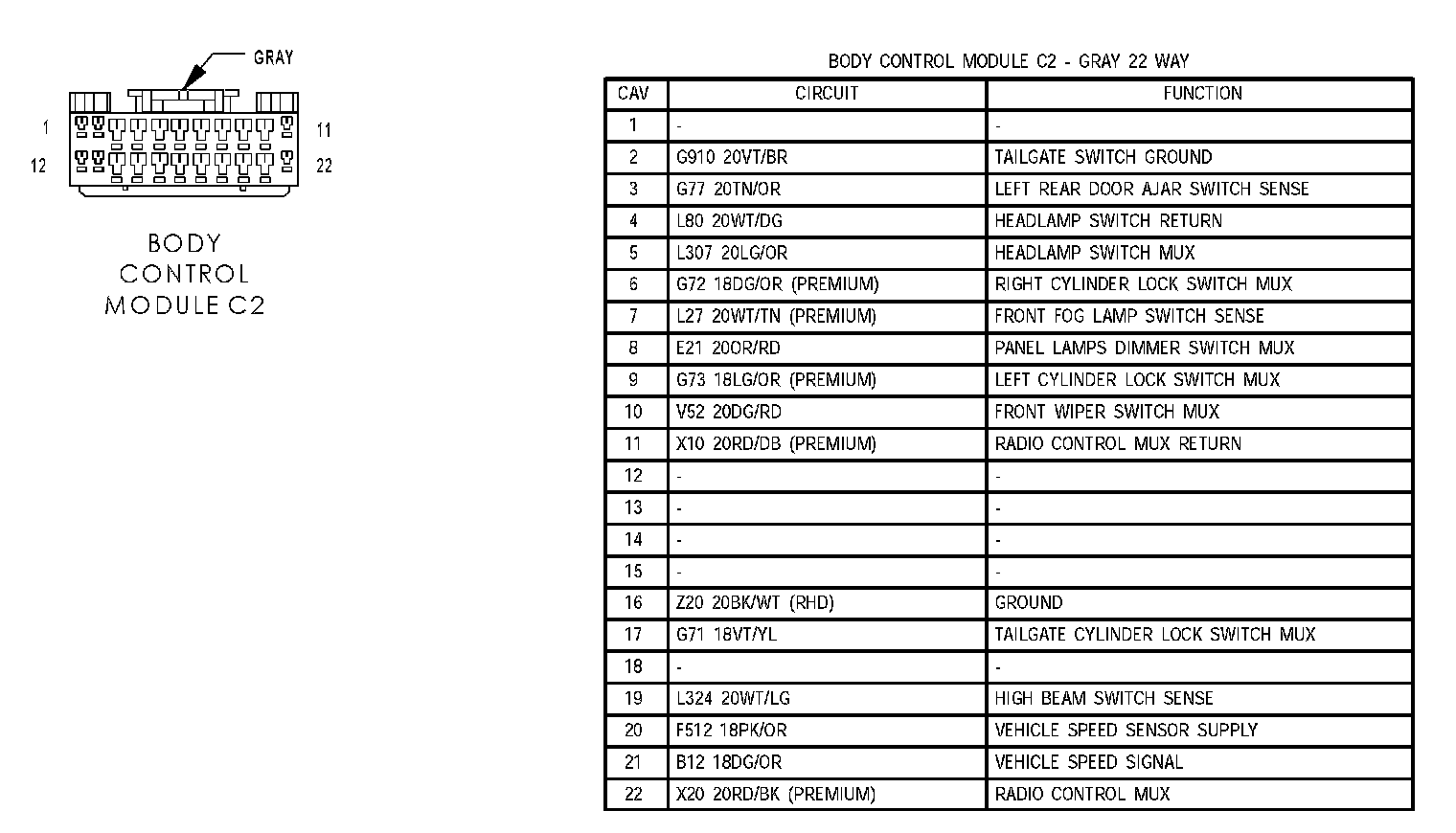

Body Control Module C2:

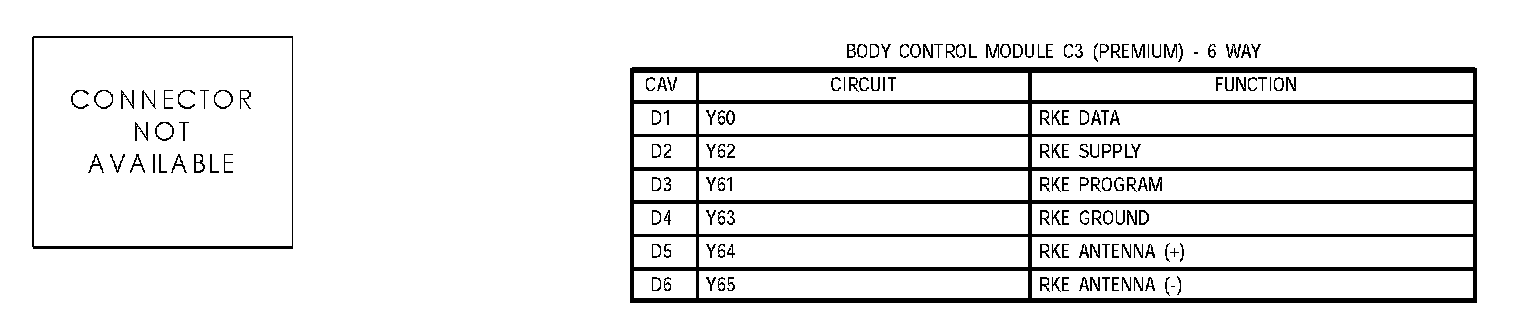

Body Control Module C3(Premium):
