Battery Temperature Sensor: Service and Repair

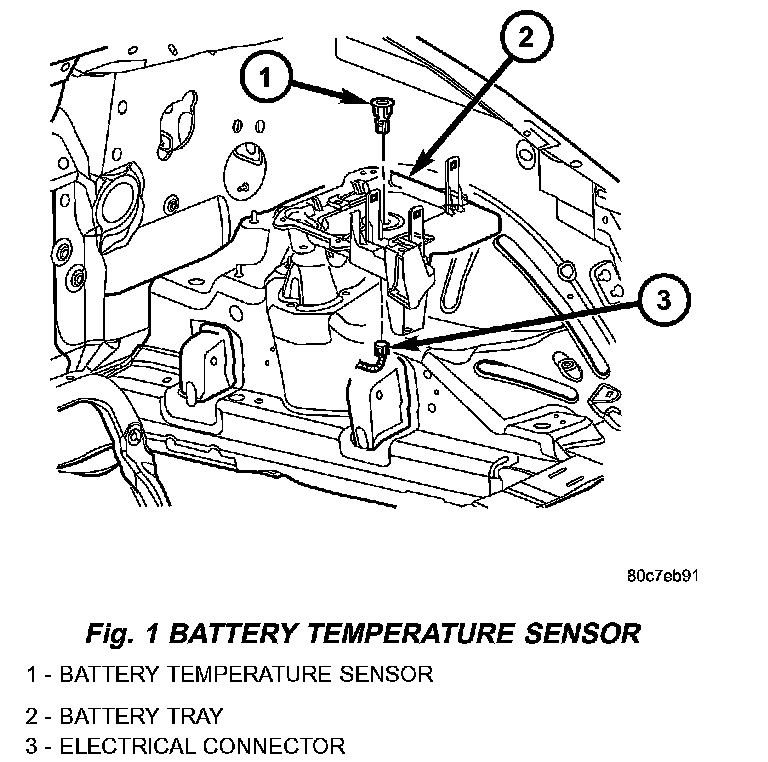

Fig.1 Battery Temperature Sensor:

REMOVAL
The battery temperature sensor is located under the vehicle battery (Fig. 1) and is attached to a mounting hole on battery tray.
1. Remove battery.
2. Disconnect sensor pigtail harness from engine wire harness electrical connector.
3. Pry sensor straight up from battery tray mounting hole.

INSTALLATION
The battery temperature sensor is located under vehicle battery and is attached to a mounting hole on battery tray.
1. Feed pigtail harness through hole in top of battery tray and press sensor into top of battery tray.
2. Connect pigtail harness.
3. Install battery.
