Circuit Diagrams

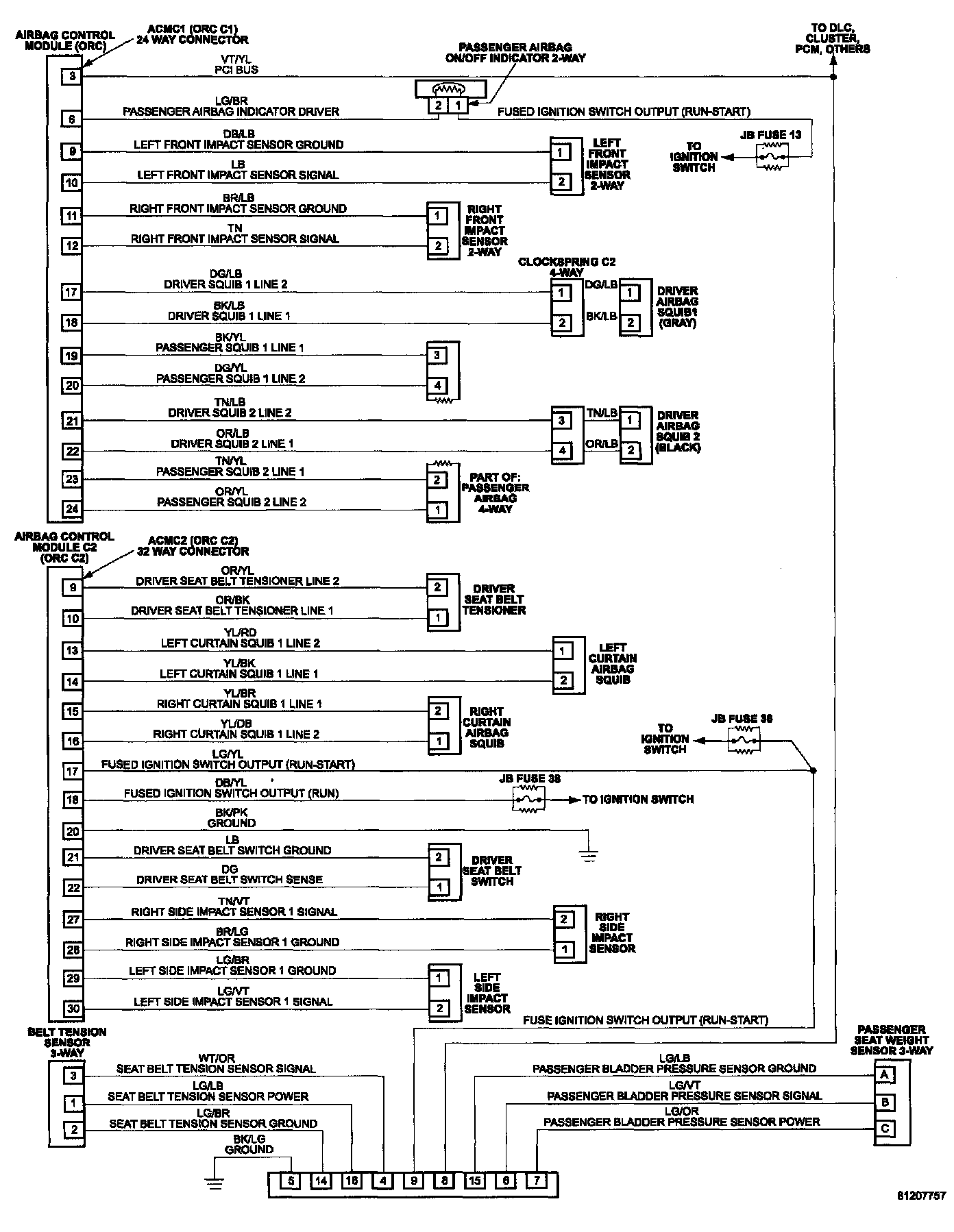

Airbag System:

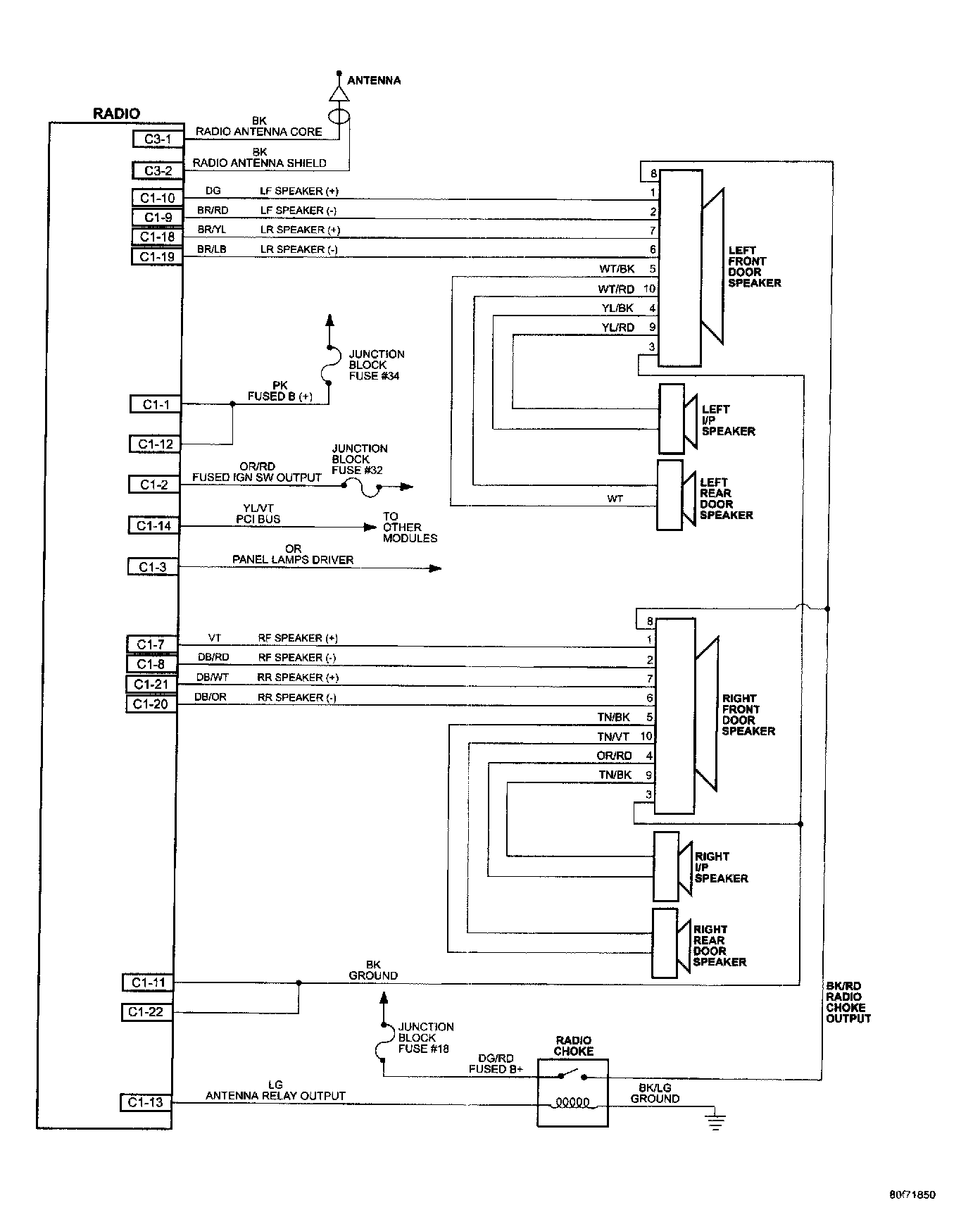

Premium Audio System:

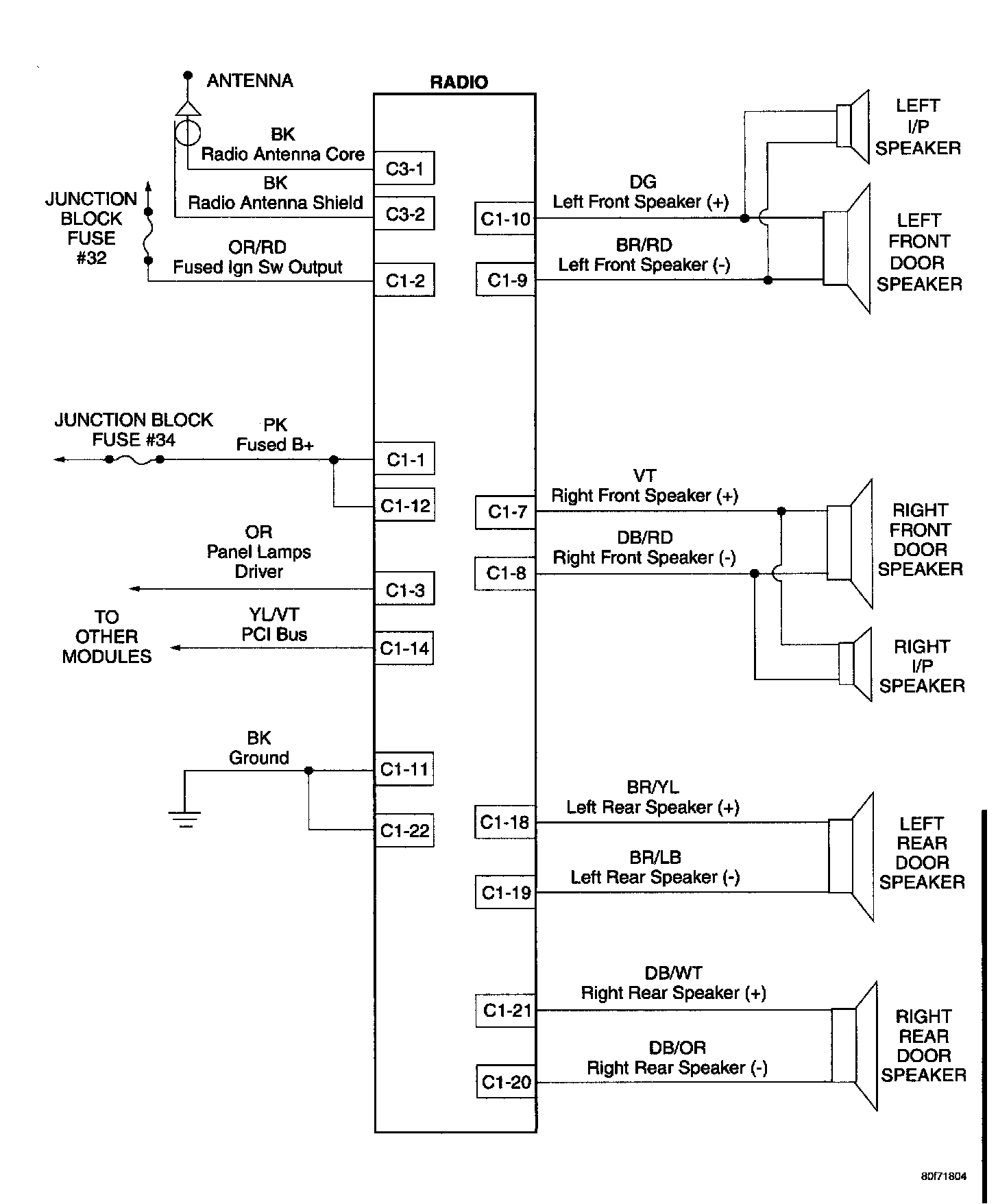

Base Audio System:

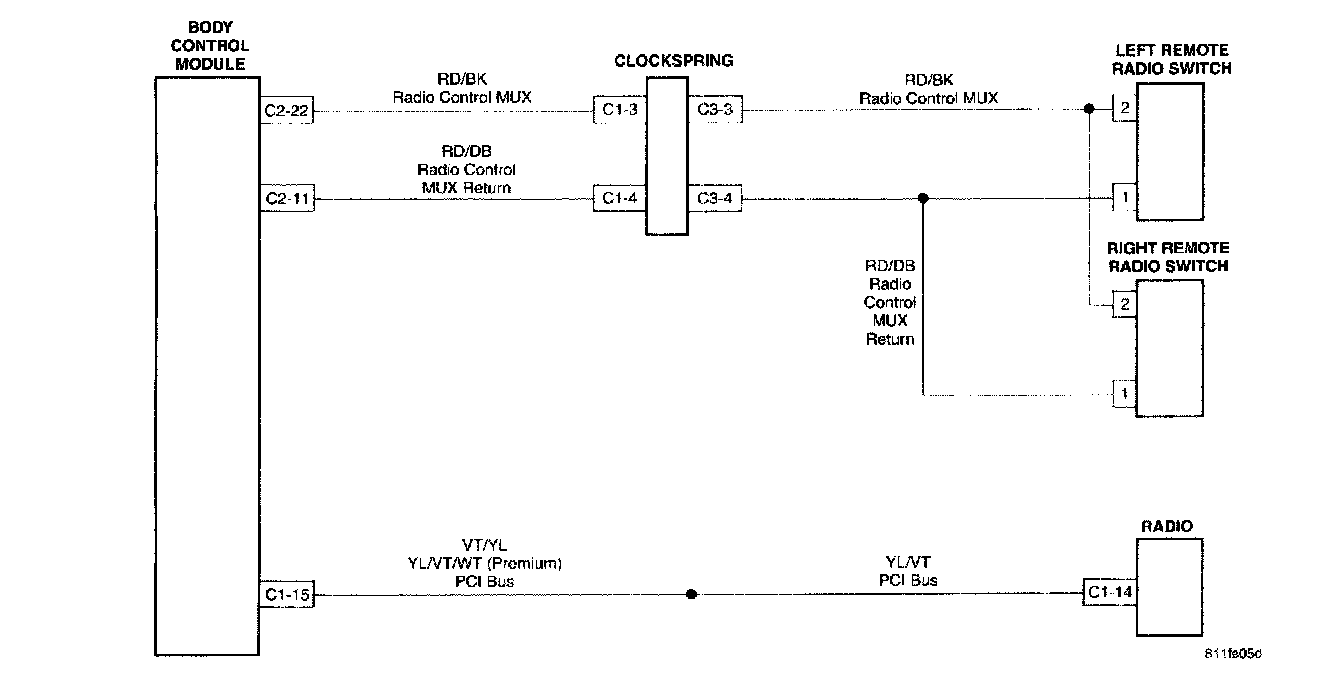

Remote Radio Controls:

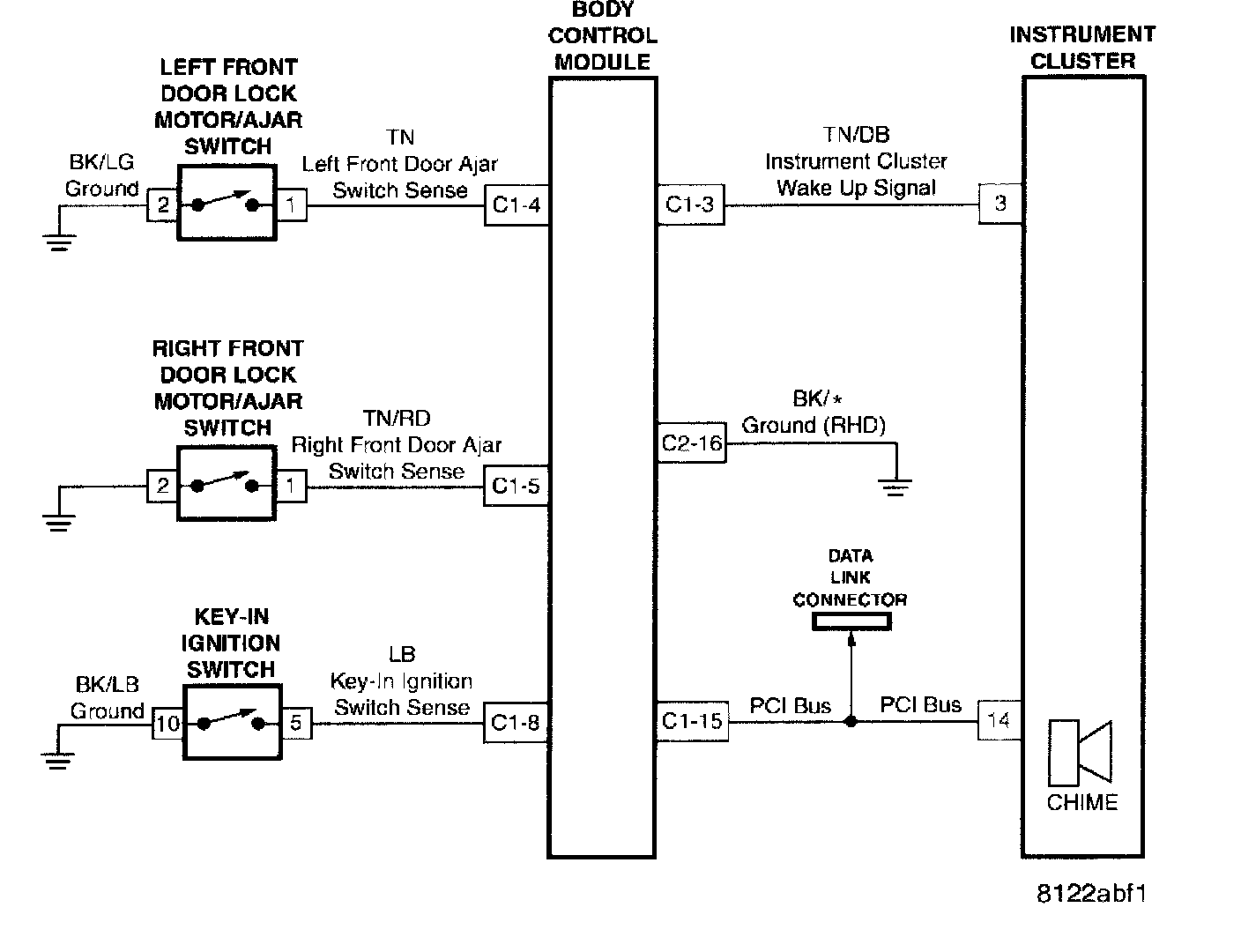

Chime:

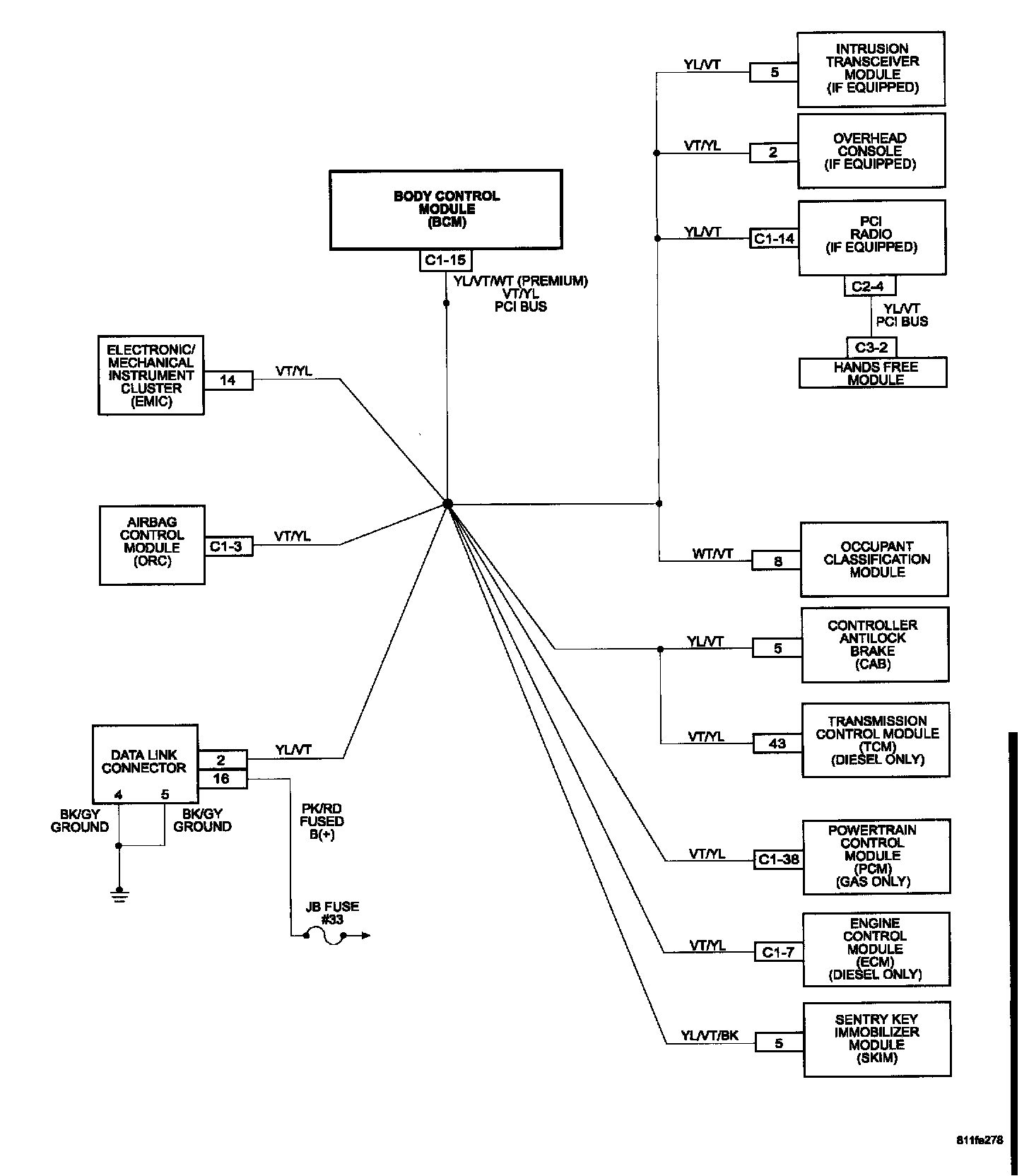

Inter-module And DRB Communication:

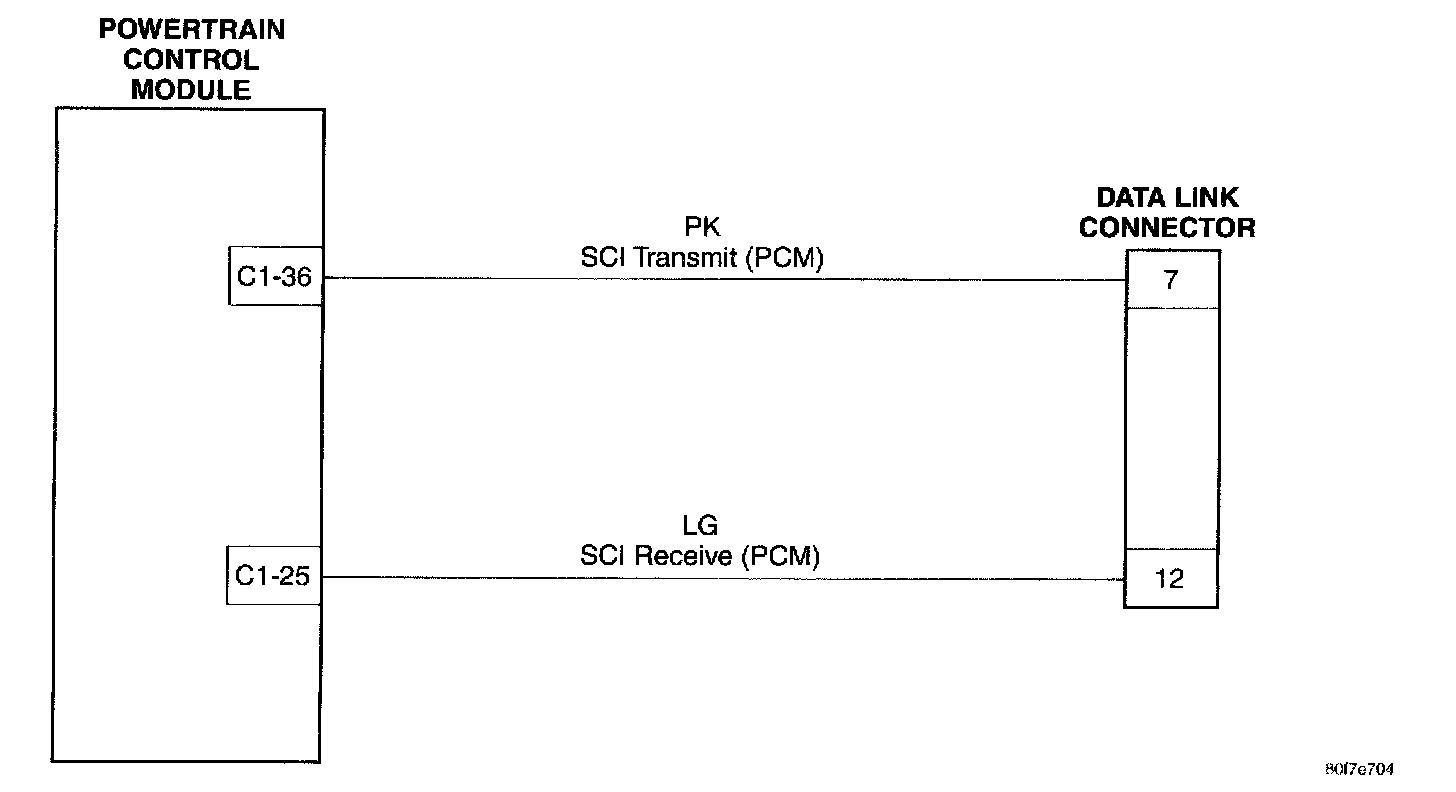

PCM Communication - Gas Only:

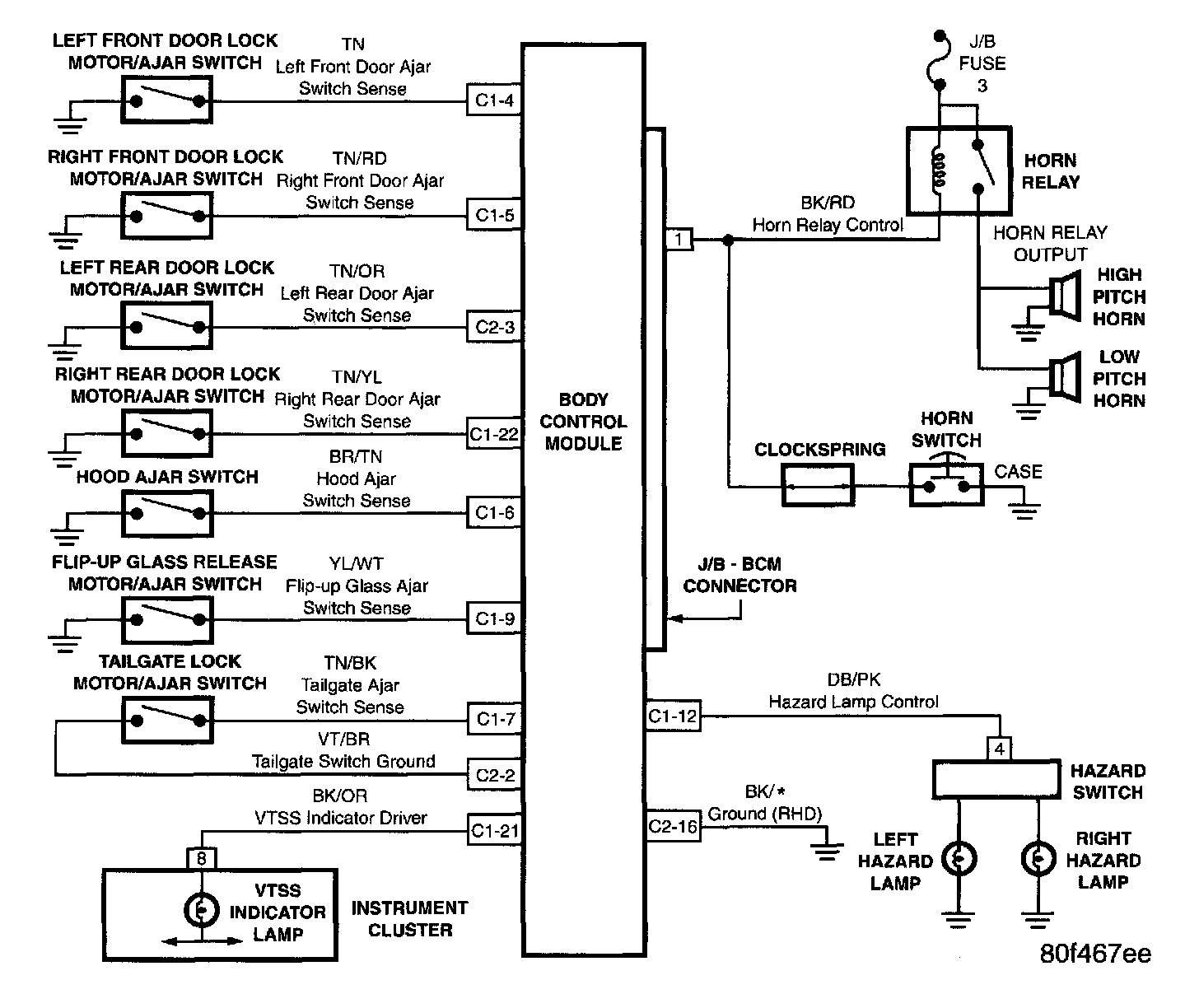

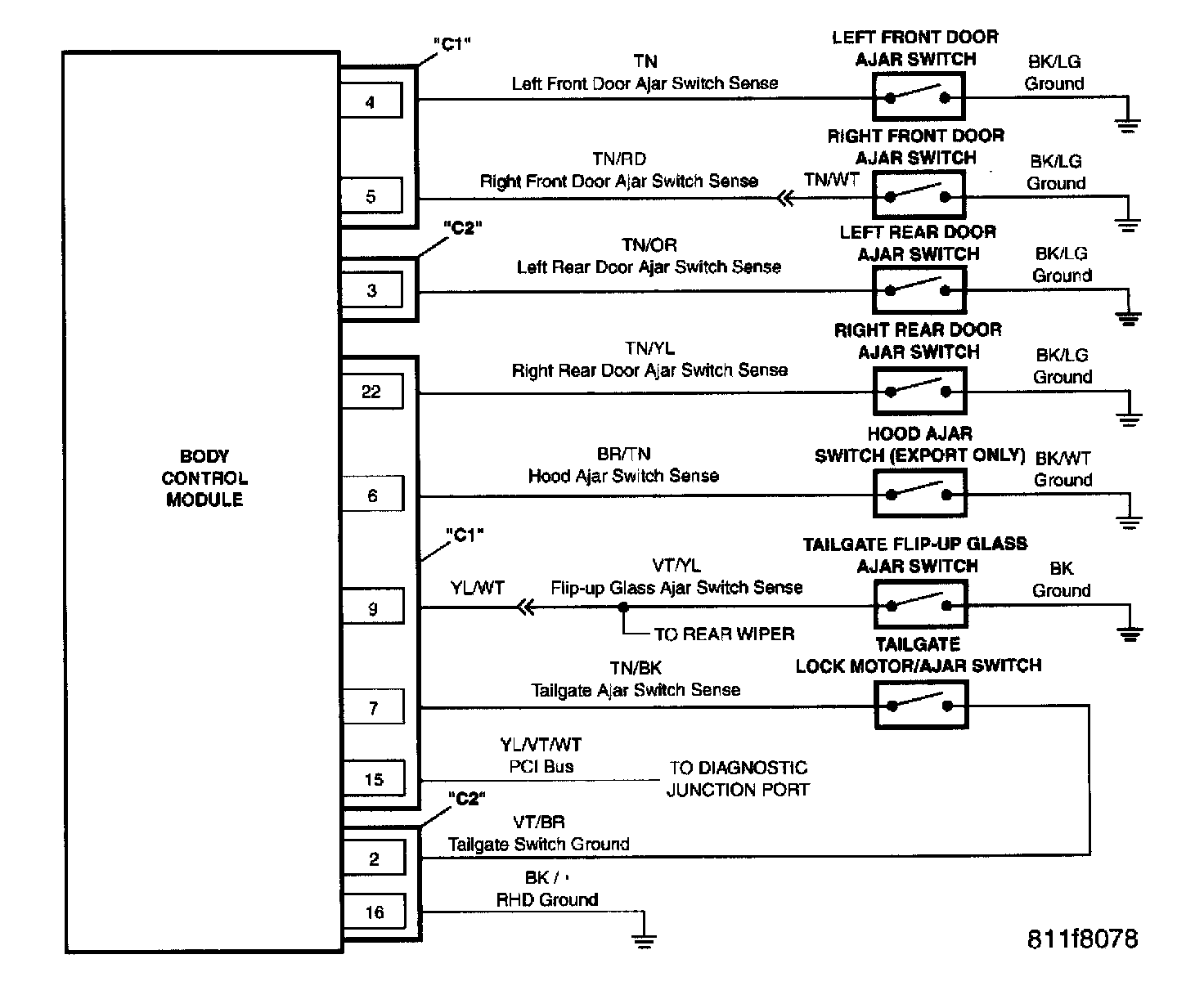

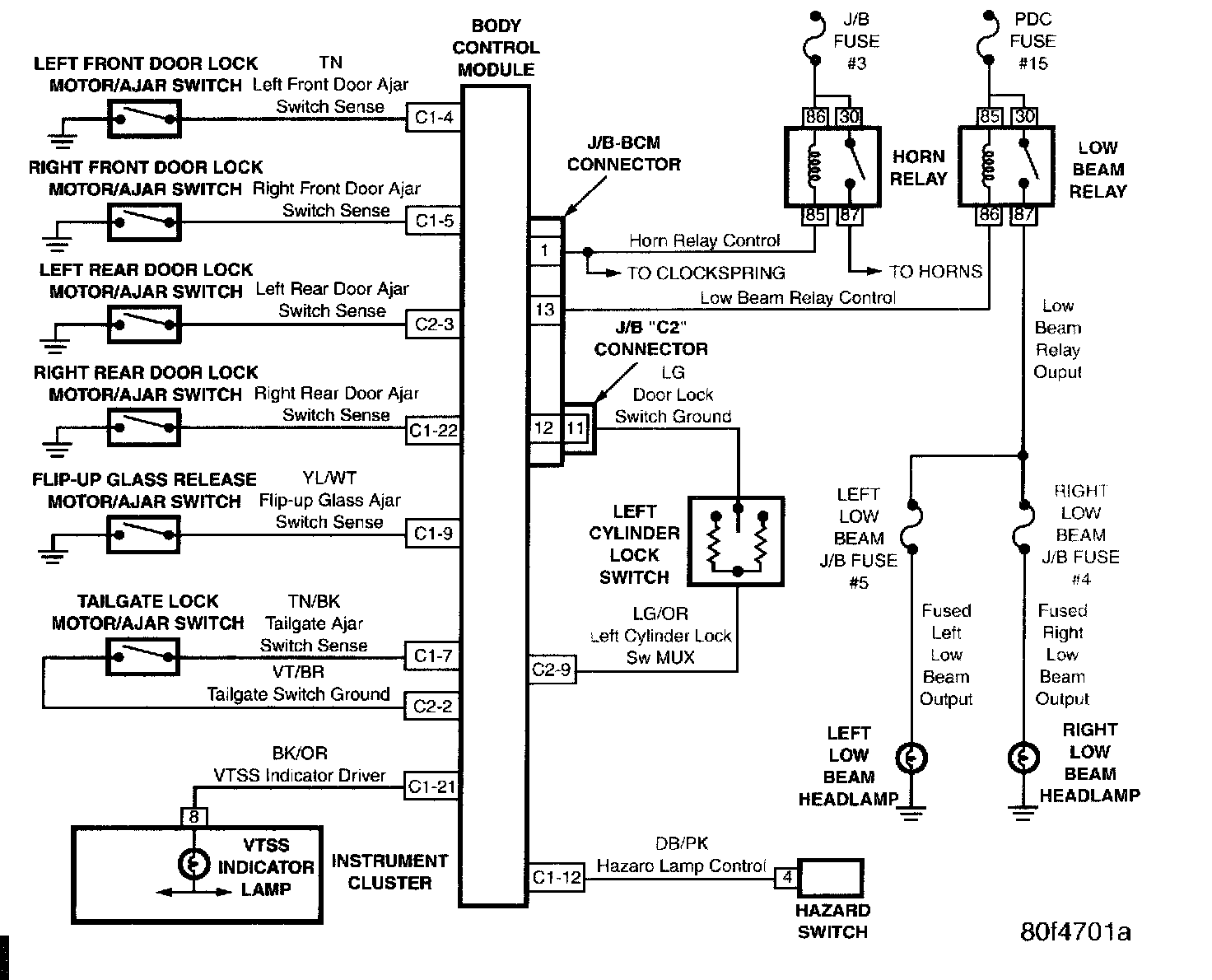

Door Ajar System:

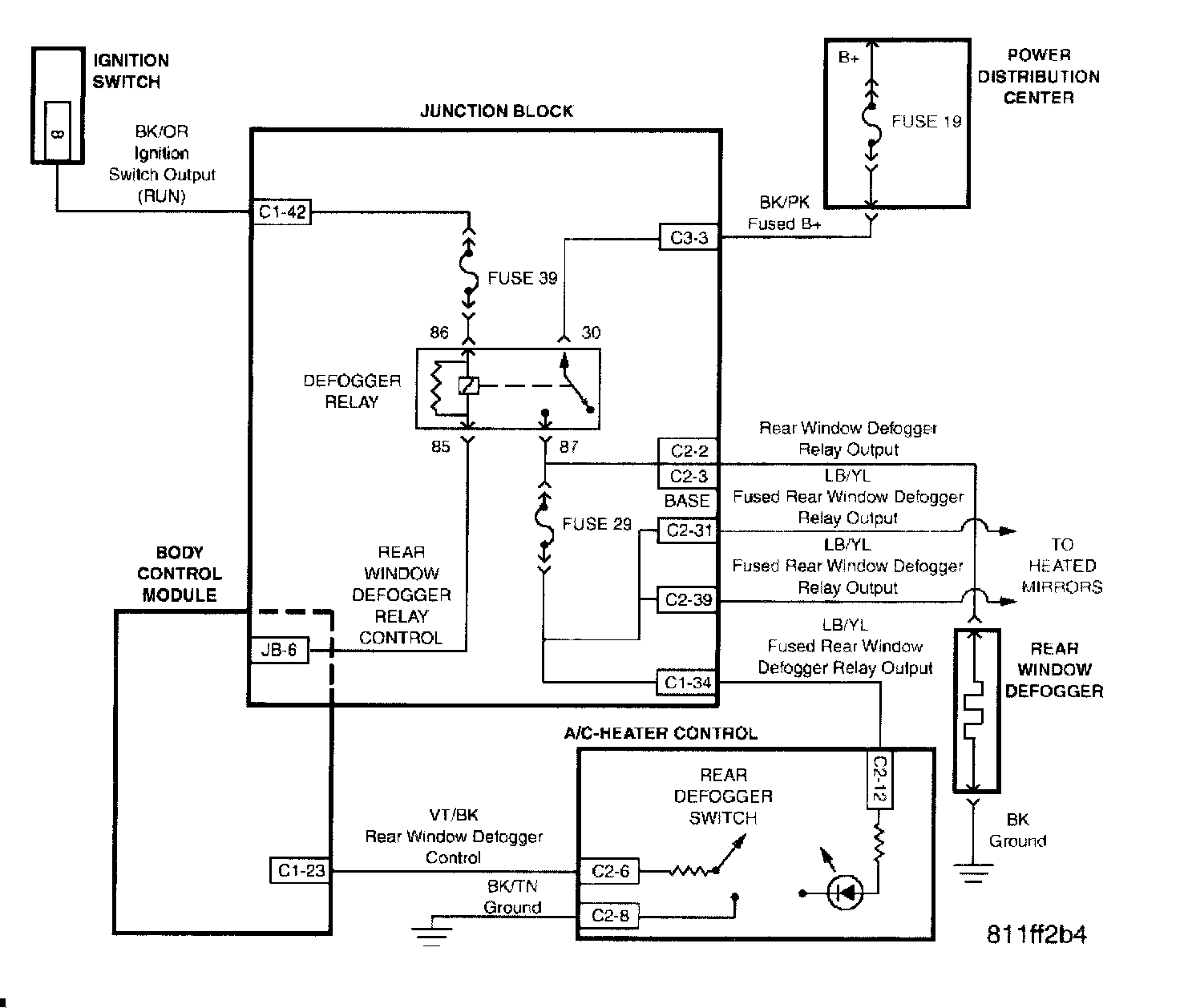

Electrically Heated System:

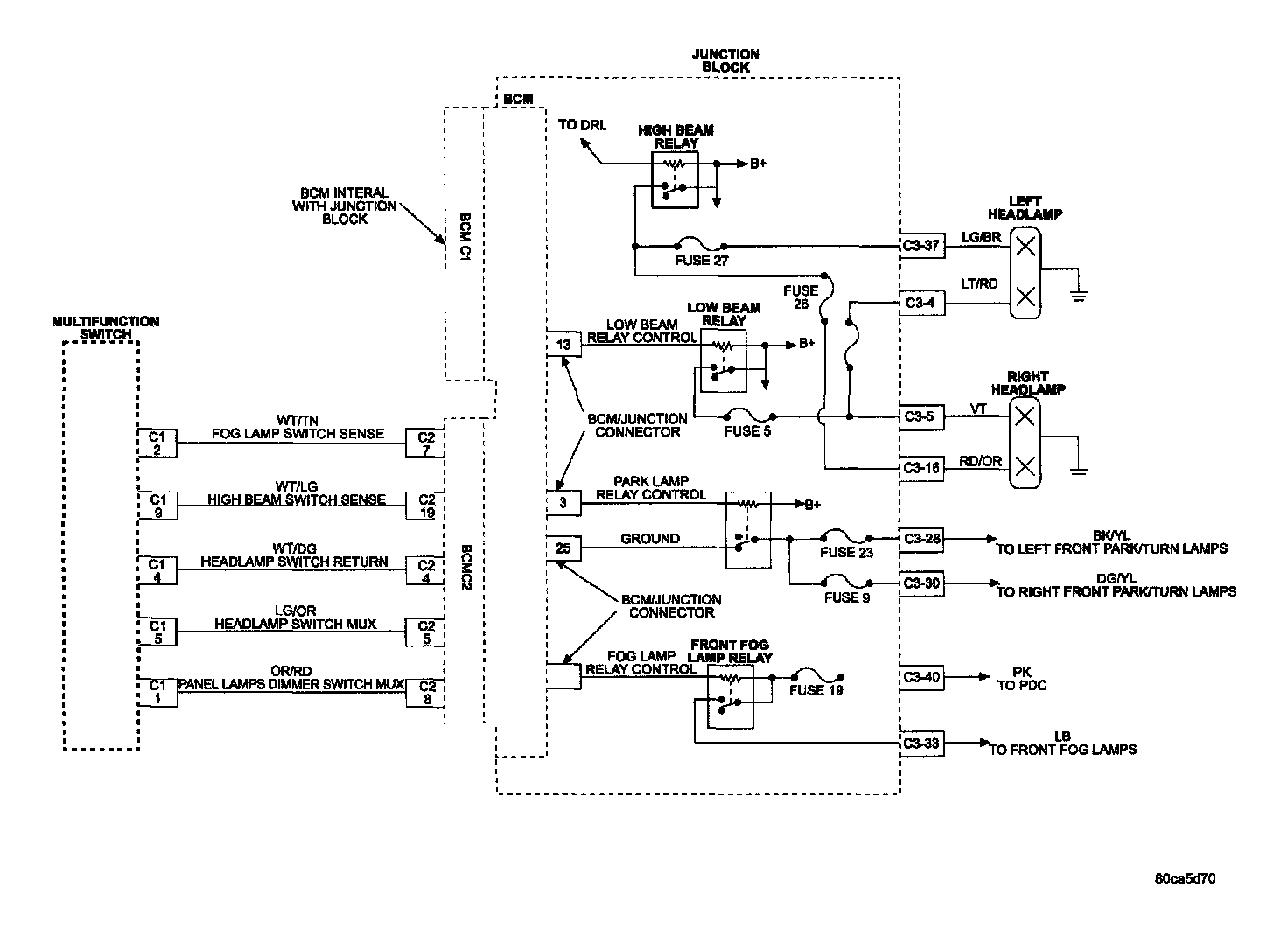

Exterior Lighting:

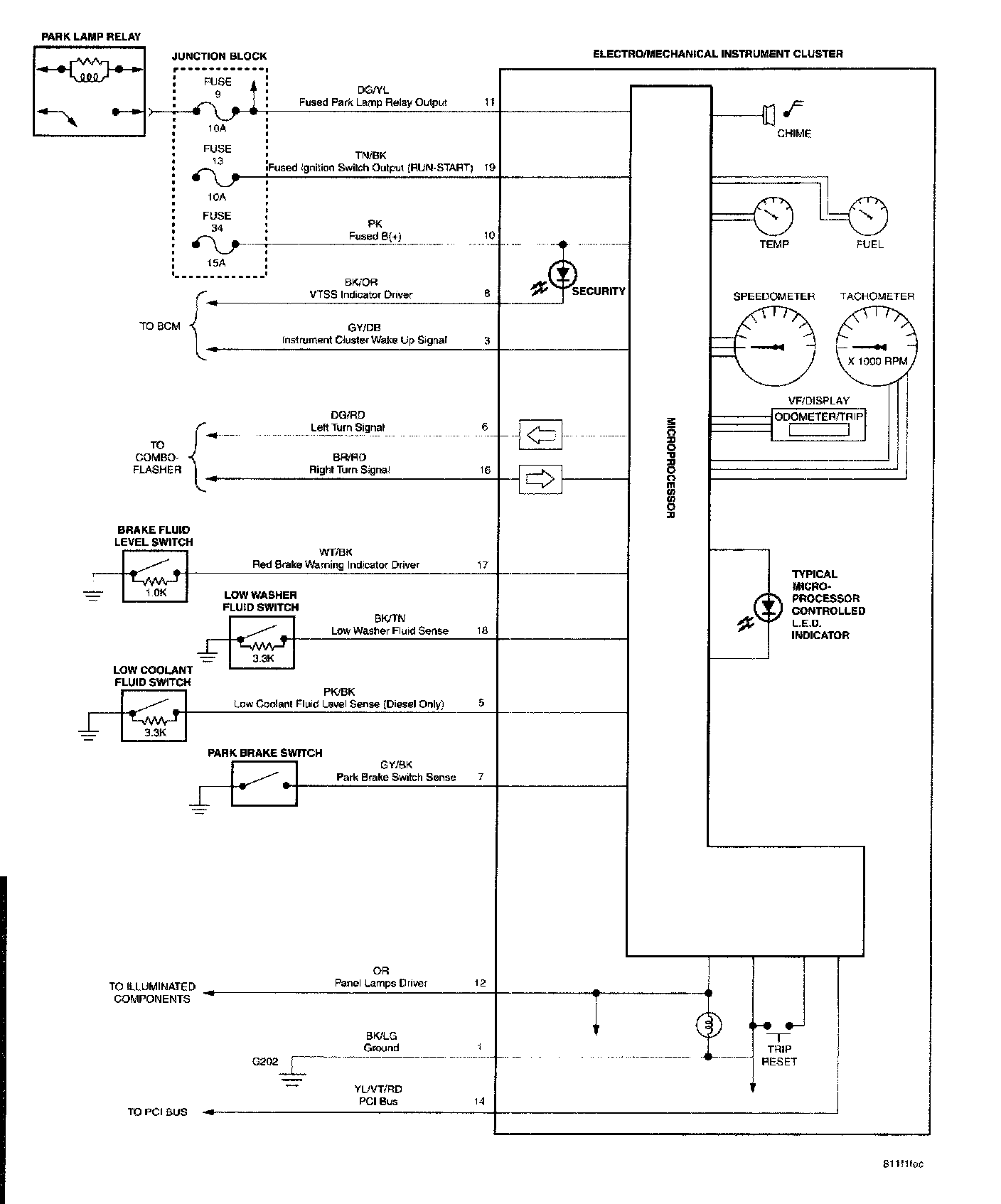

Instrument Cluster:

Interior Lighting:

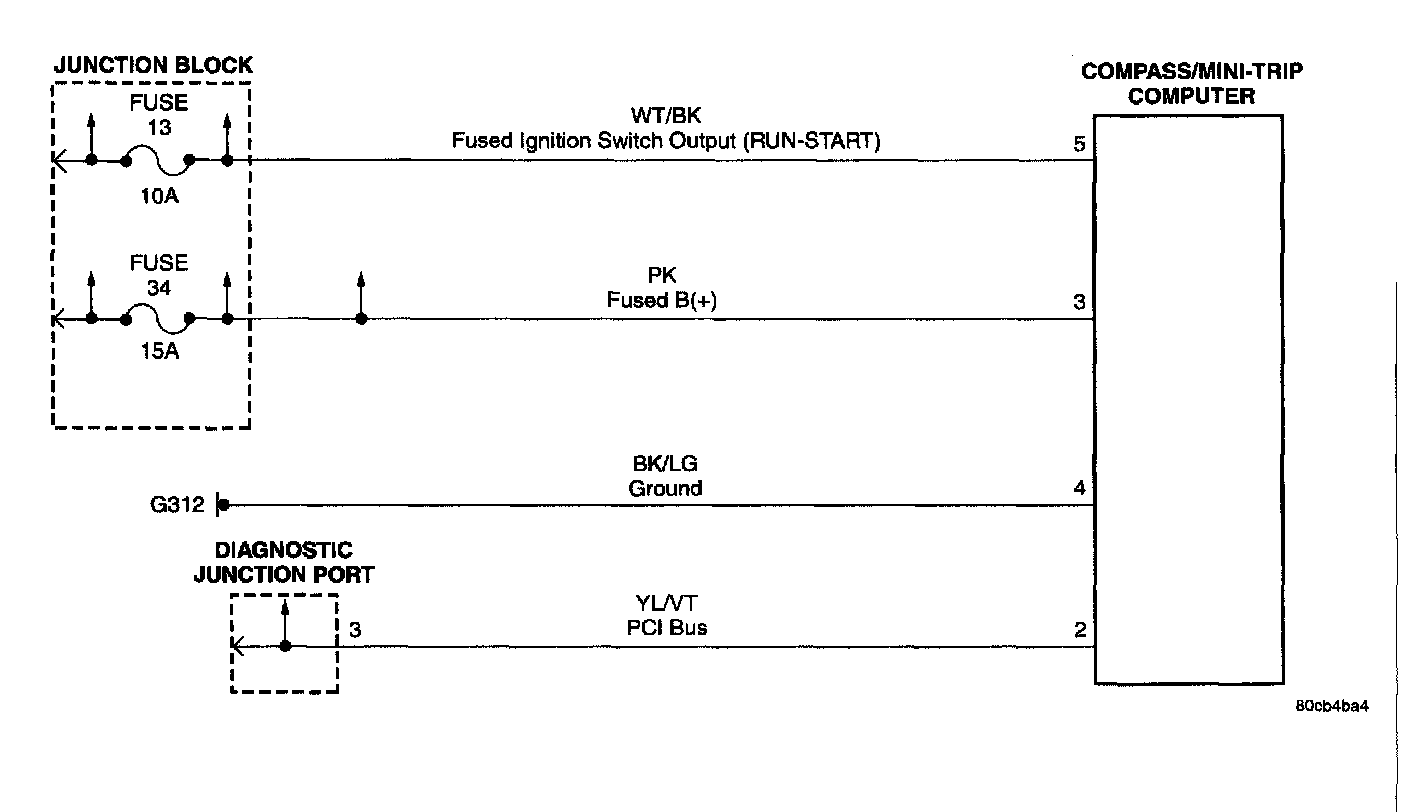

Electronic Vehicle Information Center (EVIC):

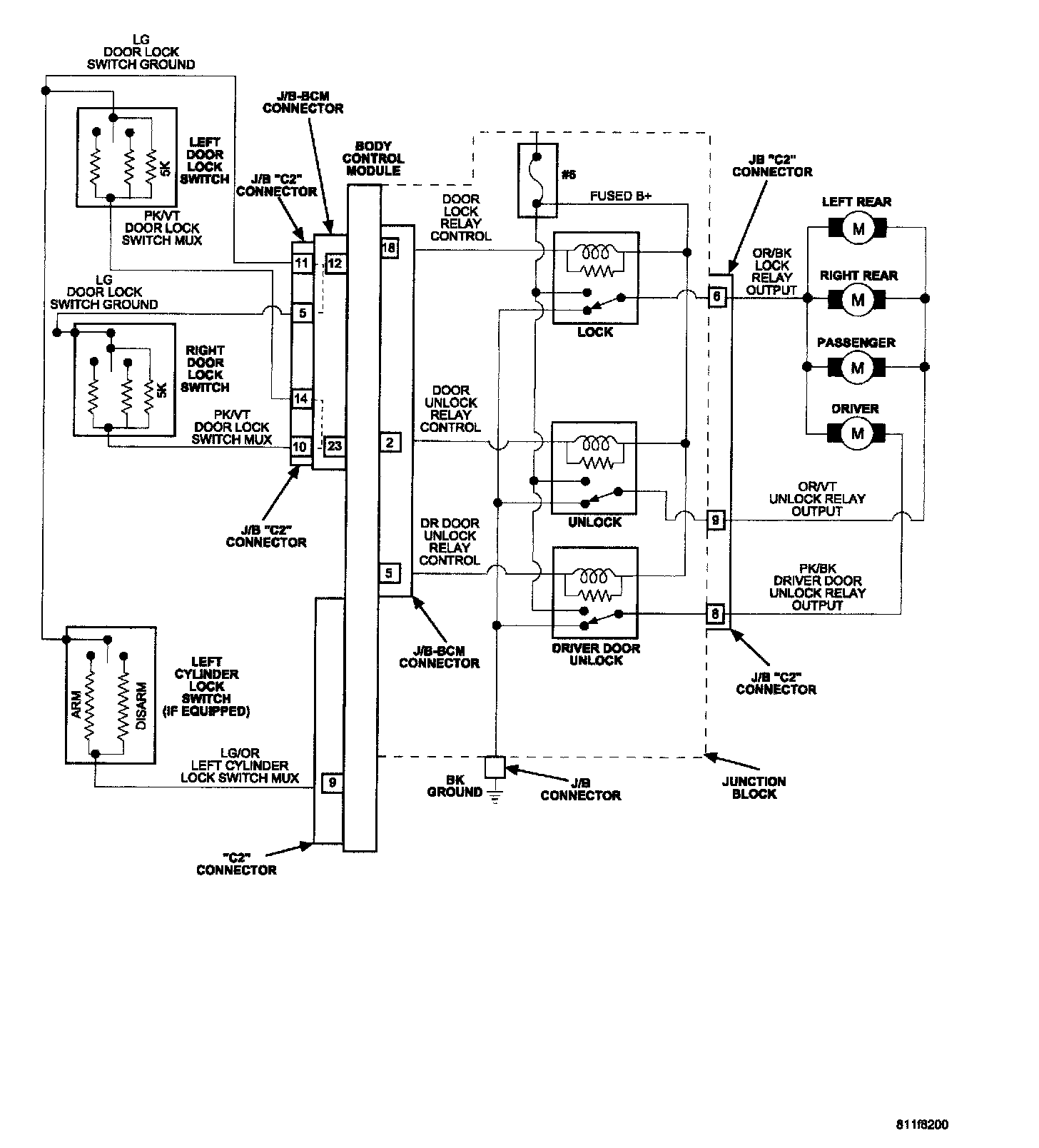

Doors:

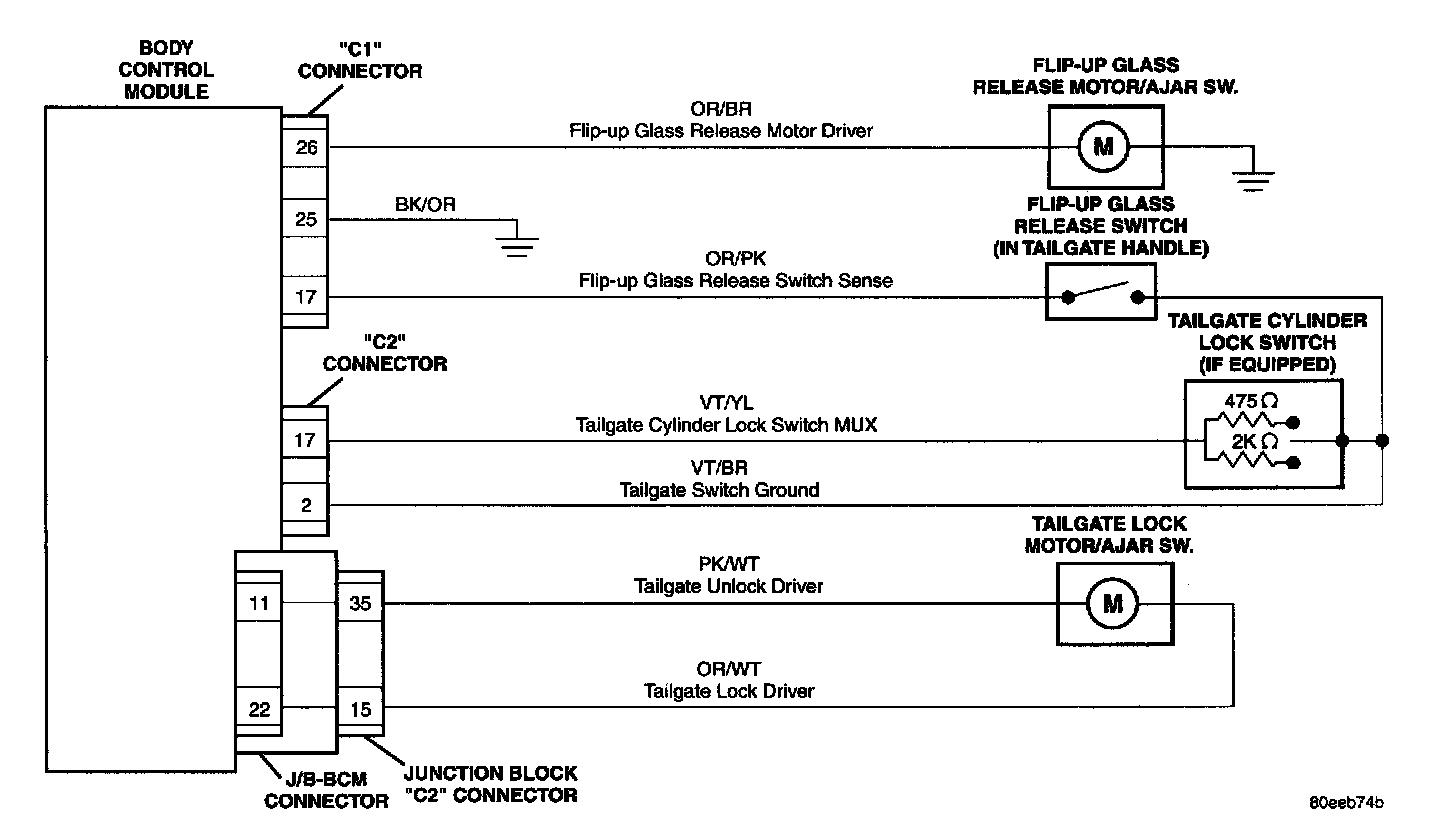

Tailgate And Flip-Up Glass:

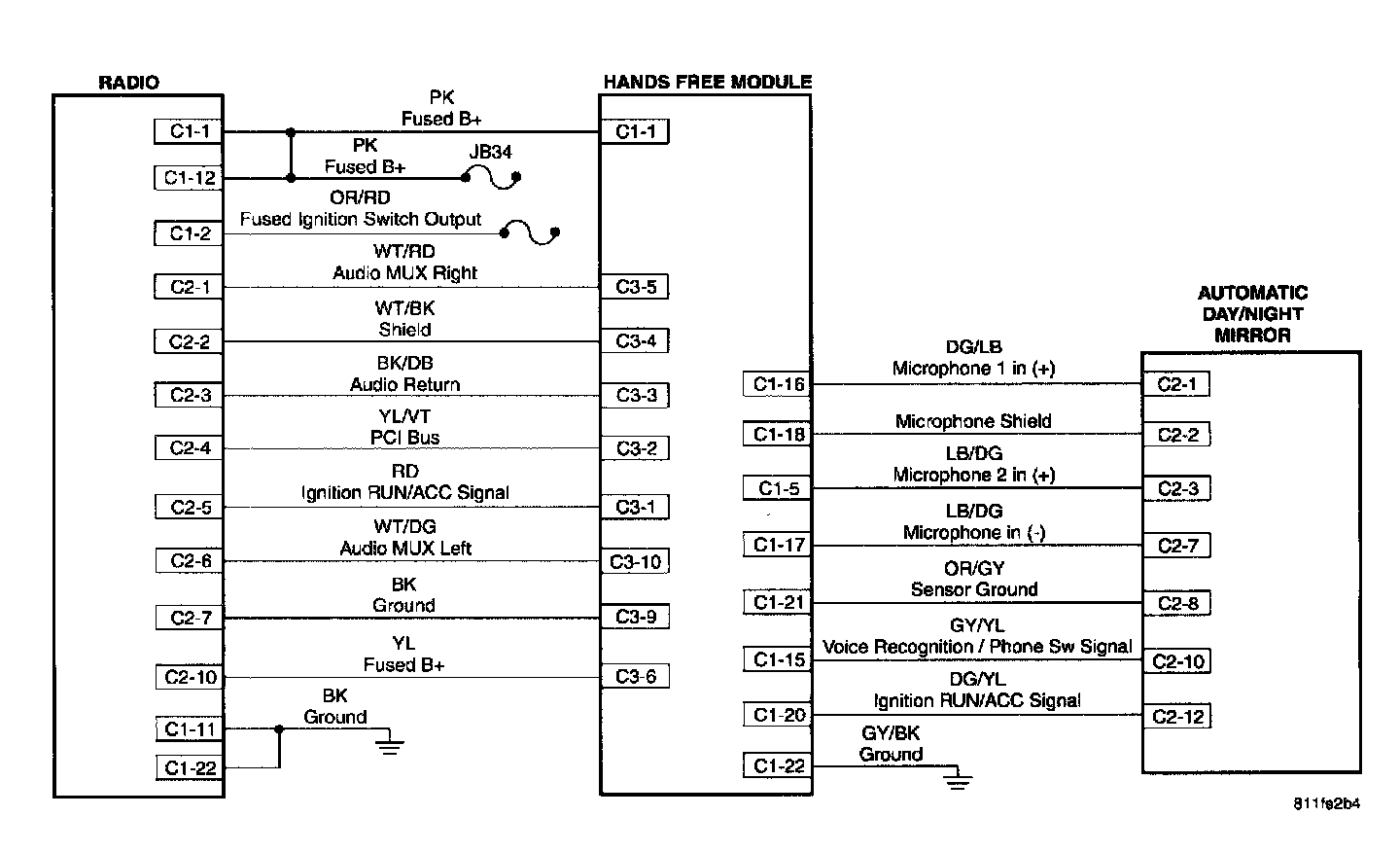

Hands Free Module:

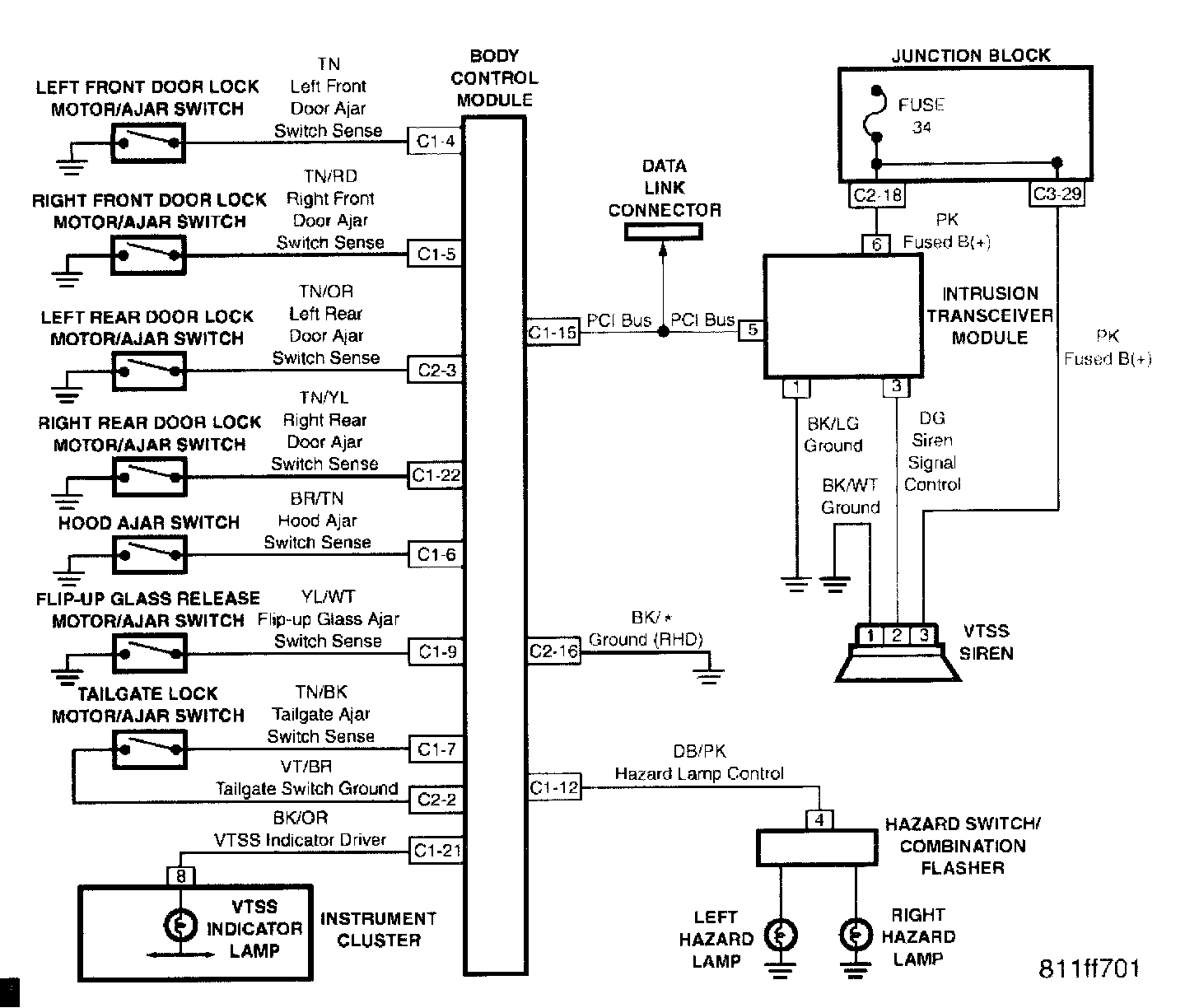

VTSS:

Base - VTSS (Export Only):

Premium - VTSS (Export Only):

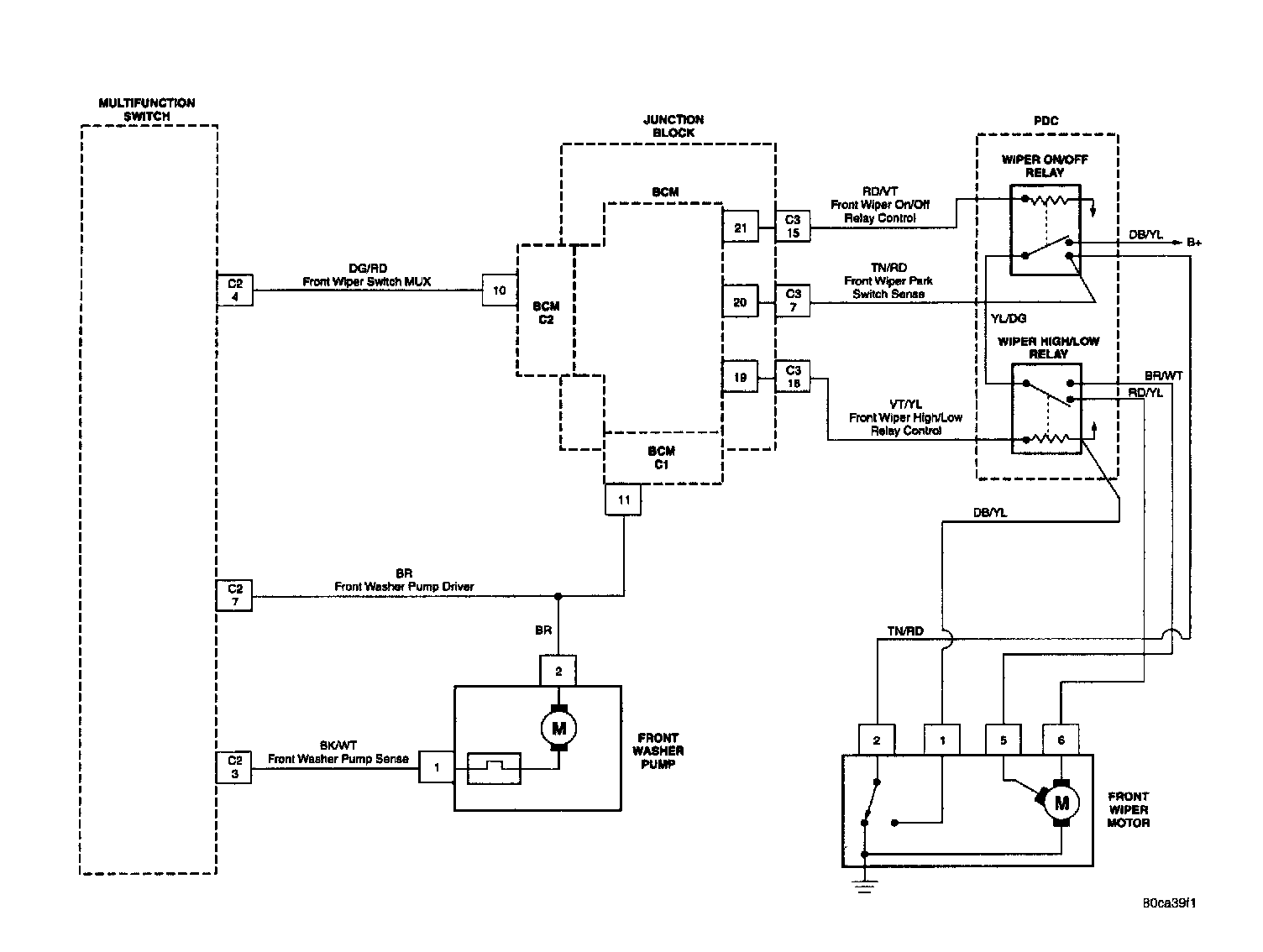

Windshield Wipers:
