Chime Inoperative

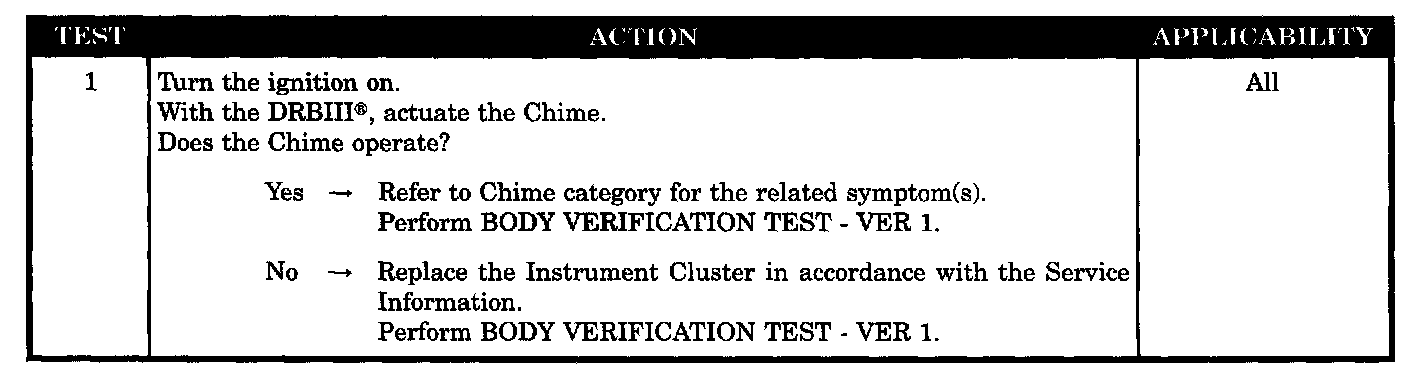

Test 1:






SYMPTOM
CHIME INOPERATIVE

POSSIBLE CAUSES
- Related chime symptoms
- Instrument cluster
