Key In Ignition and Drivers Door Open Chime Inoperative

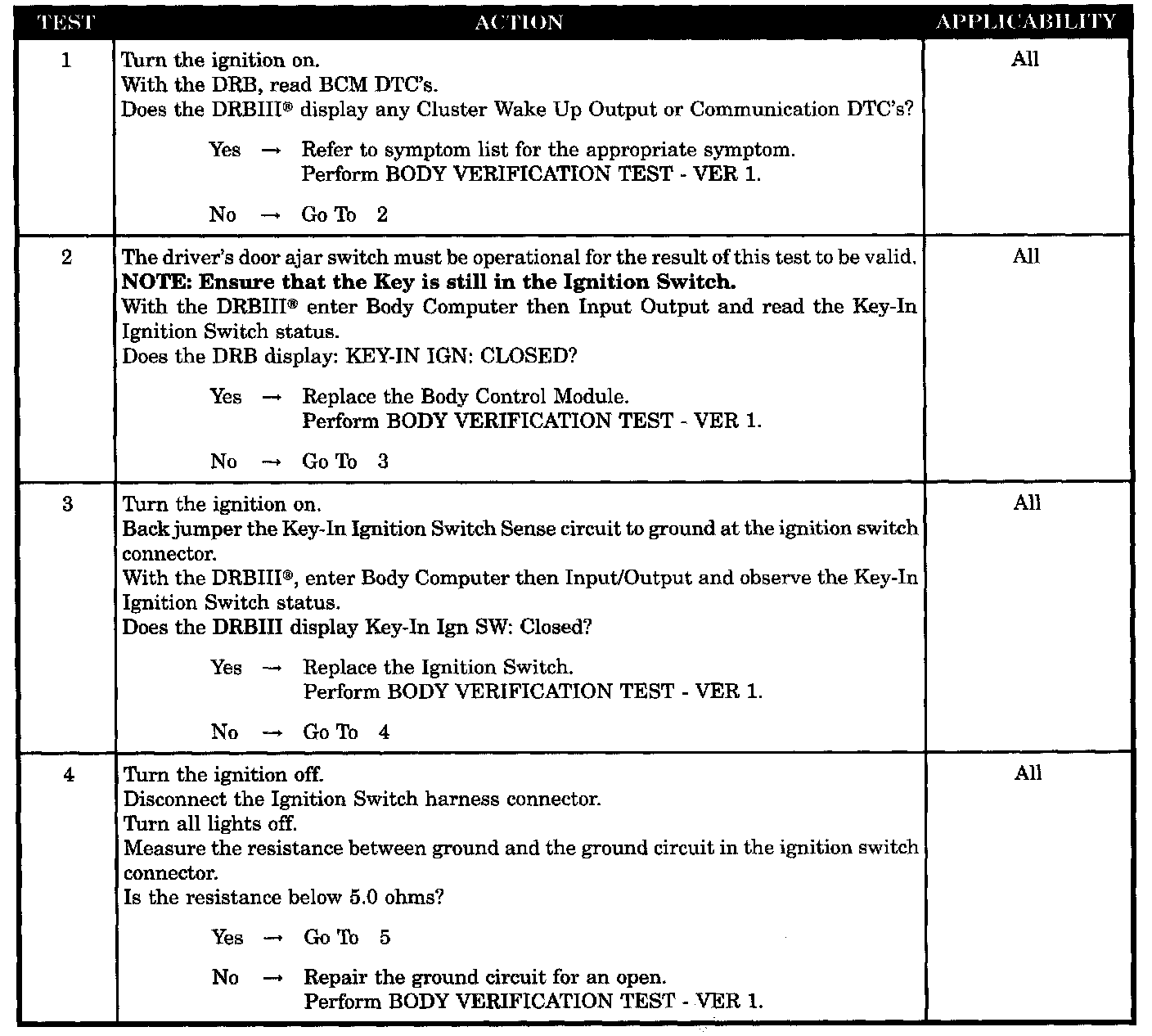

Test 1 - 4:

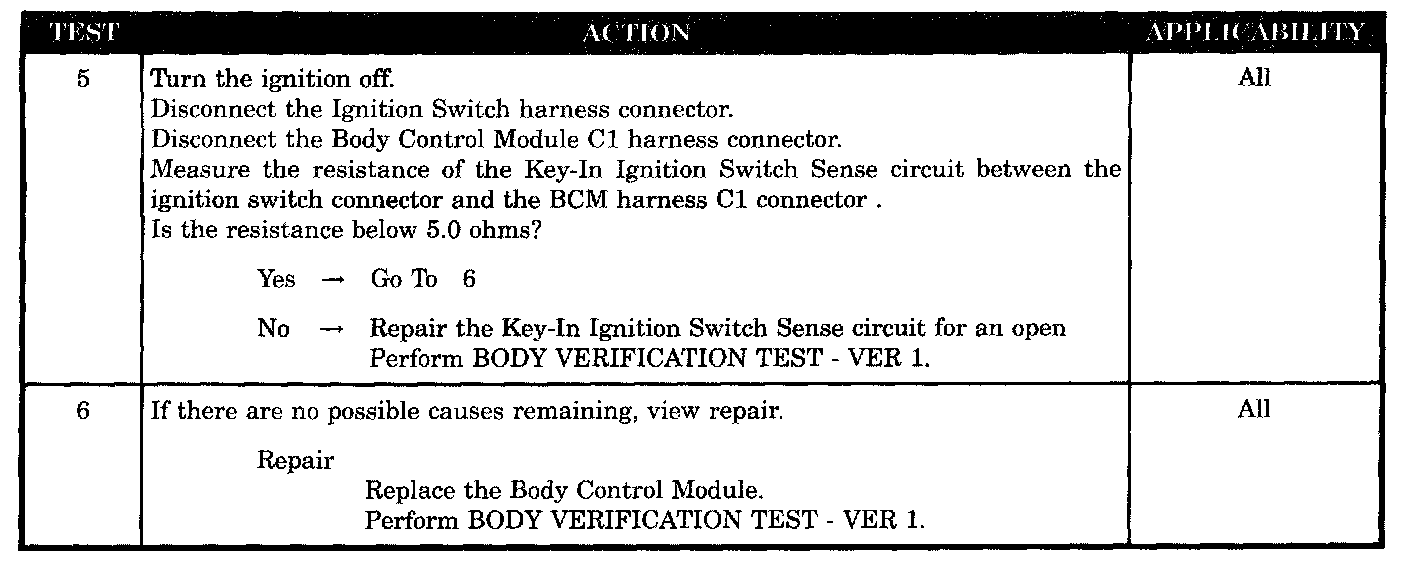

Test 5 - 6:

SYMPTOM
KEY IN IGNITION AND DRIVERS DOOR OPEN CHIME INOPERATIVE

POSSIBLE CAUSES
- Body control module diagnostic trouble code
- Observe the key-in ignition switch status
- Key-in ignition switch open
- Key-in ignition switch ground circuit open
- Key-in ignition switch sense circuit open
- BCM - incorrect key-in ignition switch status
