Tailgate Ajar Circuit Open

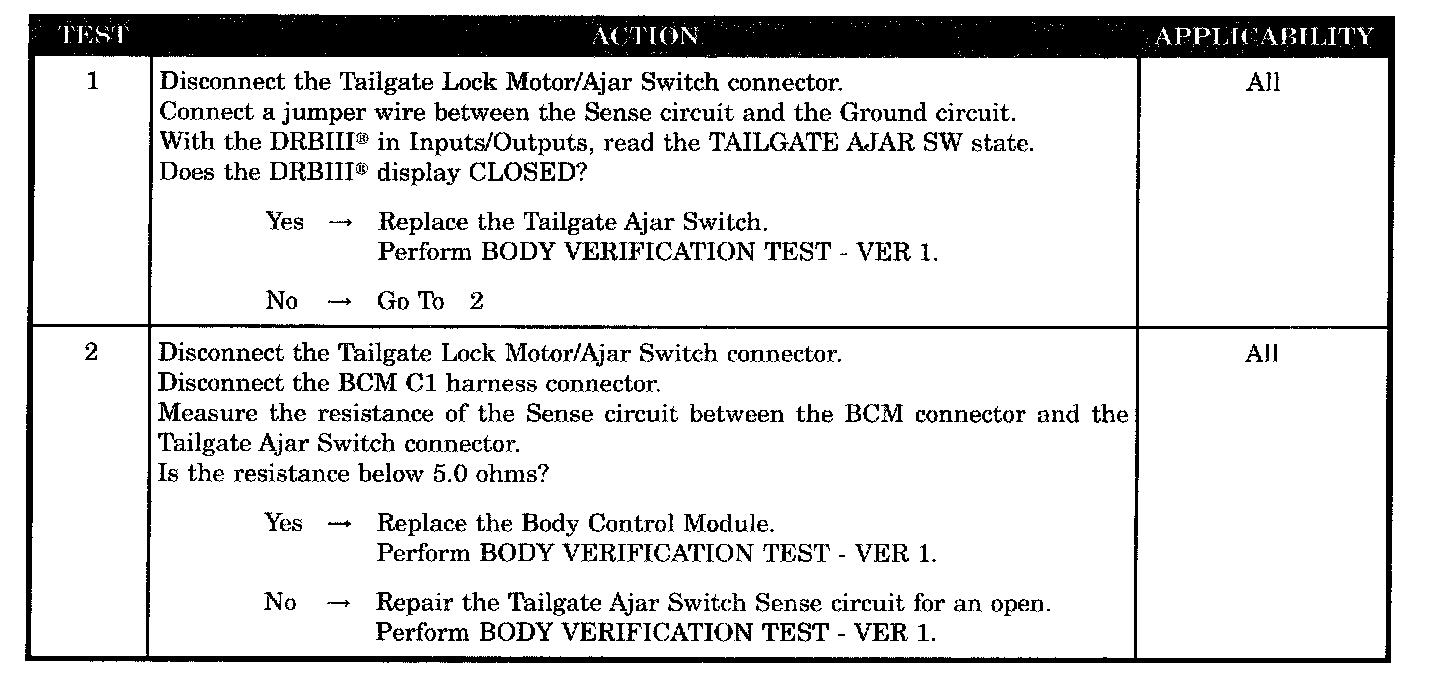

Test 1 - 2:






SYMPTOM
TAILGATE AJAR CIRCUIT OPEN

POSSIBLE CAUSES
- Body control module - internal malfunction
- Tailgate ajar switch
- Tailgate ajar switch sense circuit open
