4WD Indicator Inaccurate

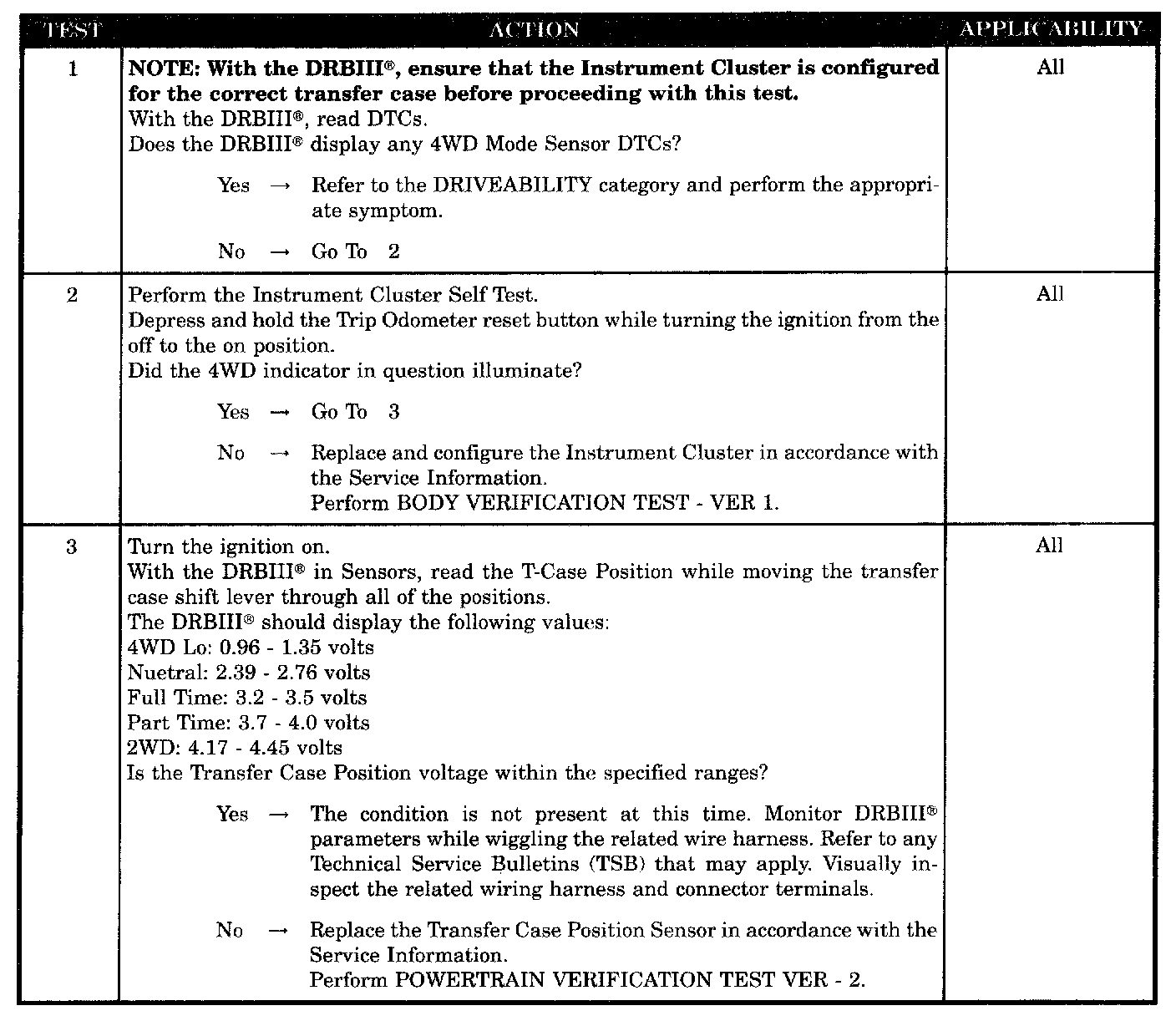

Test 1 - 3:






SYMPTOM
4WD INDICATOR INACCURATE

POSSIBLE CAUSES
- 4WD mode sensor DTC present
- Intermittent condition
- Transfer case position sensor
- Instrument cluster
