Brake Indicator Inoperative

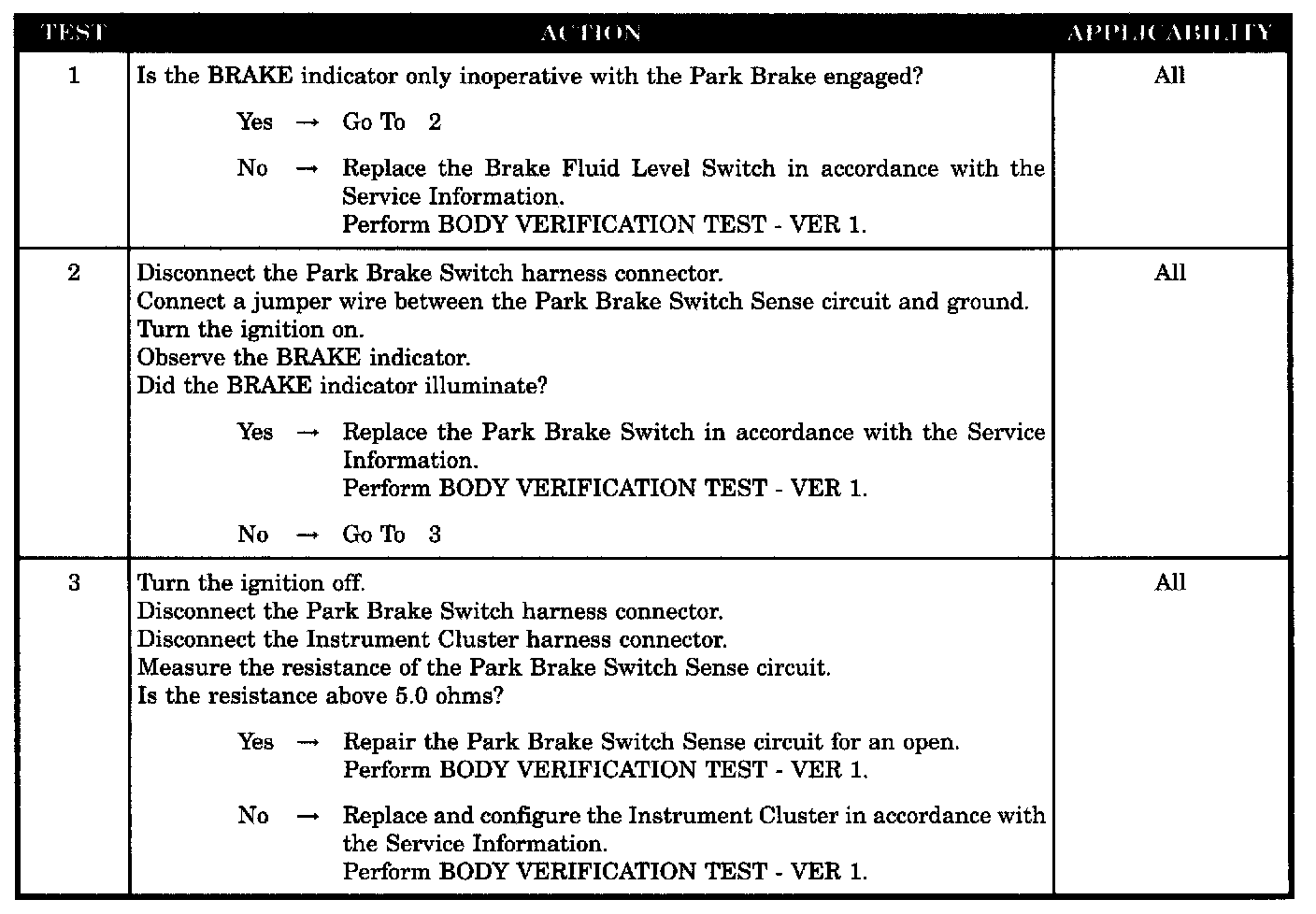

Test 1 - 3:






SYMPTOM
BRAKE INDICATOR INOPERATIVE

POSSIBLE CAUSES
- Brake fluid level switch
- Park brake switch
- Park brake switch sense circuit open
- Instrument cluster
