Fuel Gauge Inaccurate

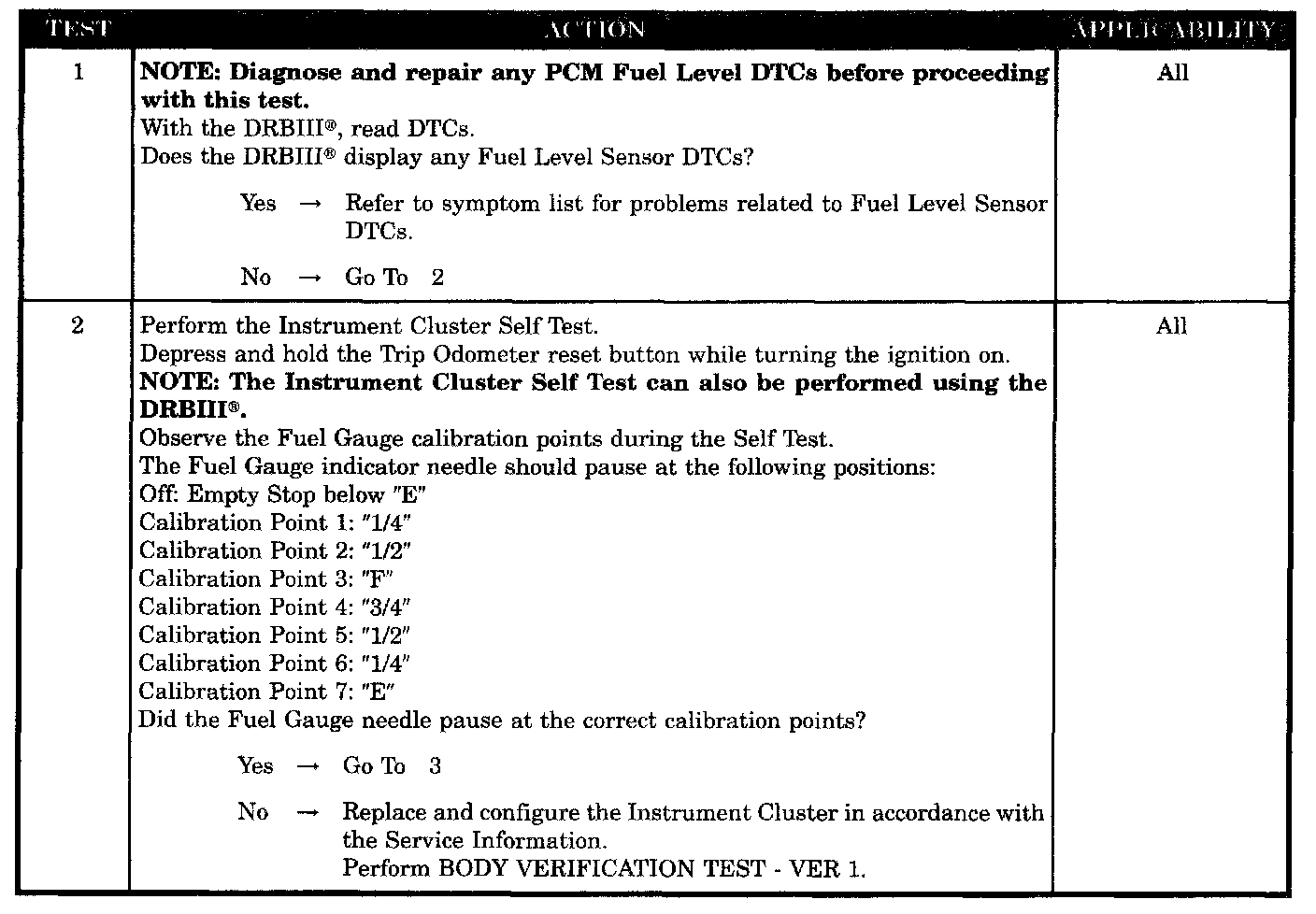

Test 1 - 2:

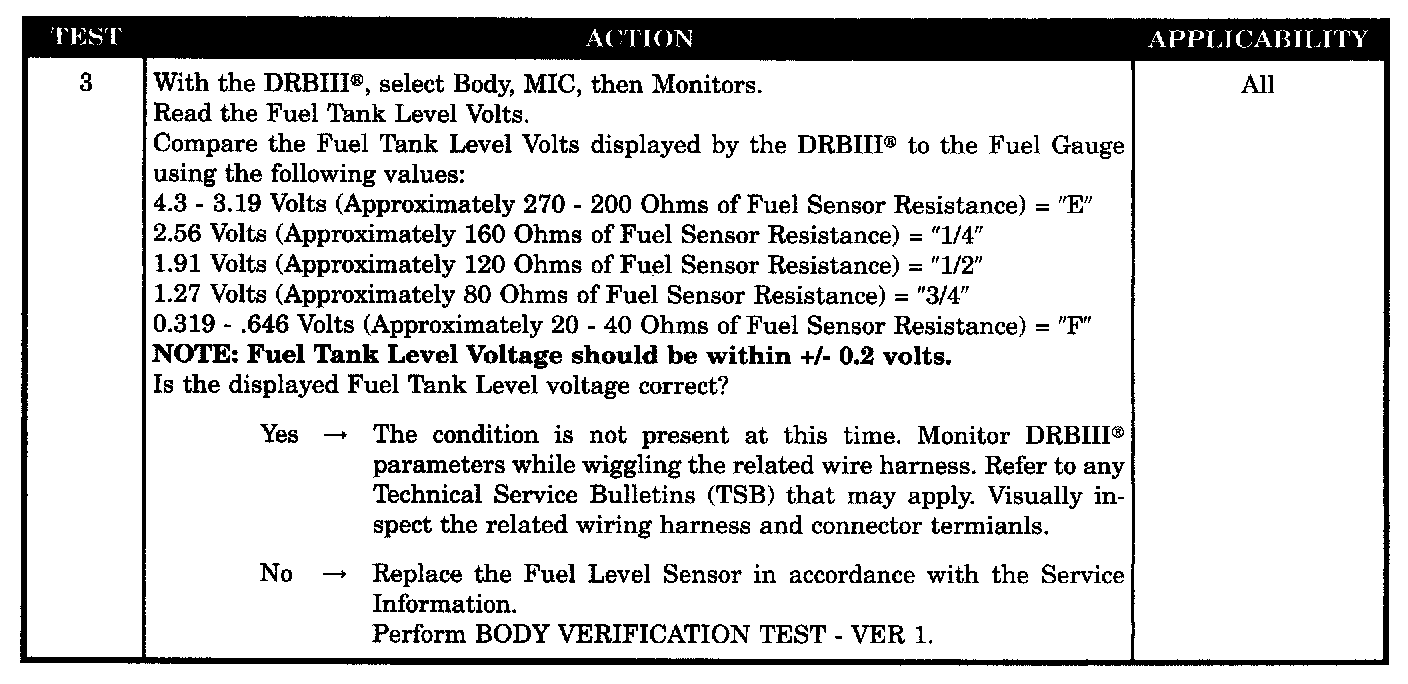

Test 3:






SYMPTOM
FUEL GAUGE INACCURATE

POSSIBLE CAUSES
- Fuel level sensor DTC present
- Intermittent condition
- Fuel level sensor
- Instrument cluster
