Instrument Cluster Inoperative

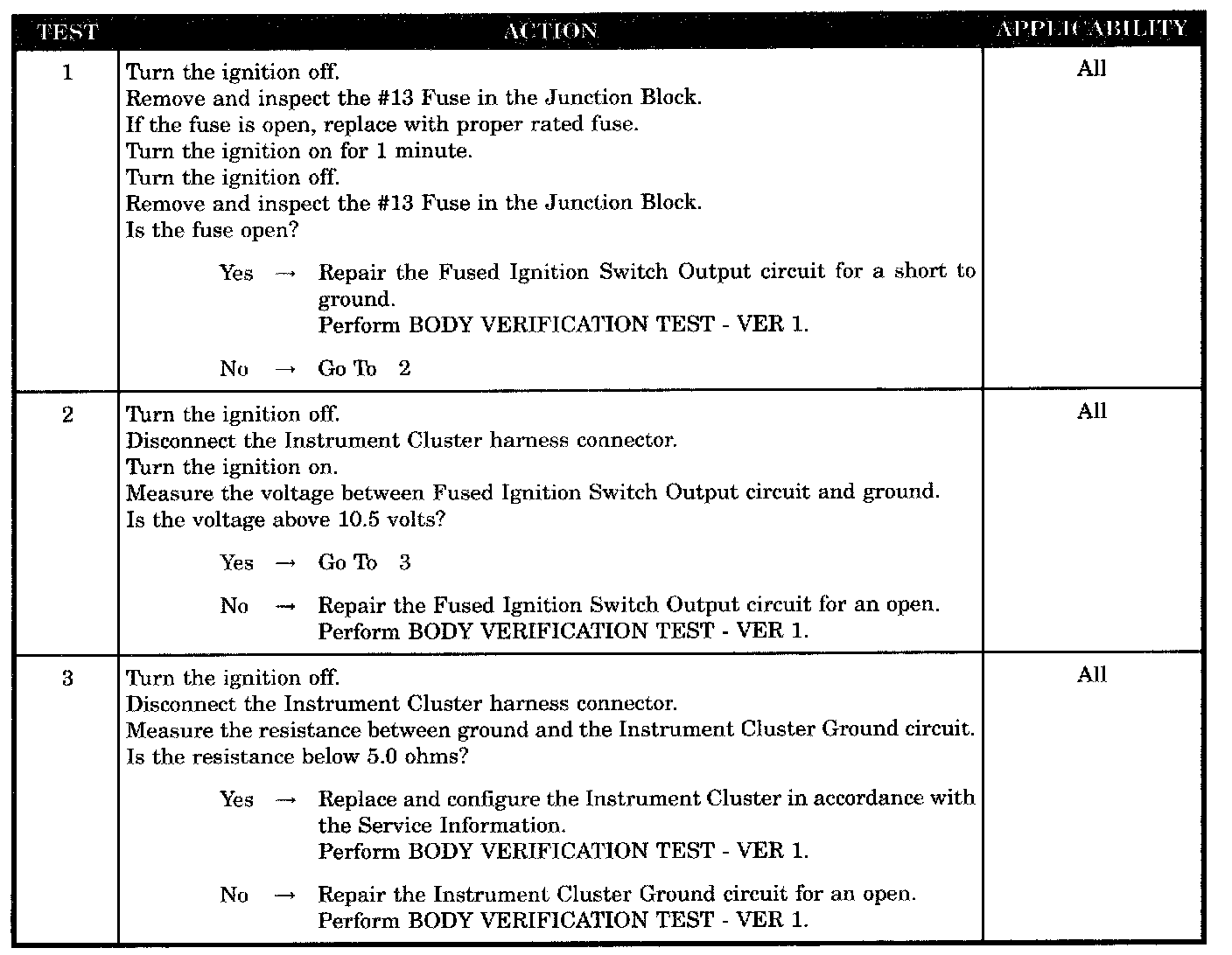

Test 1 - 3:






SYMPTOM
INSTRUMENT CLUSTER INOPERATIVE

POSSIBLE CAUSES
- Fused ignition switch output circuit short to ground
- Fused ignition switch output circuit open
- Instrument cluster ground circuit open
- Instrument cluster
