VTSS Indicator Inoperative

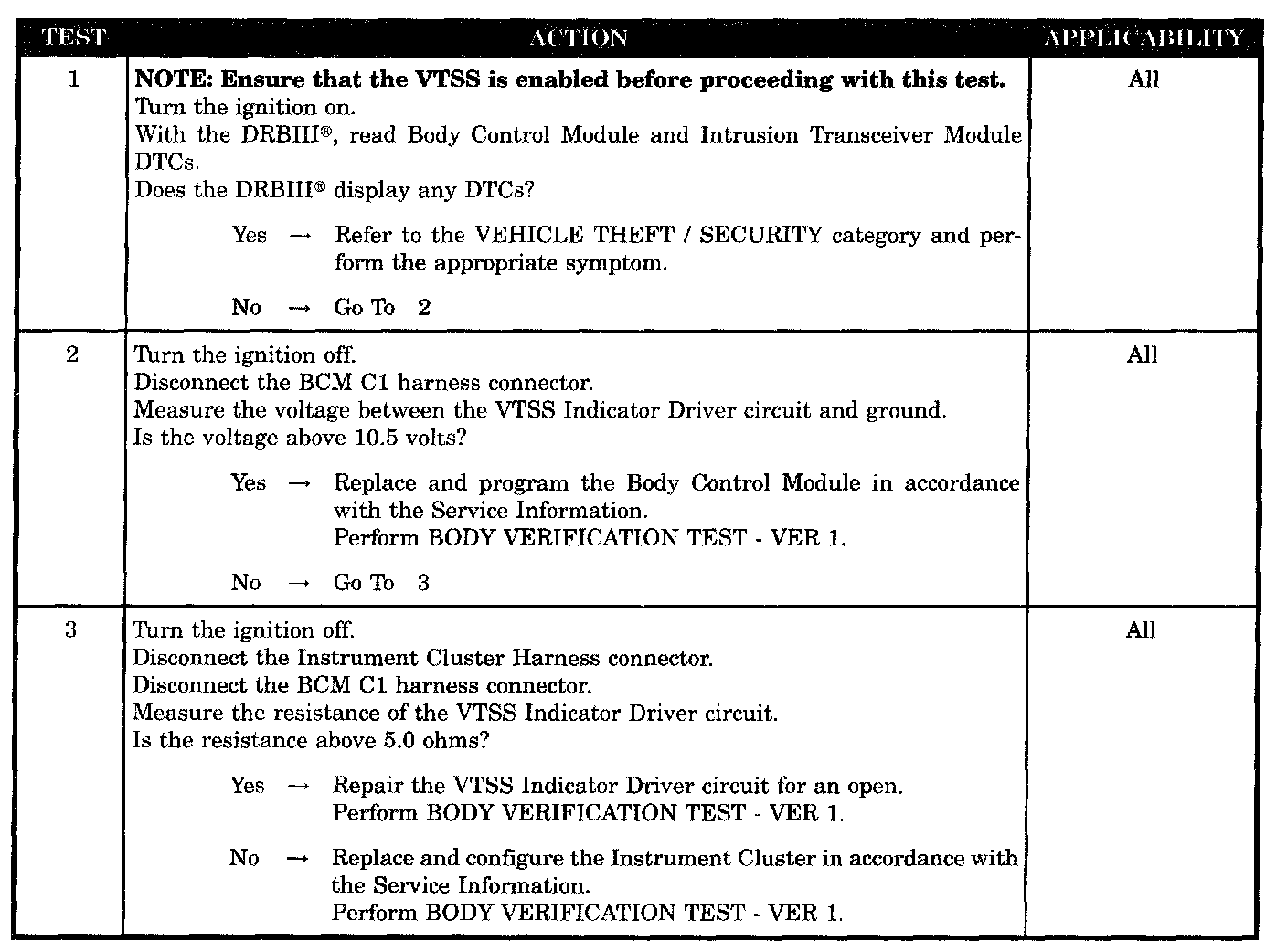

Test 1 - 3:






SYMPTOM
VTSS INDICATOR INOPERATIVE

POSSIBLE CAUSE
- BCM OR ITM DTC present
- VTSS indicator driver circuit open
- Body control module
- Instrument cluster
