Courtesy Lamps Inoperative-Overhead Lamps

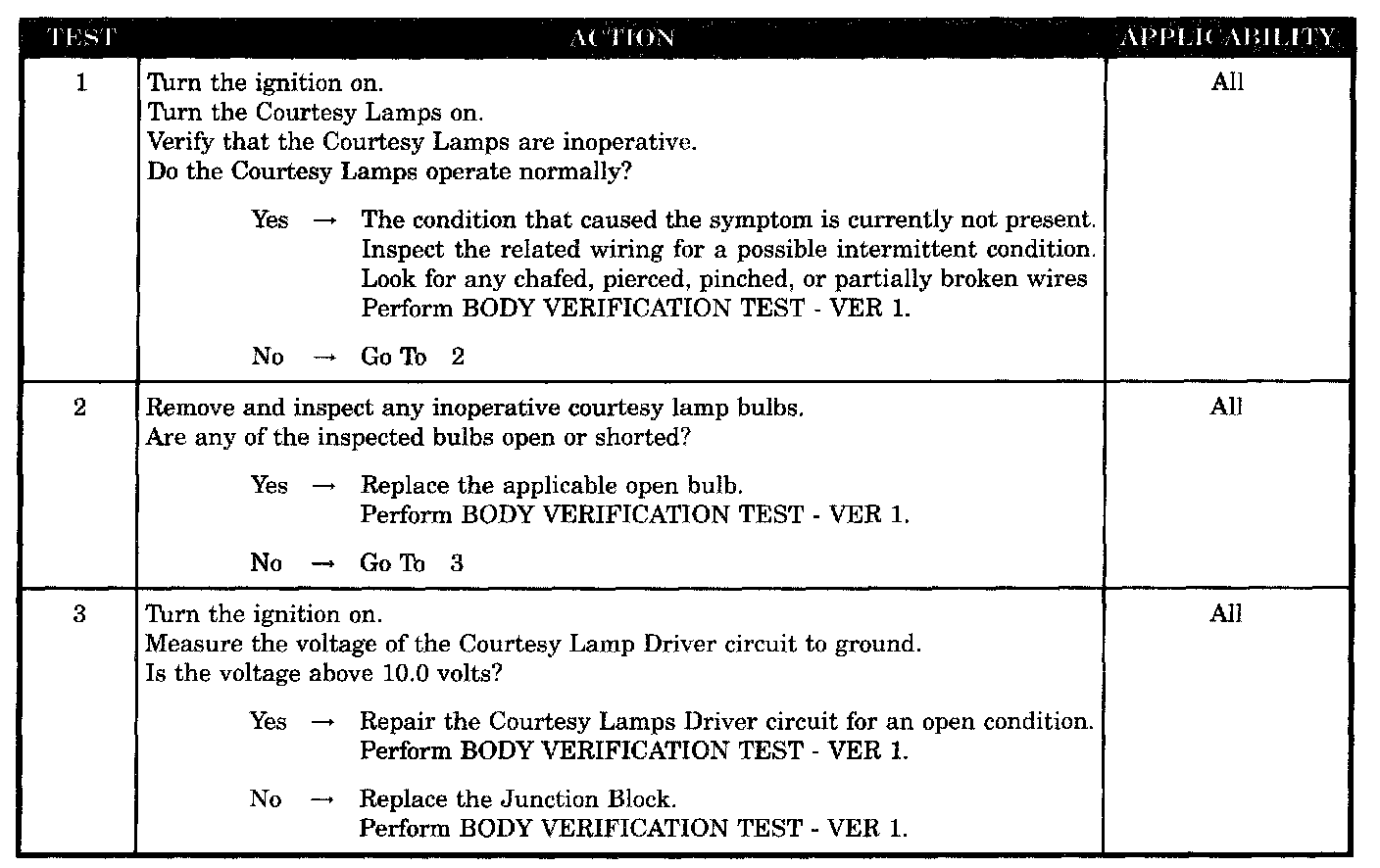

Test 1 - 3:






SYMPTOM
COURTESY LAMPS INOPERATIVE-OVERHEAD LAMPS

POSSIBLE CAUSES
- Intermittent condition
- Junction block
- Open bulb
- Courtesy lamp driver circuit open
