Temperature Display Inoperative or Wrong

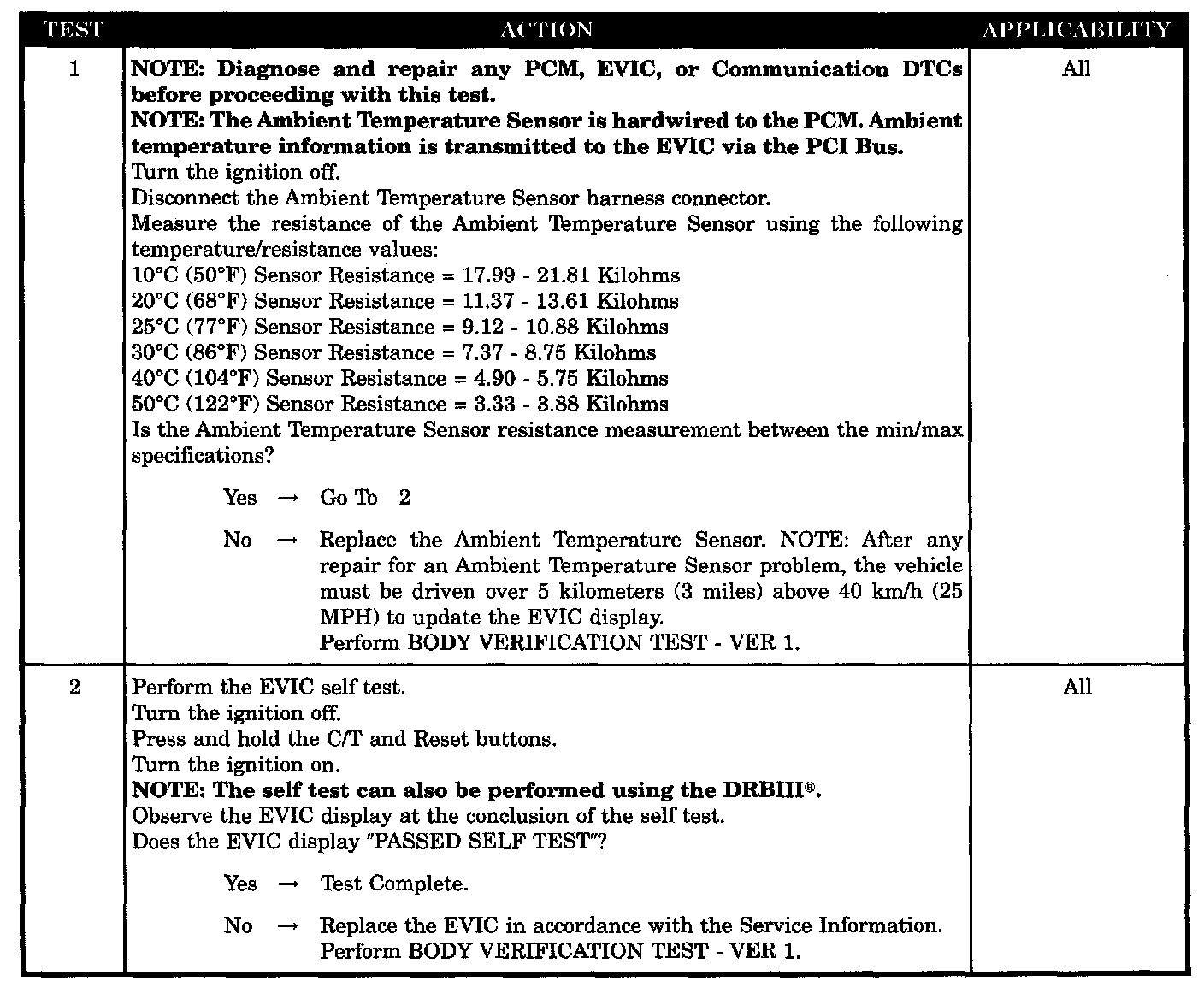

Test 1 - 2:






SYMPTOM
TEMP DISPLAY INOPERATIVE OR WRONG

POSSIBLE CAUSES
- Fused B+ circuit open
- Fused ignition switch output circuit open
- Ground circuit open
- Electronic vehicle information center
