Flip-Up Glass Does Not Trip VTSS

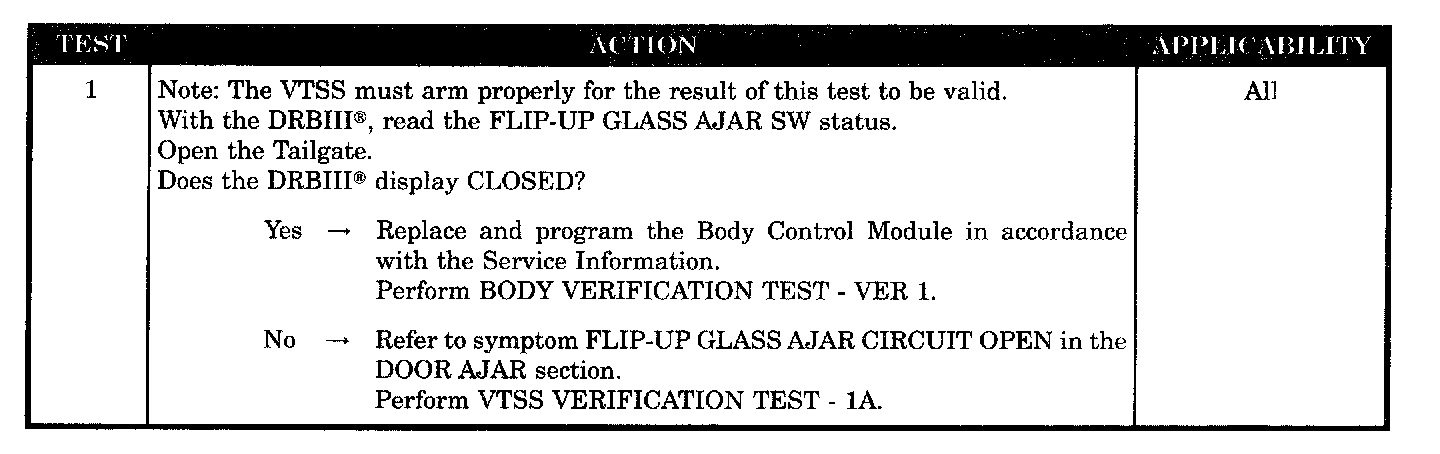

Test 1:






SYMPTOM
FLIP-UP GLASS DOES NOT TRIP VTSS

POSSIBLE CAUSES
- Flip-up glass ajar circuit
- Body control module
