Engine Control Module

Powertrain Control Module C1:



Powertrain Control Module C2:

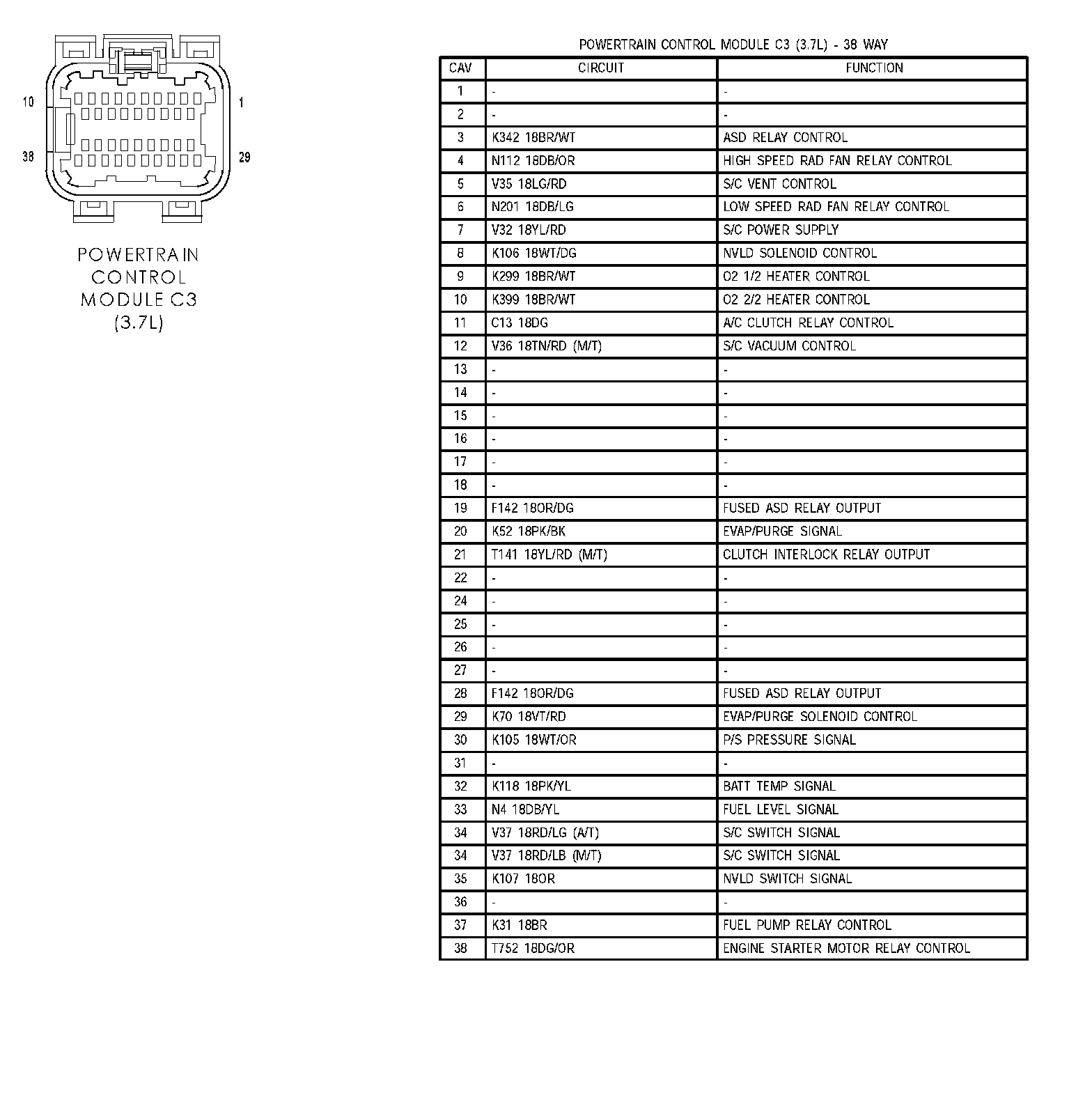

Powertrain Control Module C3 (3.7L):

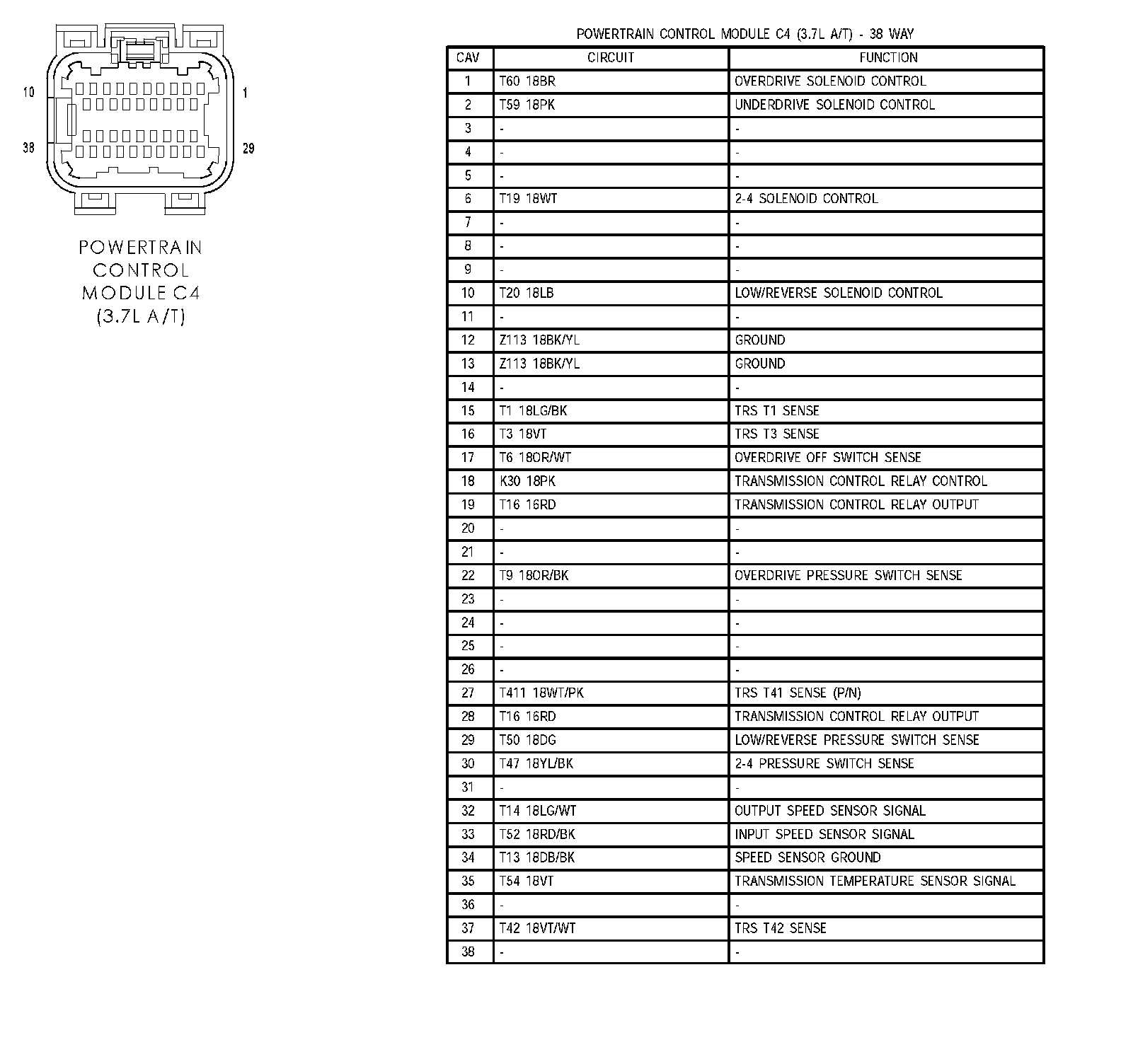

Powertrain Control Module C4 (3.7L A/T):
