Heating and Air Conditioning: Specifications

A/C System Specification Chart Part 1:

A/C System Specification Chart Part 2:

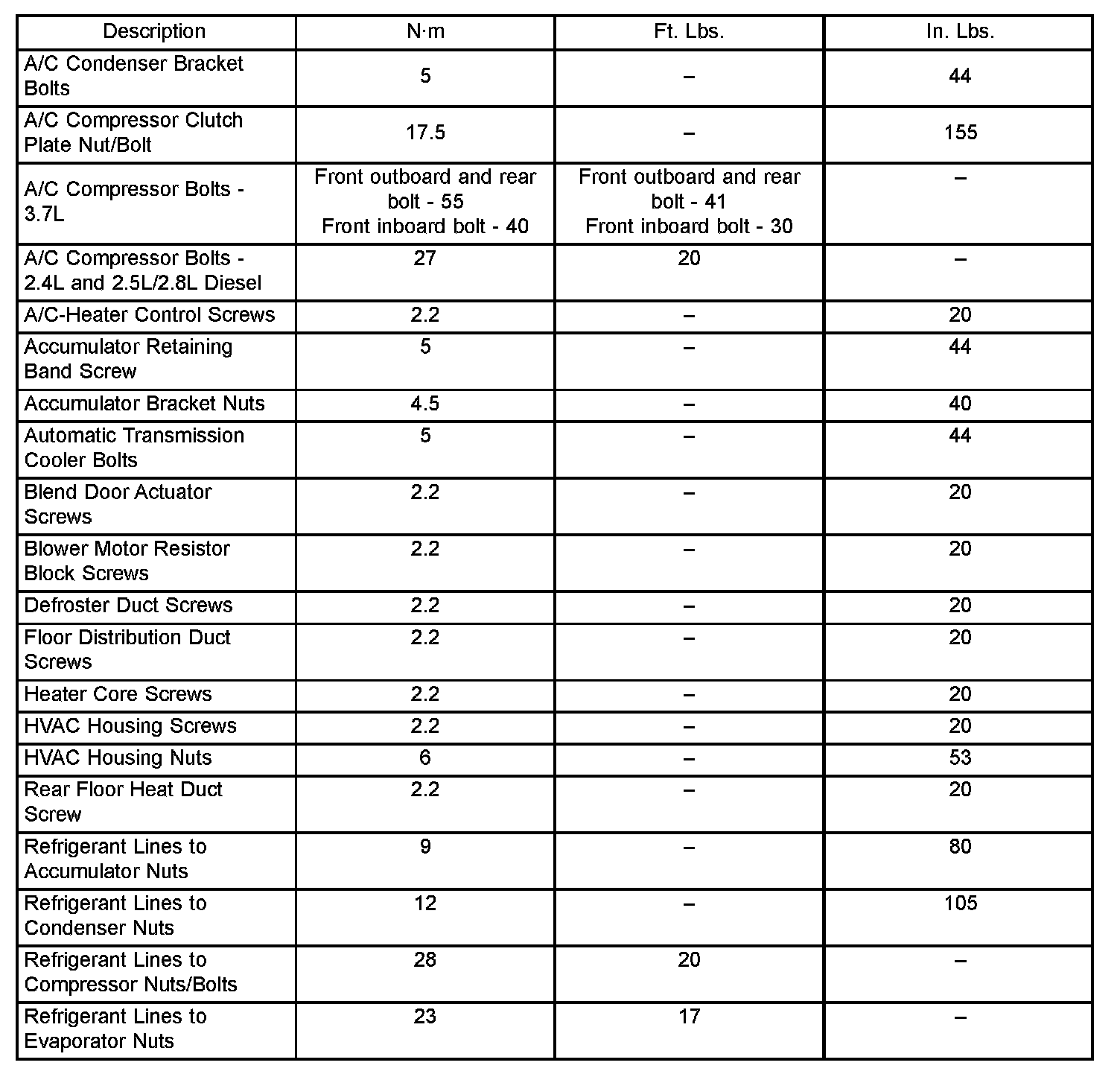

Torque Specifications:

The R-134a refrigerant system charge capacity for this vehicle can be found on the underhood Specification Label.
