Manifold Pressure/Vacuum Sensor: Service and Repair

REMOVAL

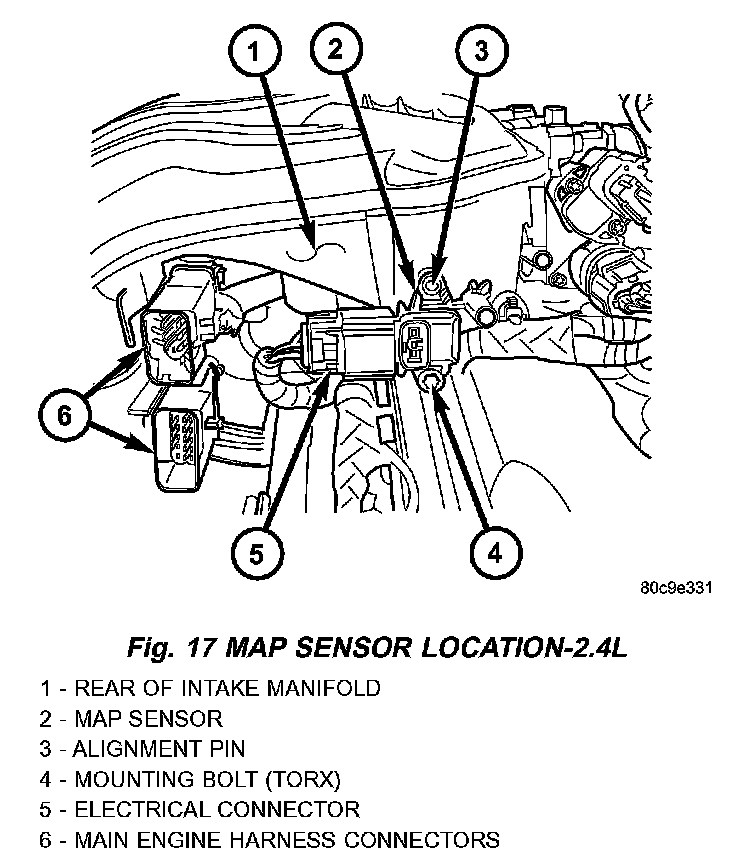

Fig.17 MAP Sensor Location - 2.4L:

Fig.10 MAP Sensor (O-Ring):

The Manifold Absolute Pressure (MAP) sensor is mounted into the rear of the intake manifold. An O-ring is used to seal the sensor to the intake manifold.
1. Disconnect electrical connector at sensor.
2. Clean area around MAP sensor.
3. Remove sensor mounting screw (TORX head).
4. Remove MAP sensor from intake manifold.
5. Check condition of sensor O-ring.

INSTALLATION
The Manifold Absolute Pressure (MAP) sensor is mounted into the rear of the intake manifold. An O-ring is used to seal the sensor to the intake manifold.
1. Clean MAP sensor mounting hole at intake manifold.
2. Check MAP sensor O-ring seal for cuts or tears.
3. Position sensor into manifold.
4. Install MAP sensor mounting screws. Tighten screw to 3 Nm (25 in. lbs.) torque.
5. Connect electrical connector.
