Rear Wheel Speed Sensor: Removal

  1. Raise vehicle on hoist.
  2. Disconnect the sensor wire harness.
  3. Remove mounting stud from the sensor.
  4. Remove sensor.

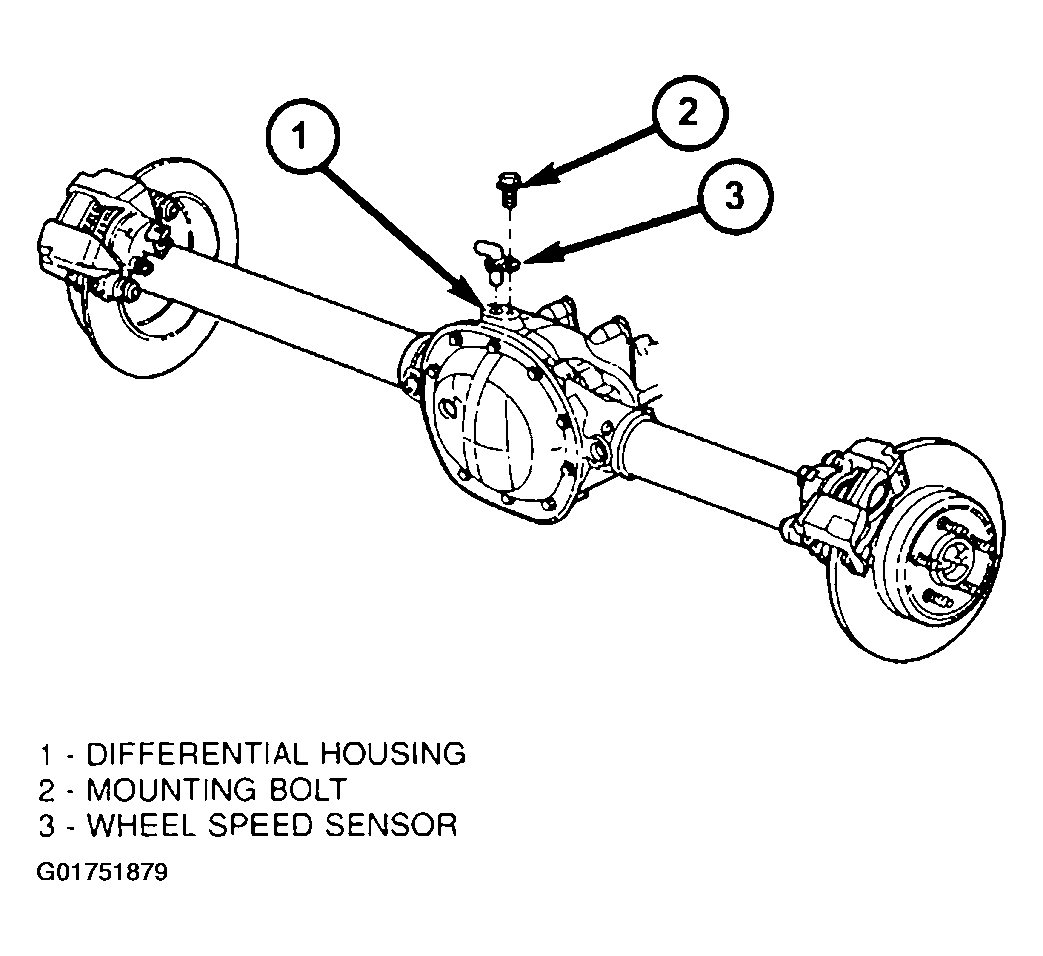

    Fig 1: Removing & Installing Rear Wheel Speed Sensor
    G01751879Courtesy of DAIMLERCHRYSLER CORP.
