Intrusion Transceiver Module: Installation

  1. Position the Intrusion Transceiver Module (ITM) to the headliner.
  2. Reconnect the overhead wire harness connector for the ITM to the module connector.
  3. Align the two front latch features of the ITM with the mounting bracket above the headliner.

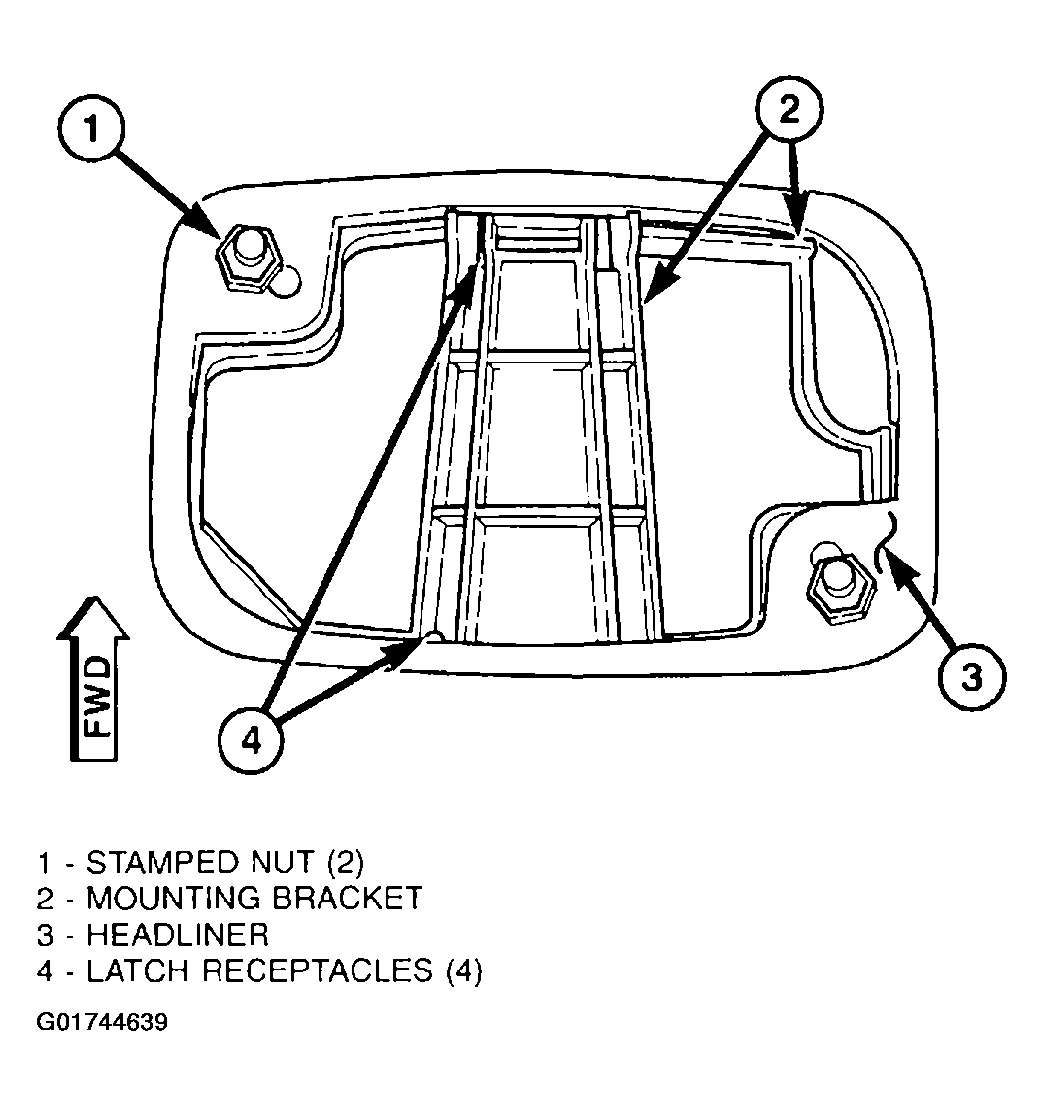

    Fig 1: Aligning Intrusion Transceiver Module Mounting Bracket
    G01744639Courtesy of DAIMLERCHRYSLER CORP.
  4. Push the ITM trim cover forward far enough to insert the two integral rear latch features of the module into the two rear latch receptacles of the mounting bracket above the headliner.
  5. Push upward and evenly on the rear edge of the ITM trim cover until the two rear latch features of the module are engaged in the mounting bracket above the headliner.
  6. Reconnect the battery negative cable.
NOTE: If the Intrusion Transceiver Module (ITM) has been replaced with a new unit, the new ITM MUST be initialized before the Vehicle Theft Security System can operate as designed. The use of a DRBIII(R) scan tool is required to initialize the ITM. Refer to the appropriate diagnostic information.
