Heated Seat Module: Removal

  1. Working under the front seat cushion, remove the heated seat module from its mounting bracket by gently prying the module off of the two mounting pushpins.

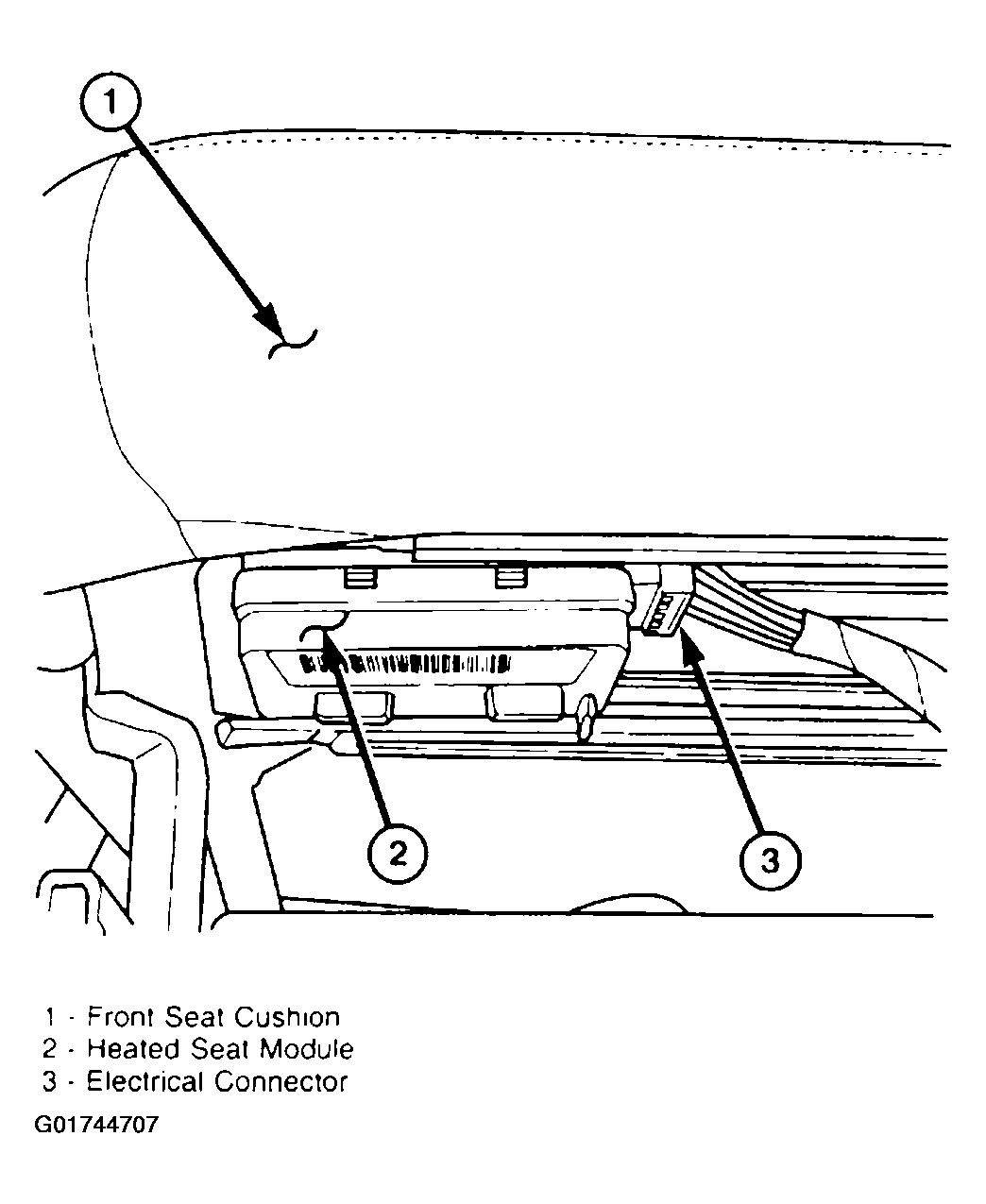

    Fig 1: Locating Heated Seat Module
    G01744707Courtesy of DAIMLERCHRYSLER CORP.
  2. Disconnect the seat wire harness connector from the connector receptacle on the side of the heated seat module.
  3. Remove the heated seat module from the vehicle.
