Airbag System: Notes

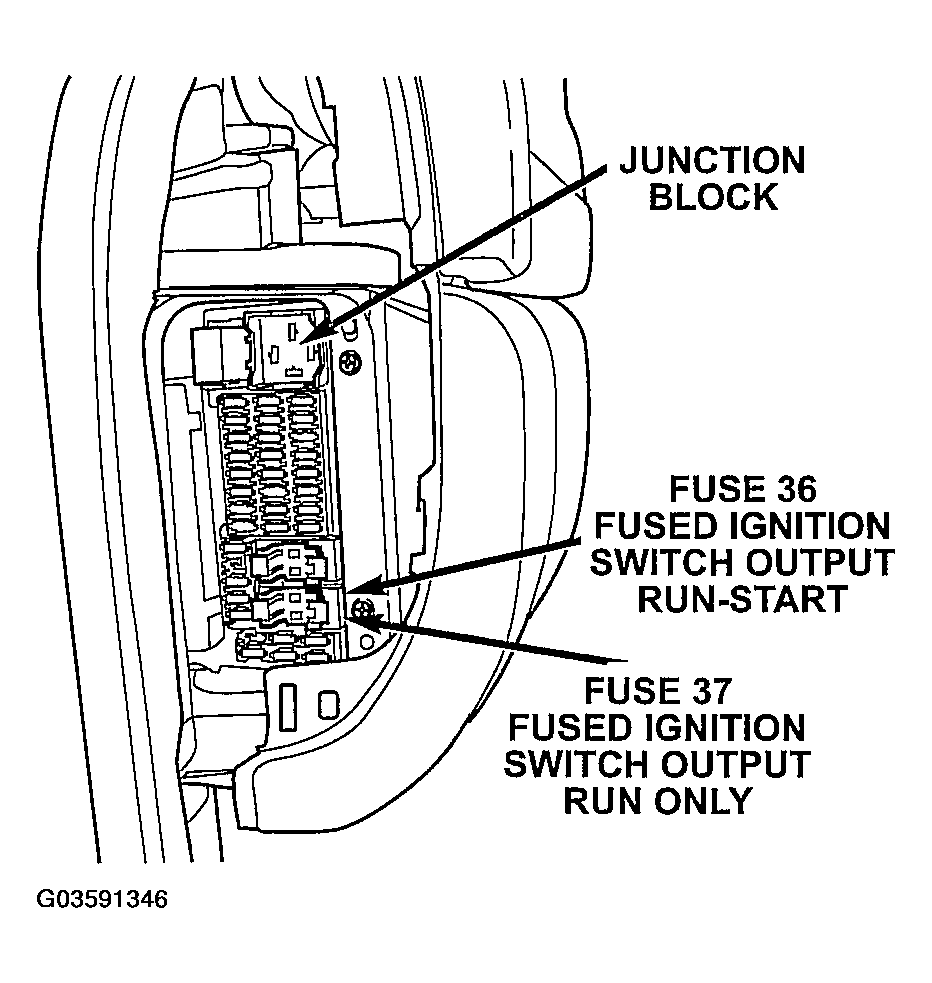

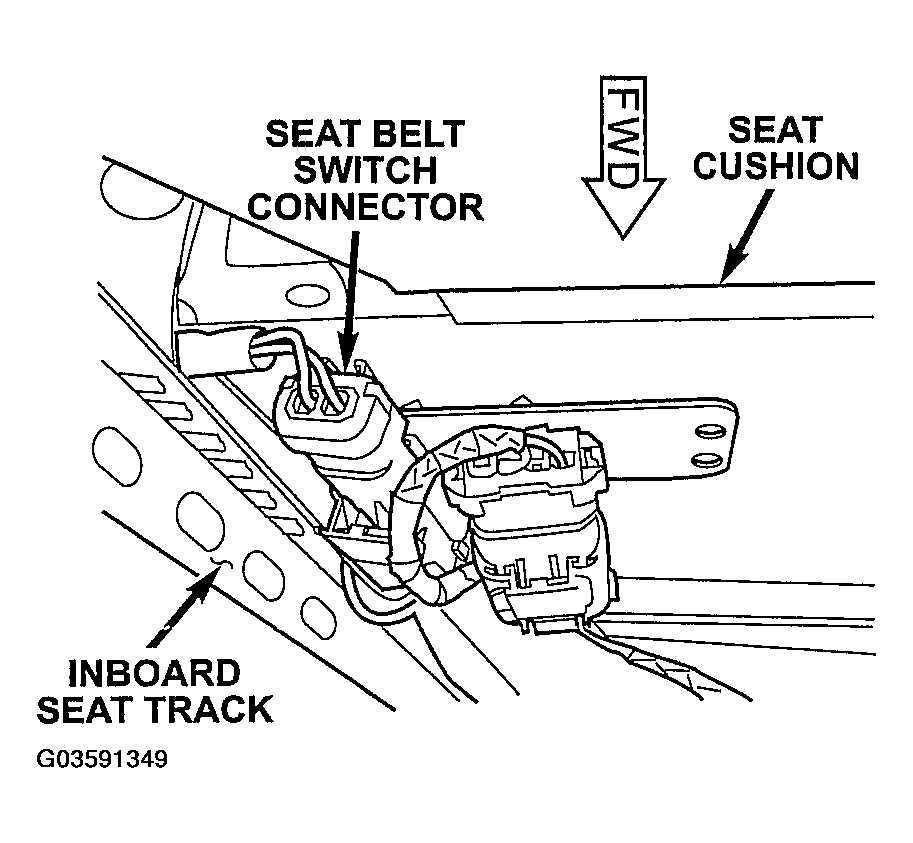

Fig 1: Identifying Location Of Airbag System Components (1 Of 9)

Courtesy of DAIMLERCHRYSLER CORP.

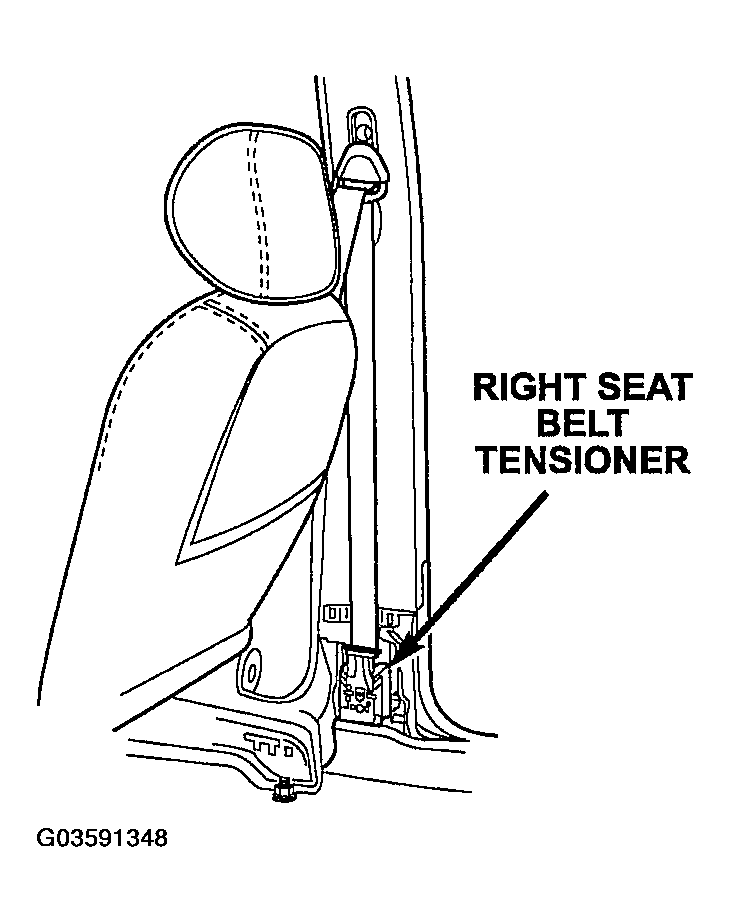

Fig 2: Identifying Location Of Airbag System Components (2 Of 9)

Courtesy of DAIMLERCHRYSLER CORP.

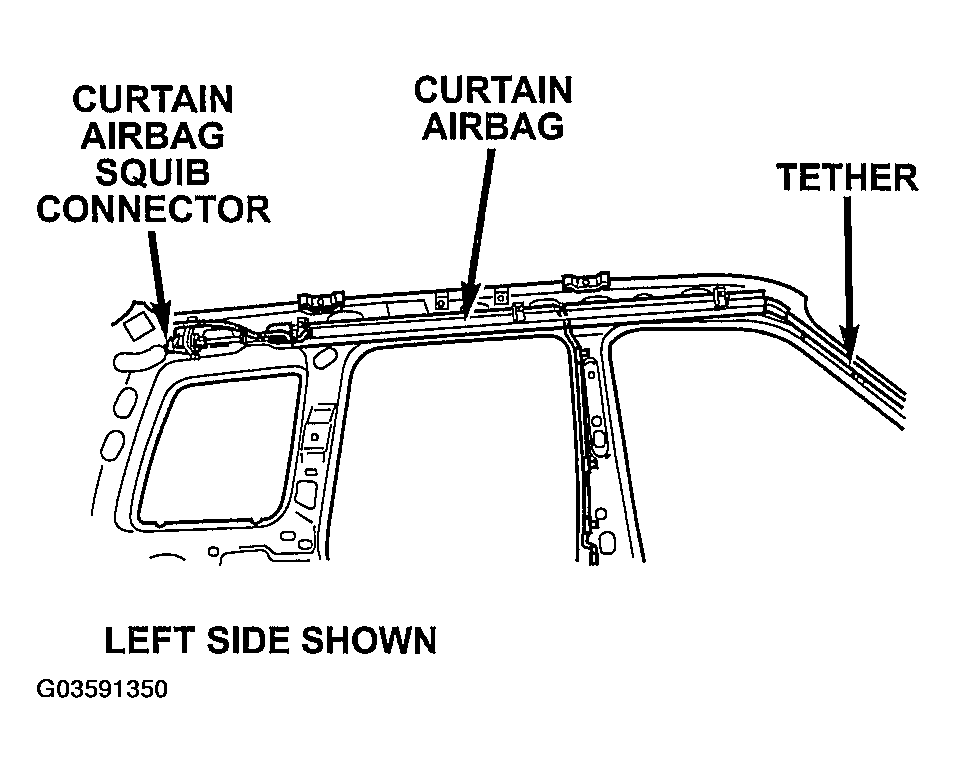

Fig 3: Identifying Location Of Airbag System Components (3 Of 9)

Courtesy of DAIMLERCHRYSLER CORP.

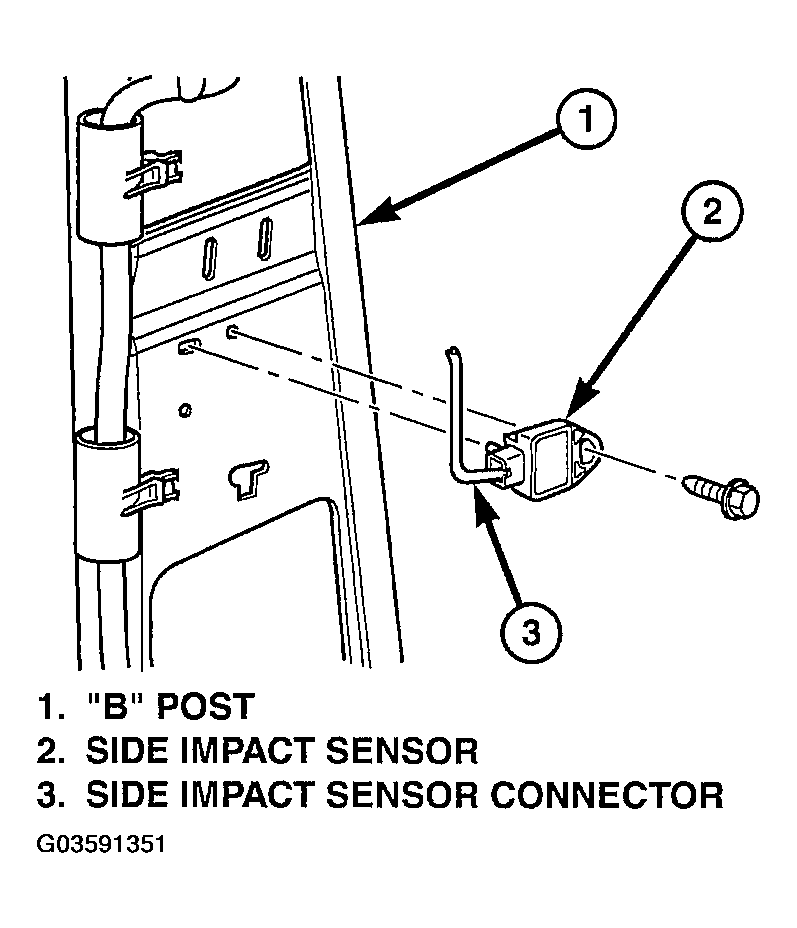

Fig 4: Identifying Location Of Airbag System Components (4 Of 9)

Courtesy of DAIMLERCHRYSLER CORP.

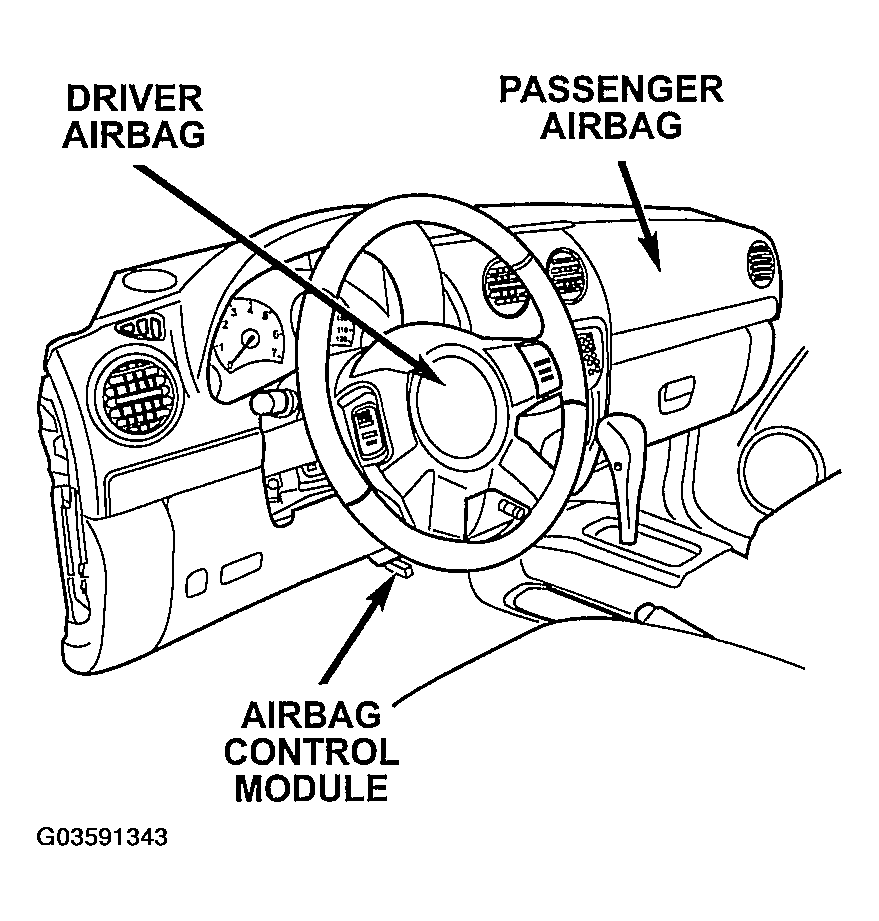

Fig 5: Identifying Location Of Airbag System Components (5 Of 9)

Courtesy of DAIMLERCHRYSLER CORP.

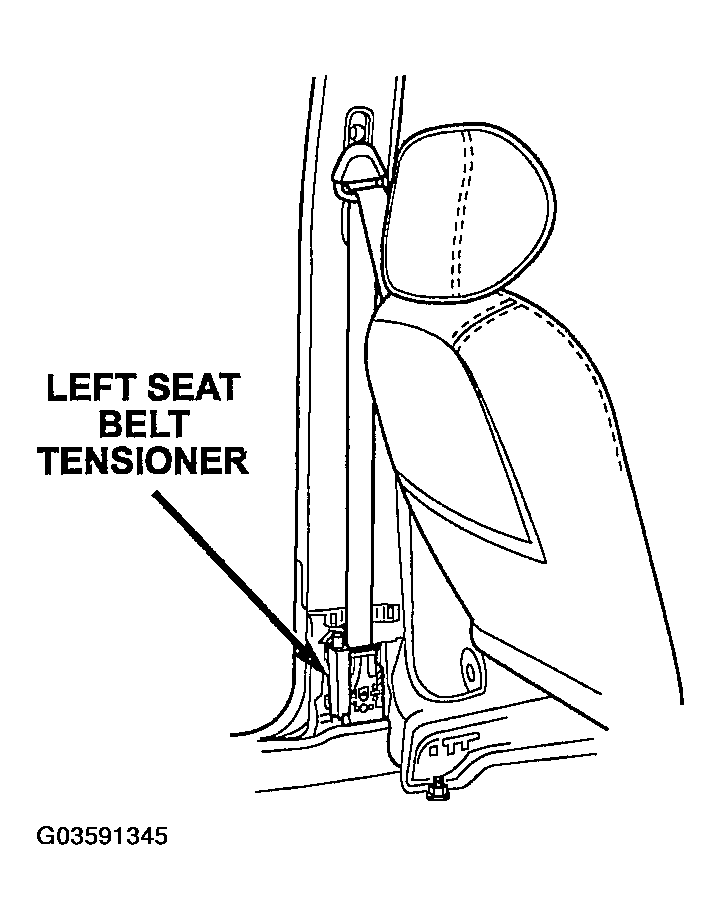

Fig 6: Identifying Location Of Airbag System Components (6 Of 9)

Courtesy of DAIMLERCHRYSLER CORP.

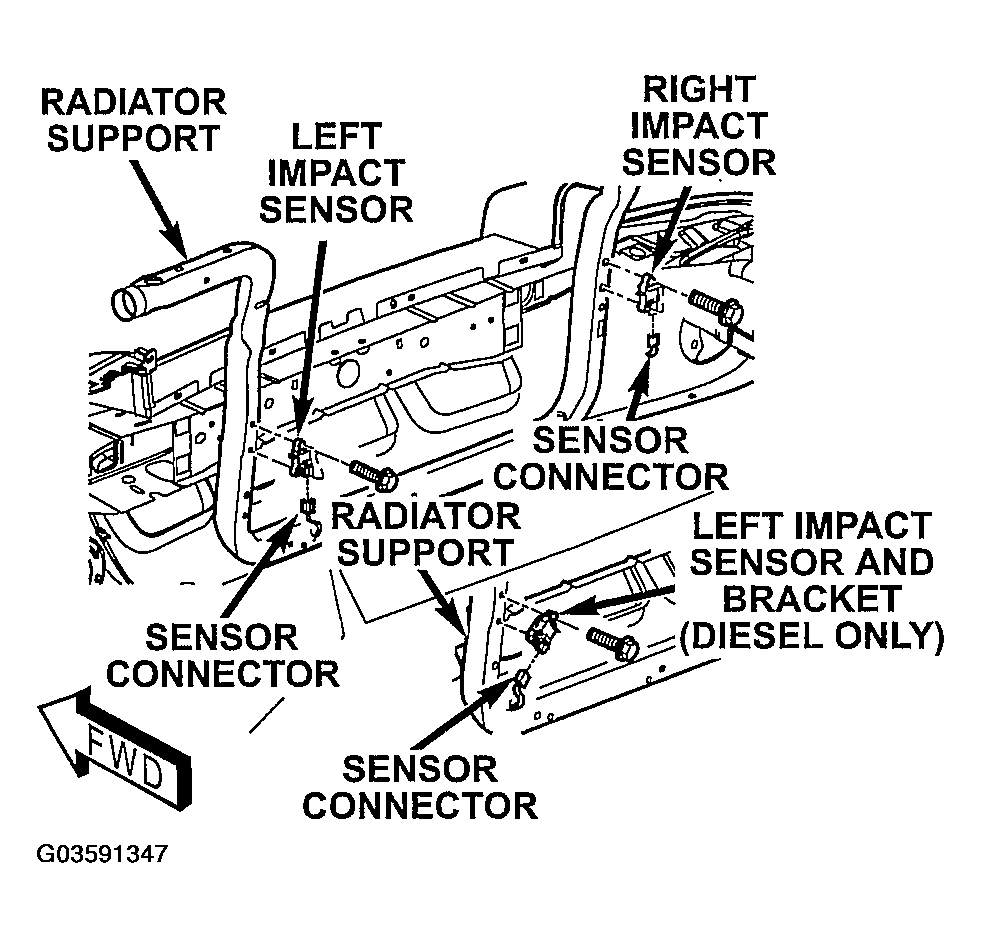

Fig 7: Identifying Location Of Airbag System Components (7 Of 9)

Courtesy of DAIMLERCHRYSLER CORP.

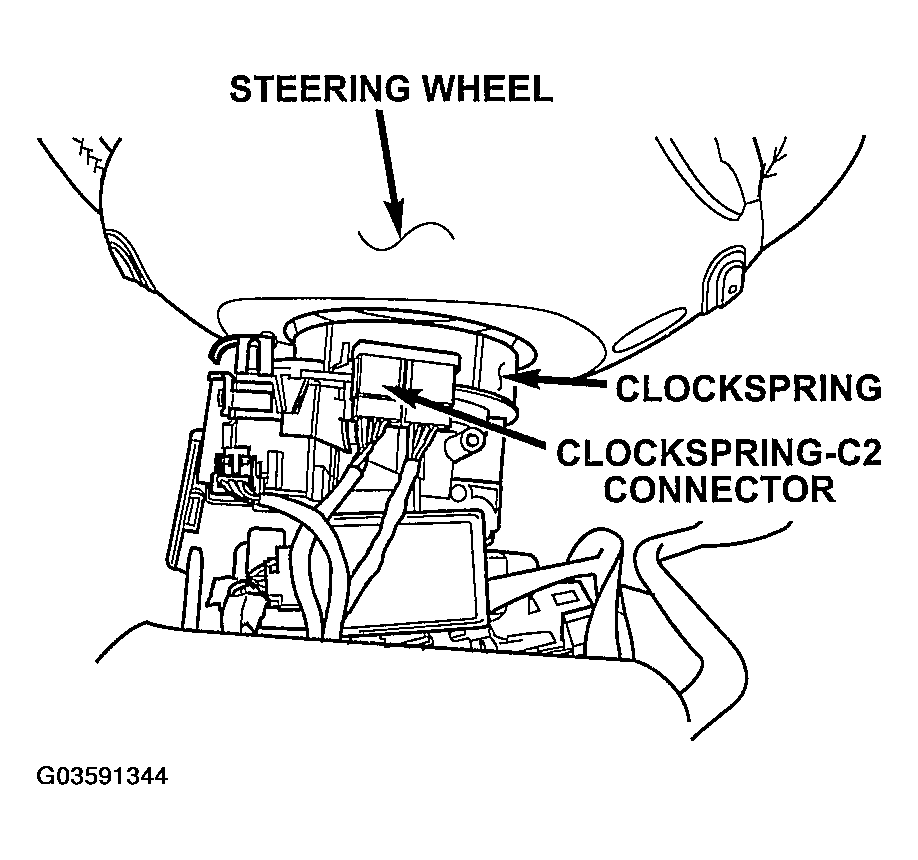

Fig 8: Identifying Location Of Airbag System Components (8 Of 9)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 9: Identifying Location Of Airbag System Components (9 Of 9)

Courtesy of DAIMLERCHRYSLER CORP.
